📄 Showing the "Simple" version — "Advanced" is not ready yet. Add it to favorites to help prioritize it. Ask for the full read

Bricks of different sizes laid in a single wall leave cracks in it. Atoms in superalloys behave much the same way: when two different metals form a common crystal lattice and their atoms differ slightly in size, stress appears inside the material. It accumulates and eventually destroys the alloy when heated.

Scientists studied compounds of ruthenium with other metals: they are considered the basis for future turbines and jet engines. Previously, the thinking was that the key was to make the alloy thermodynamically stable, meaning the atoms would naturally tend to stay in that order. But it turned out that even a very stable ruthenium-hafnium compound cannot withstand heating to the calculated temperature. The reason is that very mismatch in atomic lattice sizes.

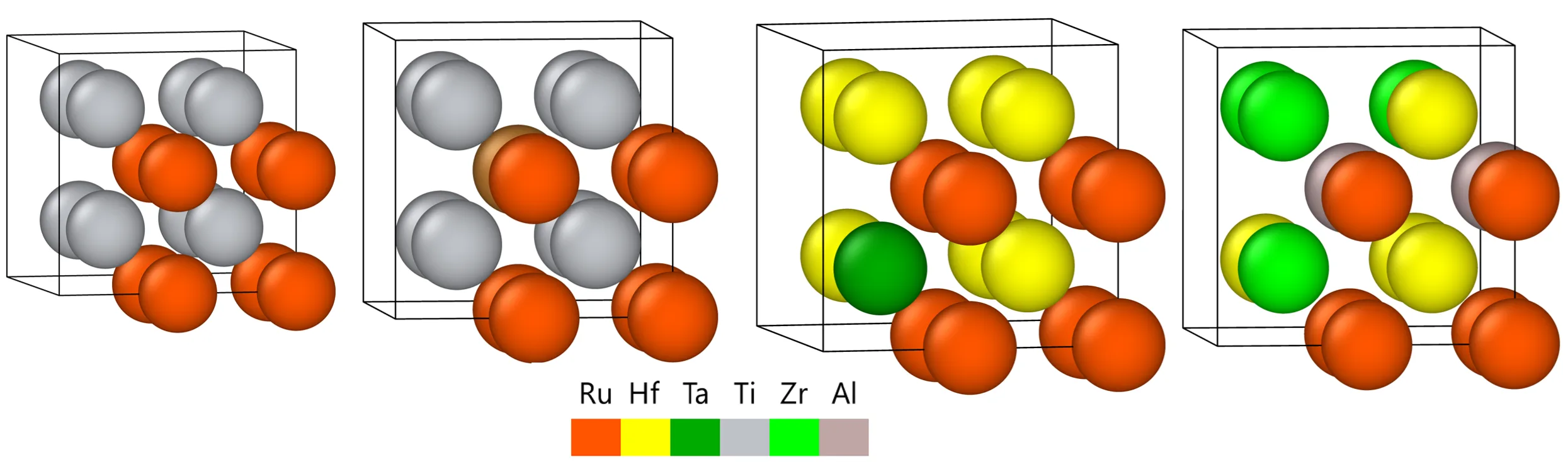

Using computer modeling and machine learning, the scientists derived a simple rule: to remove stress, you need to add a third metal, such as aluminum or titanium. These additives act like shims between bricks of different sizes: they fill the gaps and even out the lattice. Then the alloy becomes like a wall of identical bricks: stress disappears, and the material withstands high temperatures without cracking.

This approach changes the very logic of creating superalloys. Instead of searching for one ideal compound, engineers can now select combinations of three or more metals, precisely calculating which additives will eliminate internal stress. This paves the way for more reliable components in aviation and energy.

Original abstract

as written by the authors arXiv:2601.01326

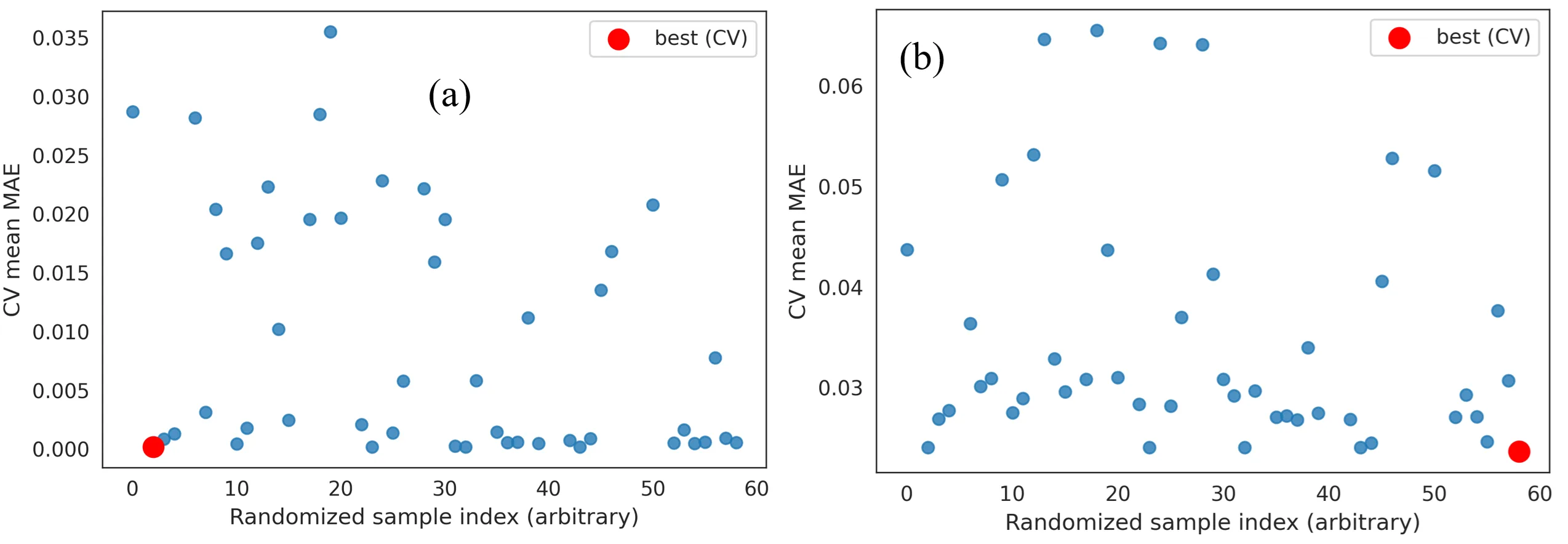

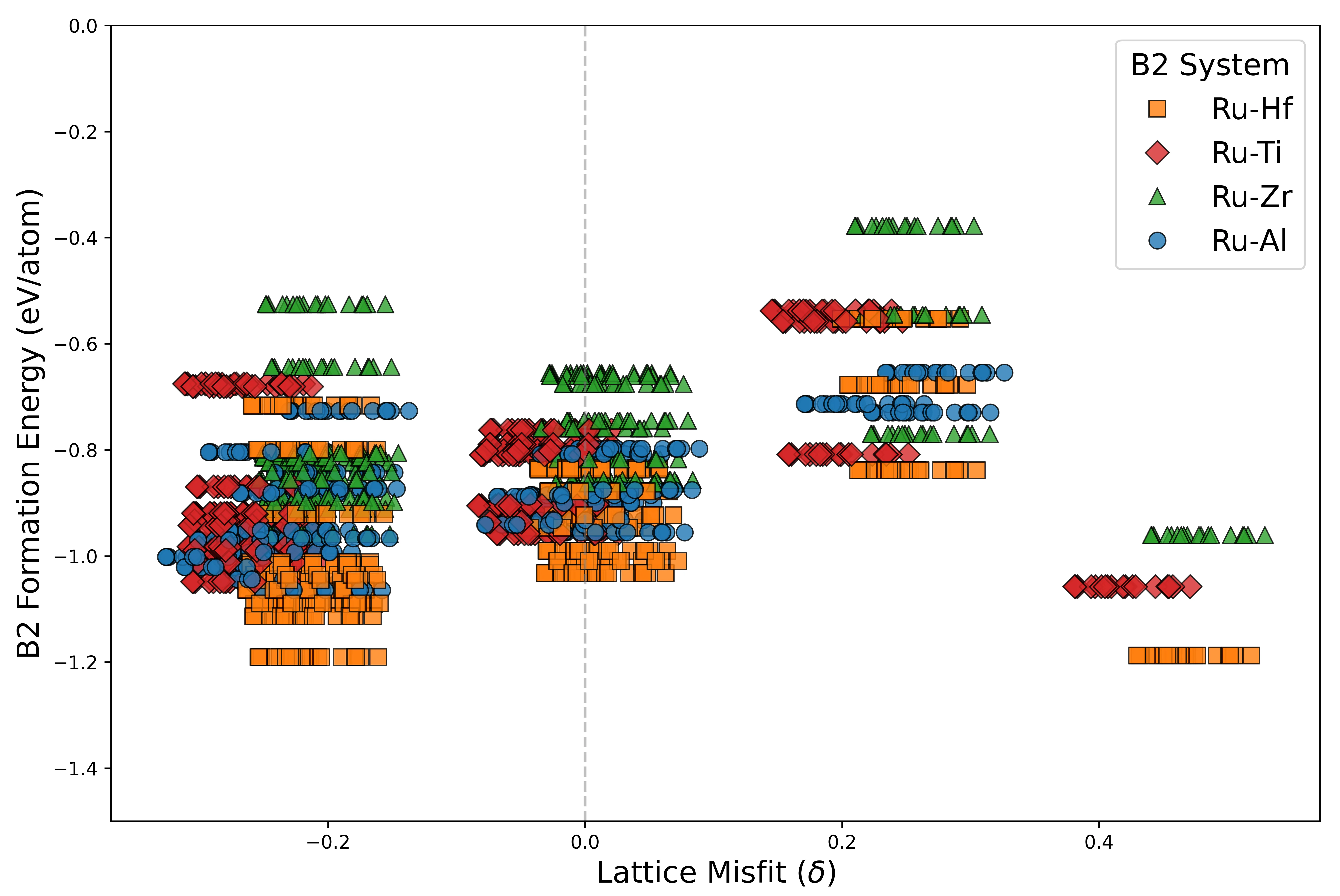

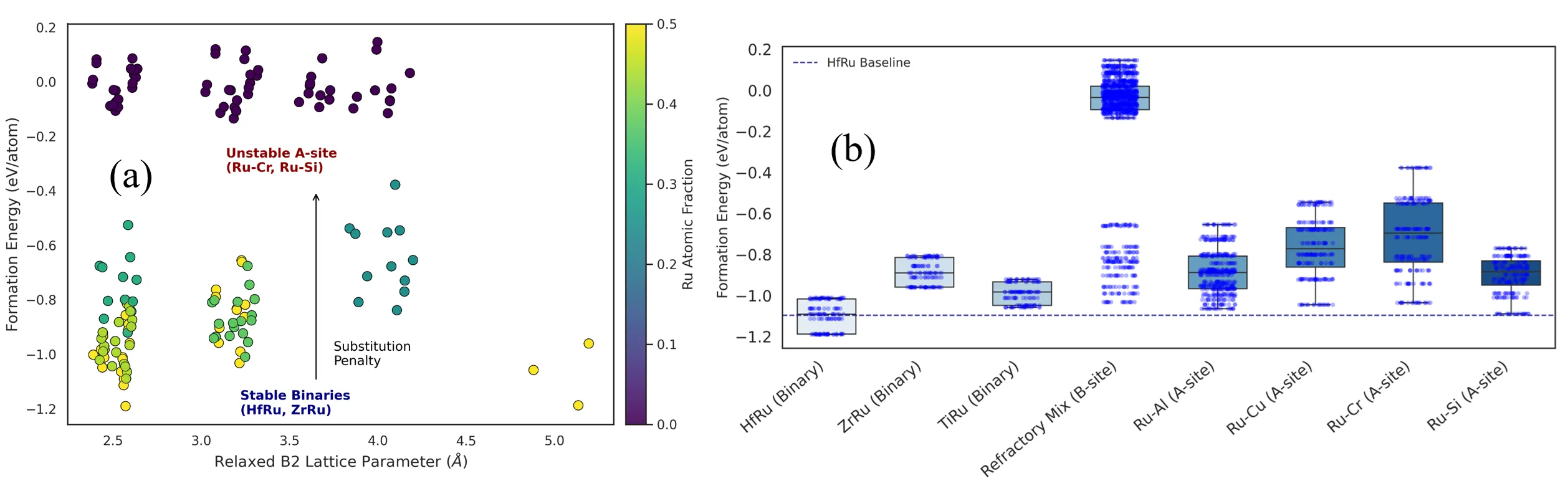

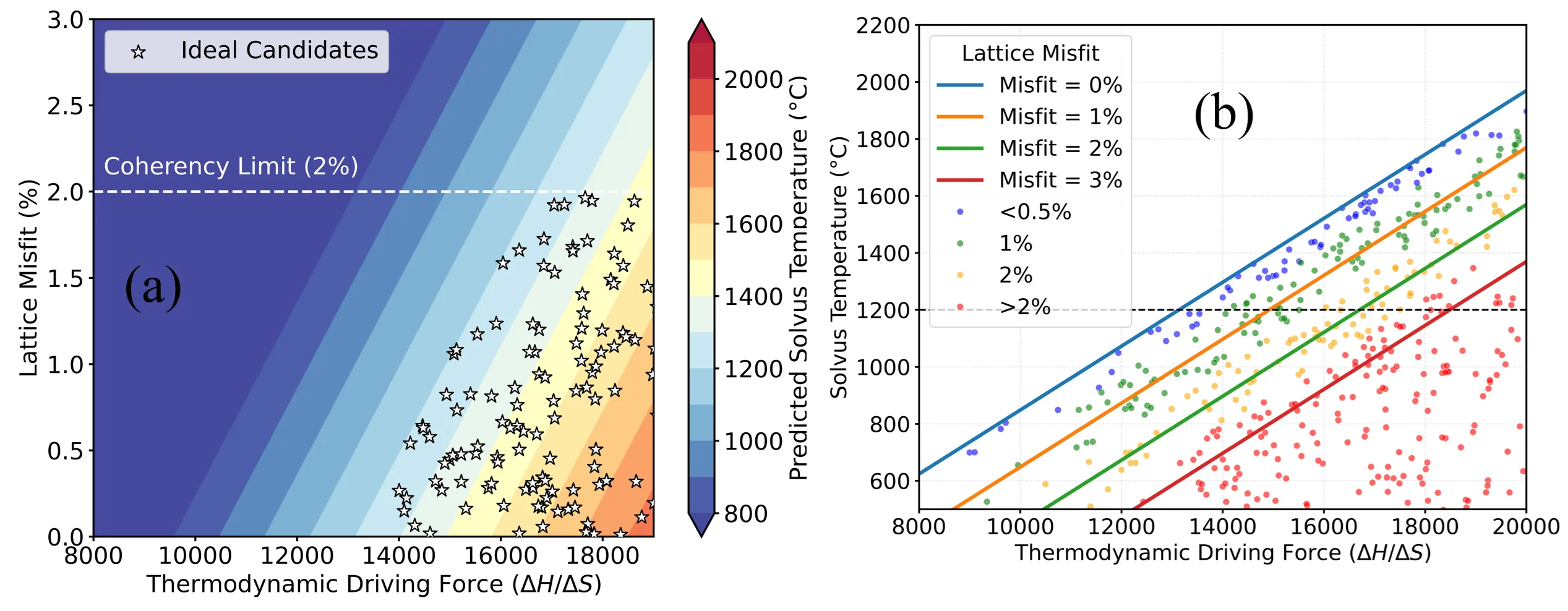

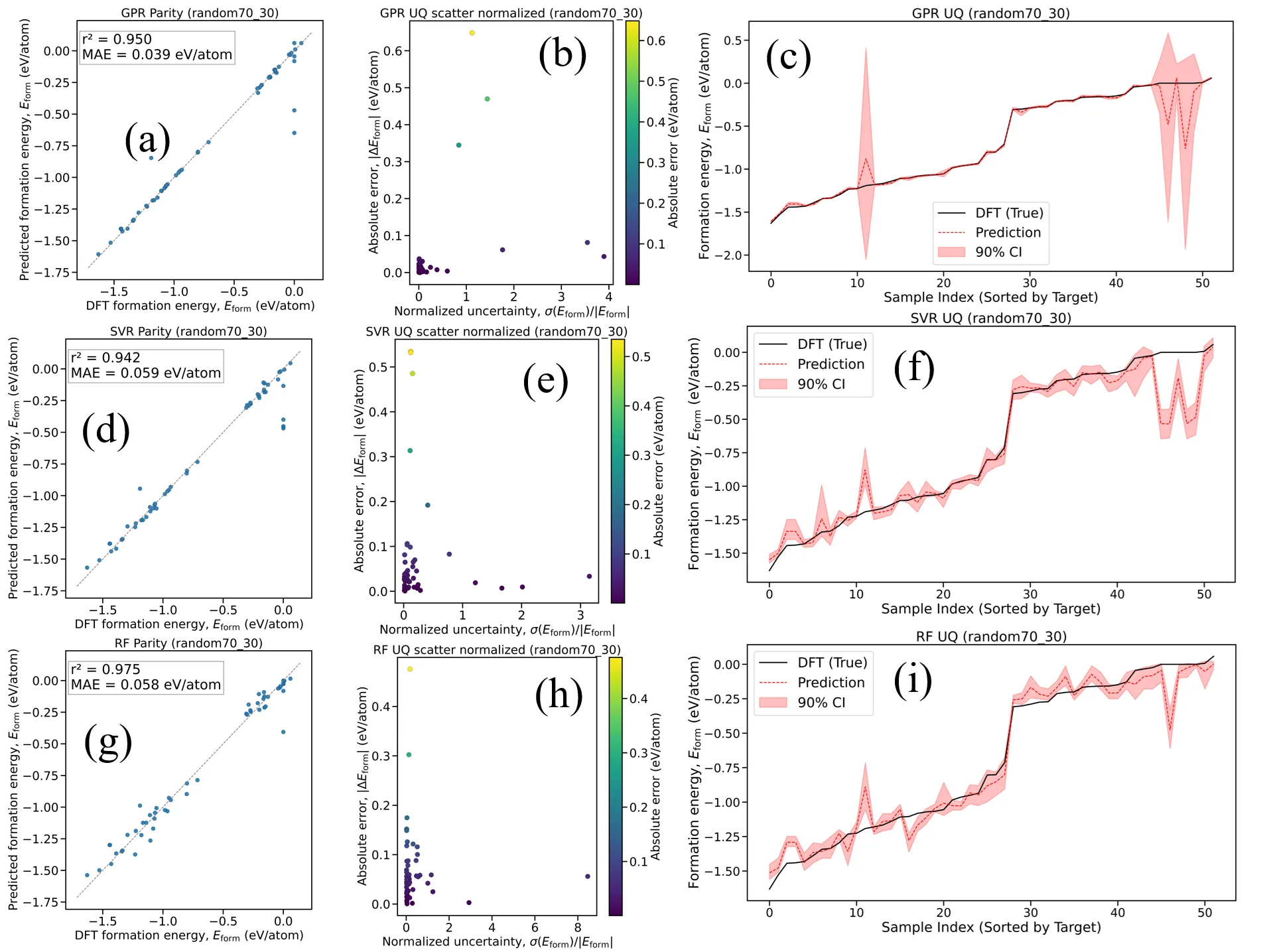

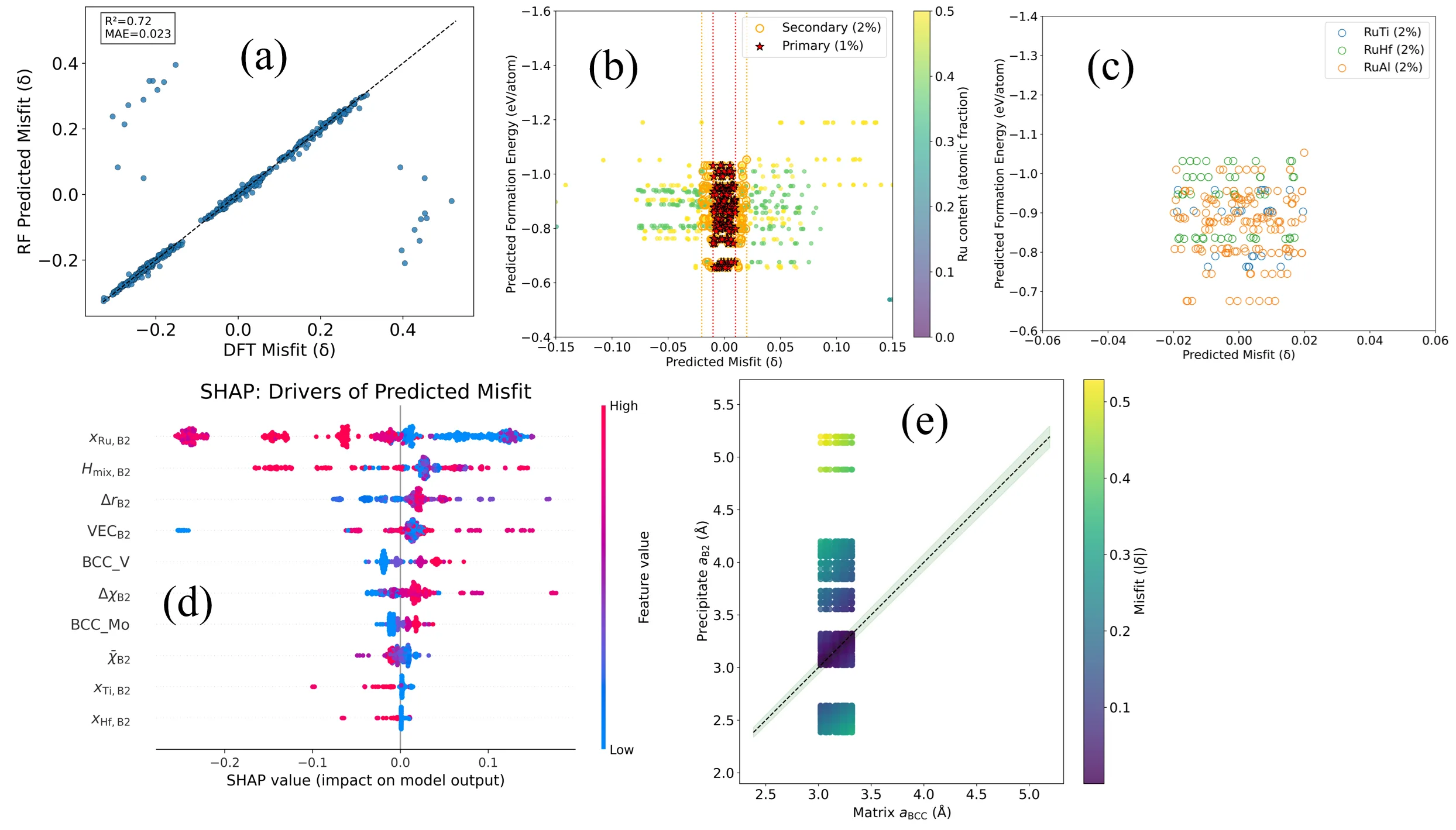

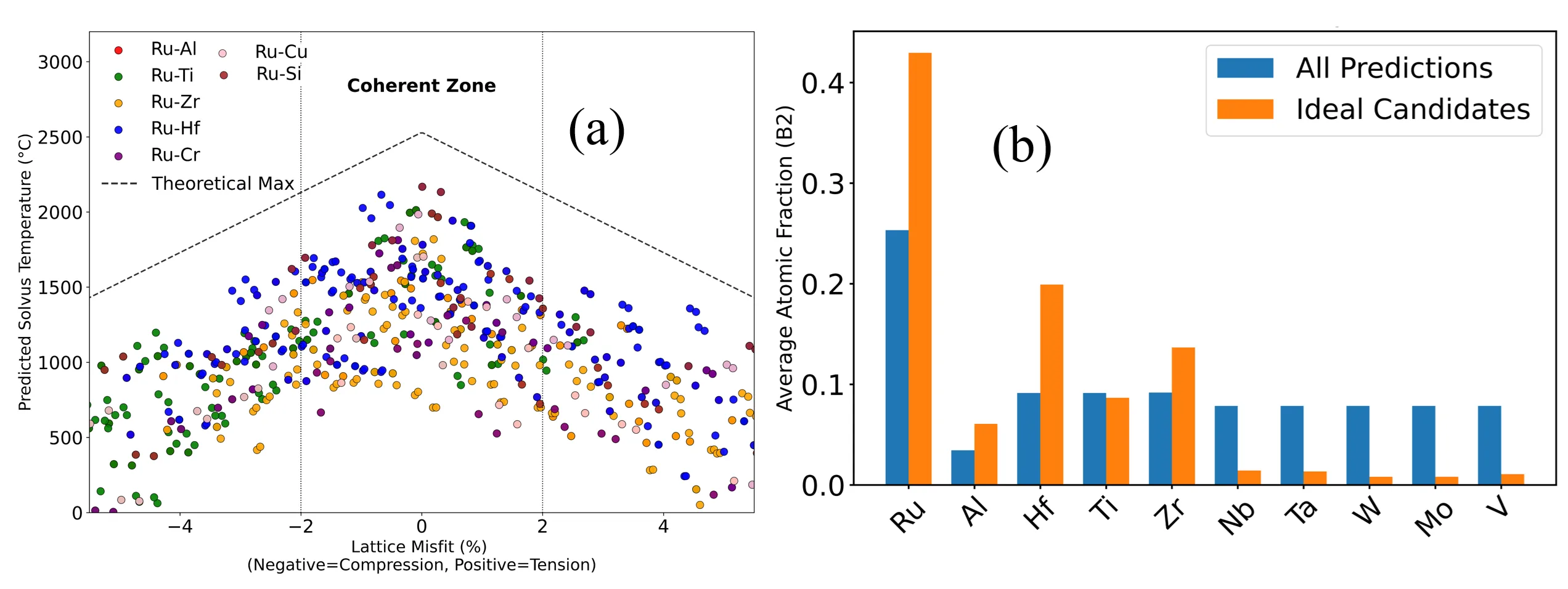

Ruthenium-based B2 intermetallics are promising for refractory superalloys but are limited by the trade-off between high thermodynamic stability and elastic precipitation strain. We present a physics-guided machine learning framework integrating high-throughput Density Functional Theory (DFT), Random Forest screening, and Symbolic Regression to navigate this design space. This approach resolves the paradox where stoichiometric compounds like RuHf fail to achieve theoretical solvus temperatures. By deriving a closed-form physical law, we quantify the strain penalty: a 1% lattice misfit reduces the solvus temperature by approximately 200 degrees C. This finding confirms that maximizing thermodynamic driving force alone is insufficient. We demonstrate that multi-component alloying is structurally necessary, identifying ternary additions such as Al and Ti as essential lattice-tuning agents that zero out the elastic penalty. This framework establishes a rigorous, constraint-based protocol for alloy design, enabling the precise engineering of zero-misfit, high-stability microstructures.
