Tiny Satellite Learns to Navigate by Pulsars express

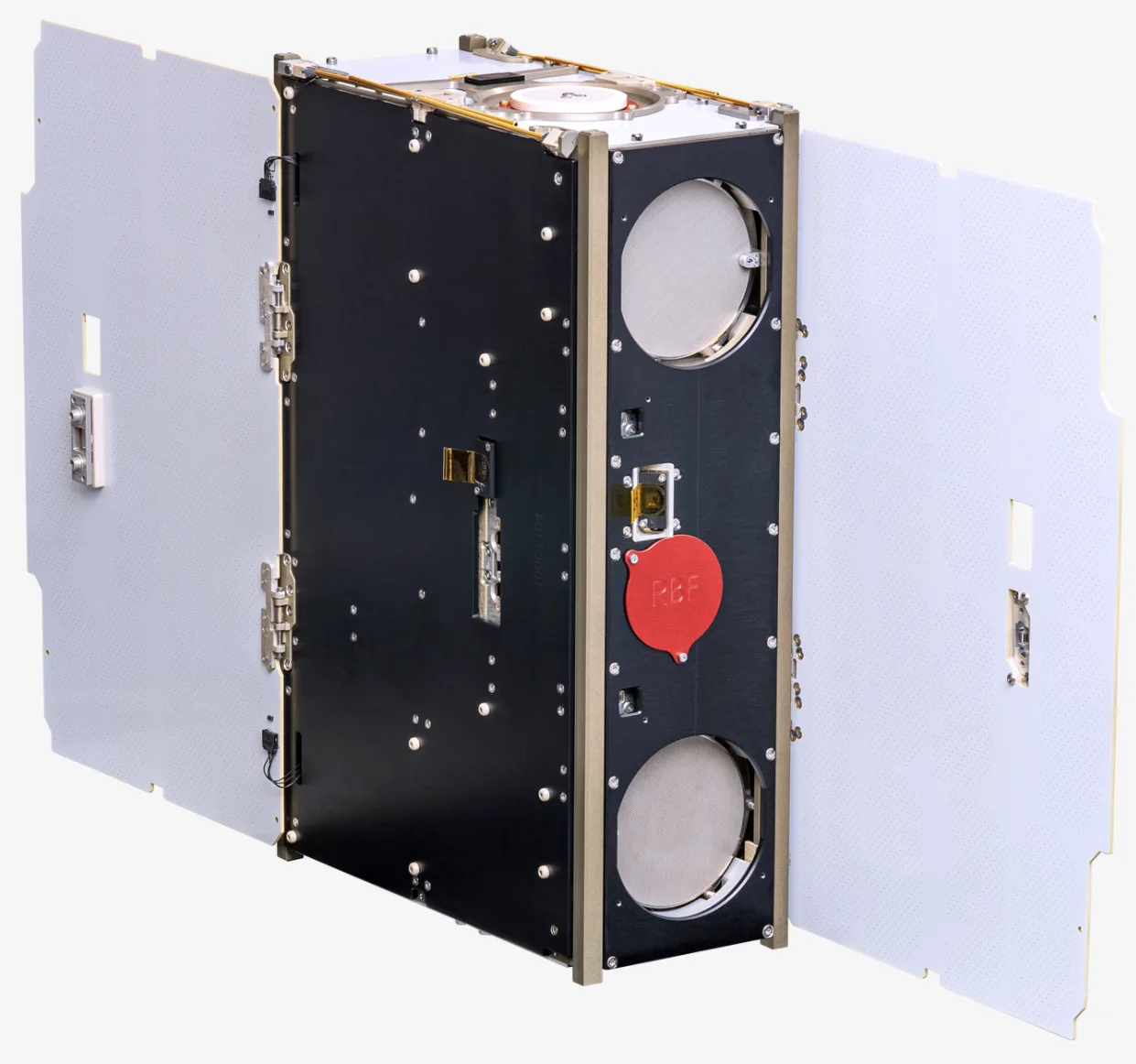

The Crab Nebula flickers with X-ray flashes thirty times per second. That's the beat of a pulsar — a dead star that spins and sends us pulses like a lighthouse. Japan's NinjaSat, a satellite the size of a shoebox, caught these flashes to figure out where it was.
Pulsar navigation is a bit like the old sailor trick of finding longitude by the stars. But instead of stars, you use X-ray pulses, and instead of a sextant, you have two gas counters that register photons with energies up to 50 kiloelectronvolts. The satellite observed the pulsar several times at different times of the year, each time for a few hours. Then the data were sent to Earth and compared with its precise position from satellite navigation.
It turned out that along the direction toward the pulsar, the satellite could determine its position with an error of no more than forty kilometers. In three dimensions, the error ranged from twenty-seven to three hundred seventy kilometers — depending on the angle at which the satellite's orbital plane was tilted relative to the pulsar at the time of observation. In summer the geometry is better, in winter worse — a bit like solar panels on a roof.
This proved for the first time that even a tiny satellite can navigate by pulsars. In the future, such beacons could help spacecraft travel into deep space, where signals from conventional navigation are too weak.
Original abstract
as written by the authors arXiv:2602.14166

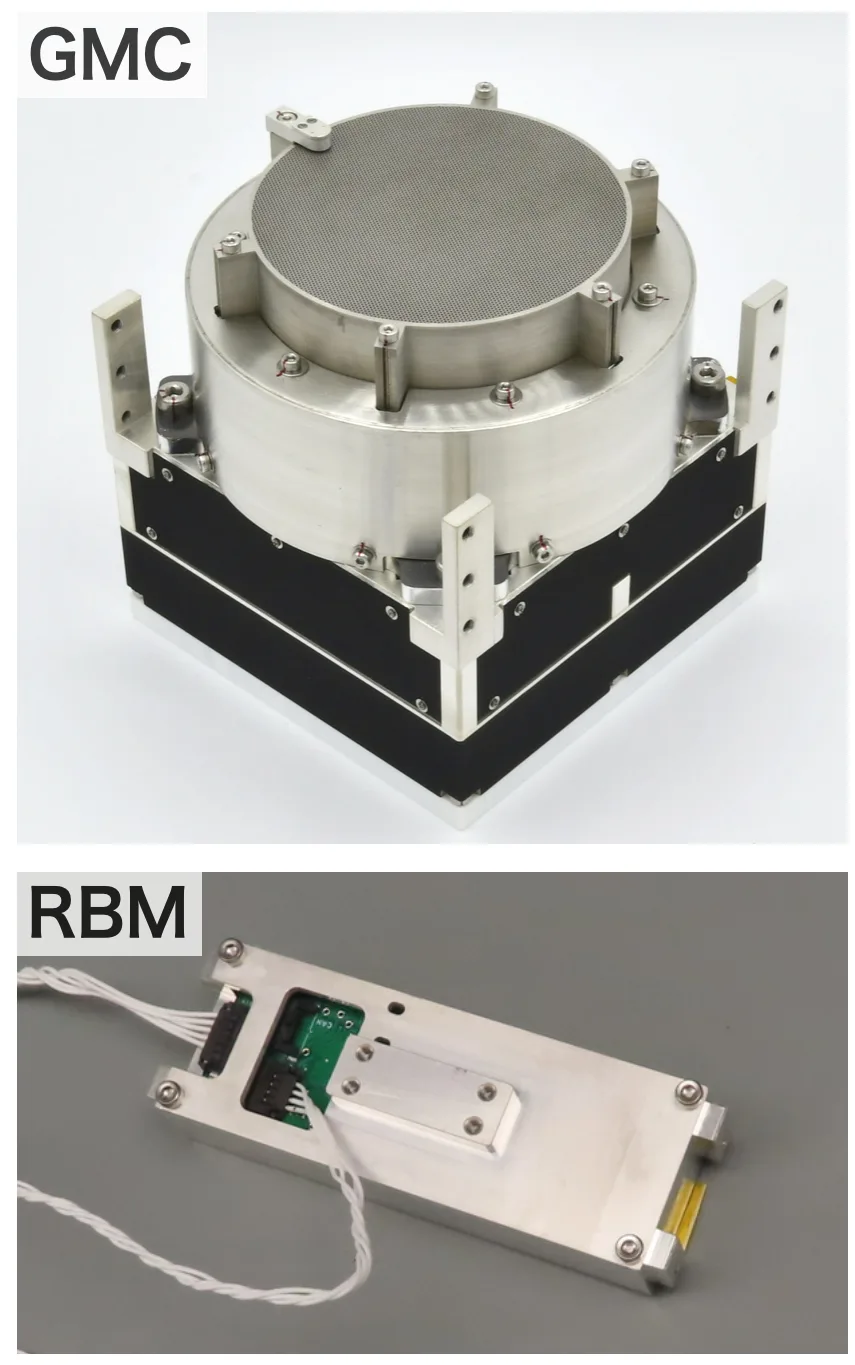

This study demonstrated the pulsar navigation capability of the CubeSat X-ray observatory NinjaSat, which is equipped with two Gas Multiplier Counters (GMCs). The GMCs are sensitive to the 2-50 keV energy band and have an effective area of 16 cm^2 per module at 6 keV. We verified the timing accuracy by observing the Crab Pulsar and confirmed stable timing performance within 100 microseconds. To demonstrate pulsar navigation, we applied a method that optimizes orbital parameters to maximize the significance of the pulsar X-ray pulse profile, known as the Significance Enhancement of Pulse-profile with Orbit-dynamics (SEPO) method. We observed the Crab Pulsar with a total exposure of approximately 100 ks at different epochs and analyzed the data transmitted to the ground. By comparing the optimized orbit with the satellite position derived from Global Positioning System data, we quantitatively evaluated the navigation performance. The results show that the position component along the Crab line of sight was consistently constrained within approximately 40 km, and the three-dimensional position error ranged from 27 to 370 km depending on the observation epoch. These results demonstrate the feasibility of applying a CubeSat-class X-ray observatory to pulsar navigation and provide the first experimental verification that the accuracy of the SEPO method depends on the seasonal geometry between the orbital plane and the pulsar direction.
The pulsar in the Crab Nebula spins 30 times per second — faster than the blades of a kitchen blender.
In the series Star Trek, starships use pulsars as galactic beacons — now that's becoming a reality even for small satellites.
