Wing vs. Gust: Twin Vortices express

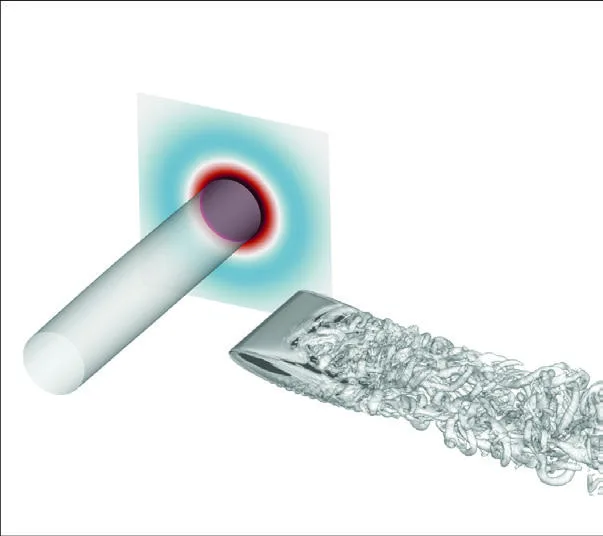

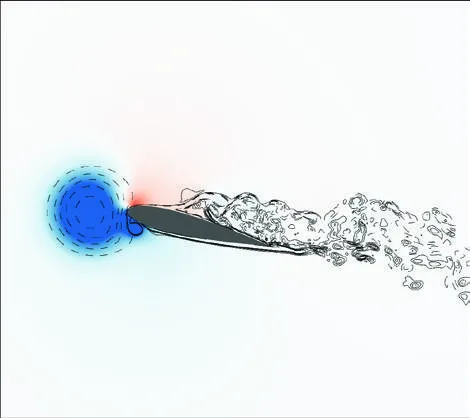

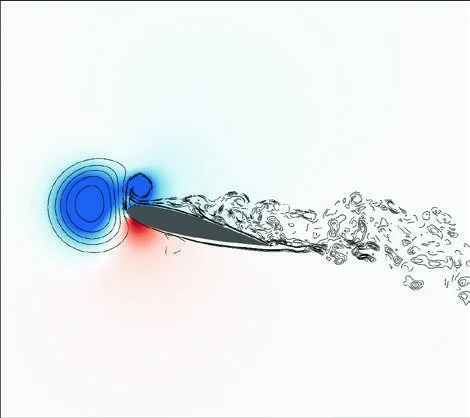

A sudden gust hits a wing, and a huge vortex swirls above it. Such a vortex can abruptly change lift, making the plane's nose dip. Engineers have long sought ways to predict these vortices, but complexity gets in the way: fast airflow is full of small chaotic eddies.

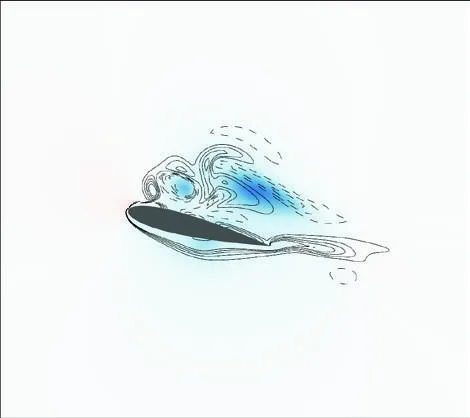

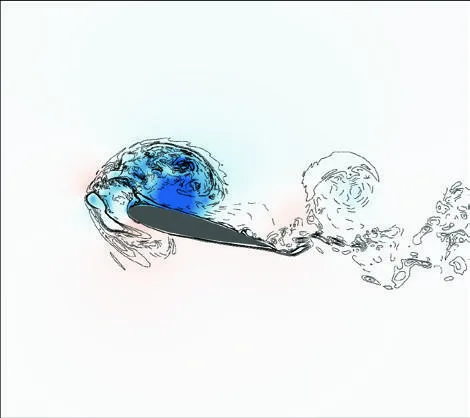

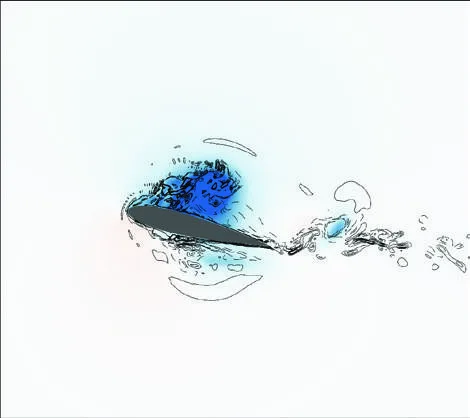

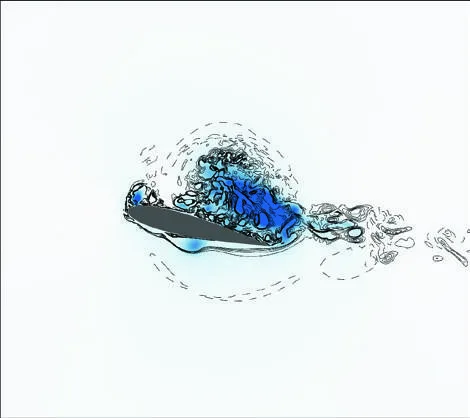

In the new study, two flows were compared: a very slow one (Reynolds number 600) and a fast one (10,000). The Reynolds number indicates how prone a flow is to turbulence — the higher it is, the more small vortices. It turned out that the large vortex cores, which create dangerous lift fluctuations, are arranged identically in both cases. The small ripples in fast flow do not change the overall picture.

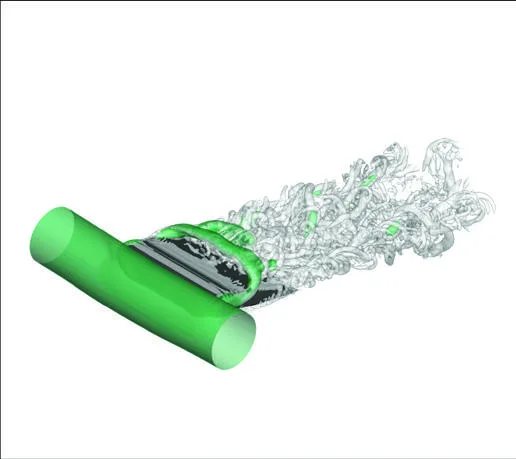

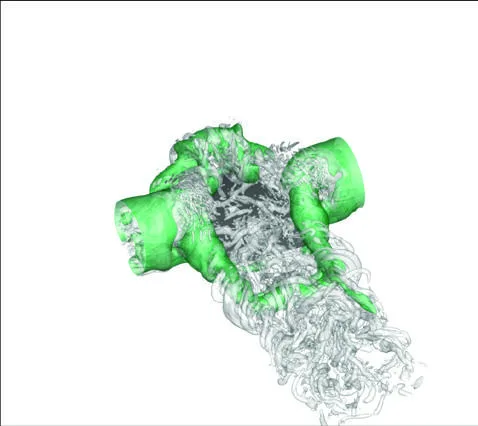

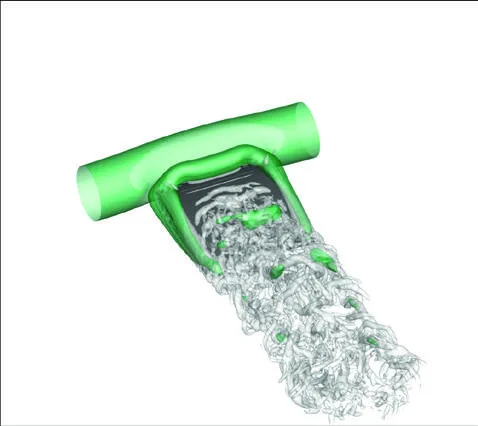

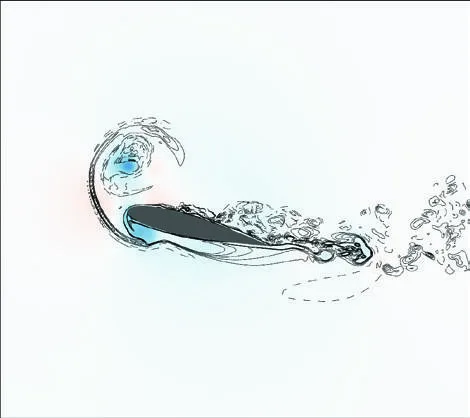

The secret is that a gust tears a powerful sheet of vorticity off the wing's surface, as if unwinding an invisible veil from it. This veil rolls up into large vortices in the same way in both slow and fast flow. Therefore, to study dangerous gusts, one can use cheap slow experiments and avoid expensive high-speed wind tunnels.
Large vortices are like the skeleton of the flow. Small eddies are just the skin, which trembles but does not change the shape of the bones. If we learn to see this skeleton in advance, aircraft will be able to pass through turbulent zones more smoothly.
Original abstract
as written by the authors arXiv:2603.02472

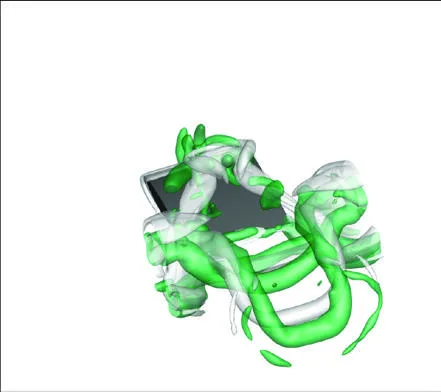

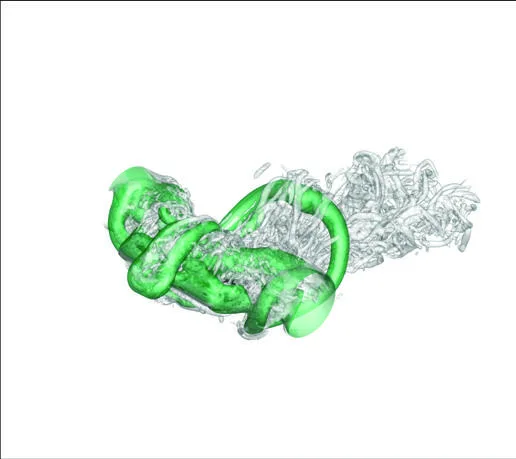

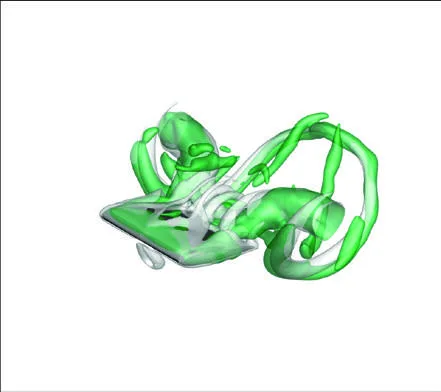

This study uncovers a striking similarity between massively separated laminar and turbulent flows that develop over a square wing during extreme vortex gust encounters. The evolving large-scale, vortical core structures responsible for significant transient lift variations exhibit remarkable similarity across Re = 600 and 10,000. The formation of these structures is attributed to a substantial gust-induced vorticity flux produced at the wing surface, resulting in shared large-scale topological features between the low- and high-Reynolds-number flows. Although fine-scale vortical structures quickly emerge in the Re = 10,000 case, the large-scale structures identified by scale decomposition of the turbulent flow resemble those observed at Re = 600. These findings suggest that large-scale vortical features present in laminar extreme aerodynamic flows provide key insights into their higher Reynolds number counterparts, potentially reducing the complexity of flow modeling and control for extreme aerodynamics.
A Reynolds number of 600 corresponds to a flow of about half a meter per second over a small wing, while 10,000 is already tens of meters per second, like a real aircraft.
