Nitrogen Strengthens Alloy Without Sacrificing Flexibility express
Metal is like a rope made of many strands: pull too hard and it snaps. Engineers have long sought a way to make it both strong and flexible at the same time. Typically, additives that increase strength make the metal brittle. But a team of materials scientists found a loophole: they added a small amount of nitrogen to the CrMnFeCoNi alloy, just one atom in a hundred, and got an unexpected result.
Nitrogen is the gas we breathe, but inside a metal it acts like tiny struts. These struts force atoms to arrange in a special order, forming ordered regions a few nanometers in size. When the metal is pulled, these regions hinder atomic layers from sliding past each other, so the material resists deformation. Meanwhile, thin defects, so-called stacking faults, form inside and act as shock absorbers: they absorb energy and prevent cracks from propagating.

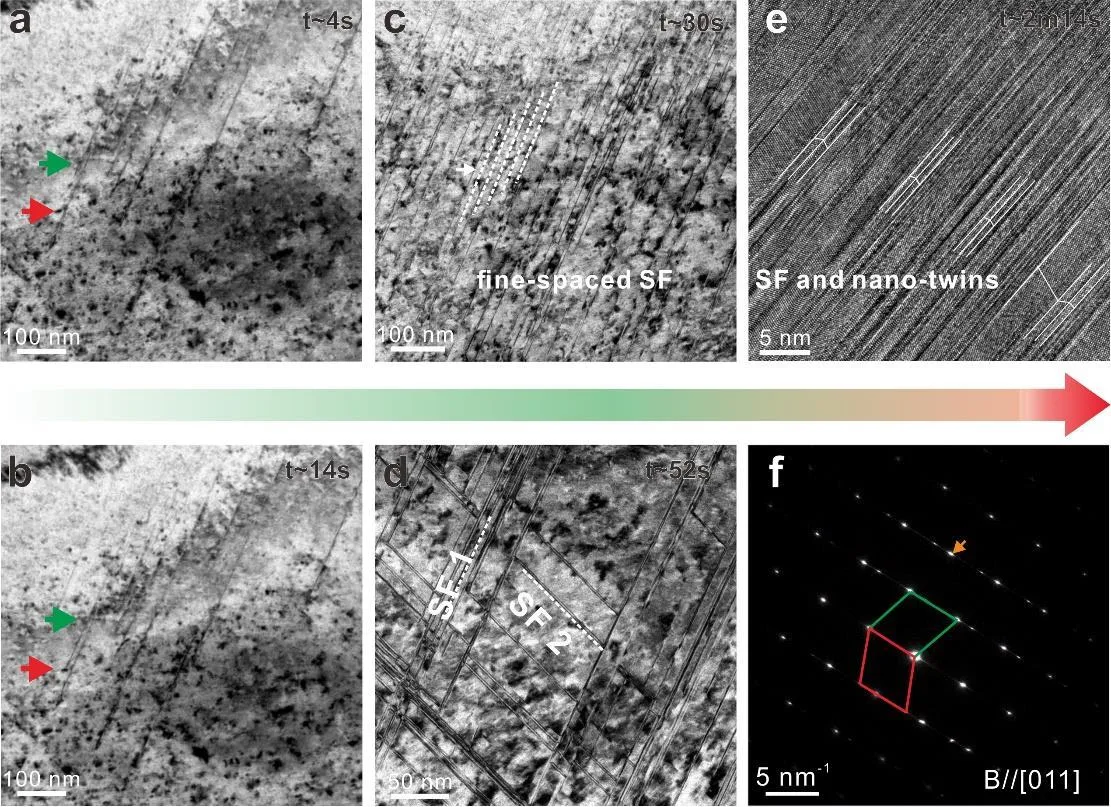

Microscopic tests showed that deformation occurs in two stages. First, the ordered regions resist the movement of dislocations, defects in the crystal lattice, and then they themselves break down, activating a second mechanism: twinning. Twins are mirror-image regions of the crystal that also hinder fracture. This two-step defense gives the alloy its unique combination of properties.
The discovery not only explains how nitrogen improves the metal but also suggests a new recipe for engineers: slightly increase the stacking fault energy and control the ordered structures. Soon, such alloys might appear in aircraft parts, cars, and medical implants — anywhere that requires both strength and reliability.
Original abstract
as written by the authors arXiv:2602.09693

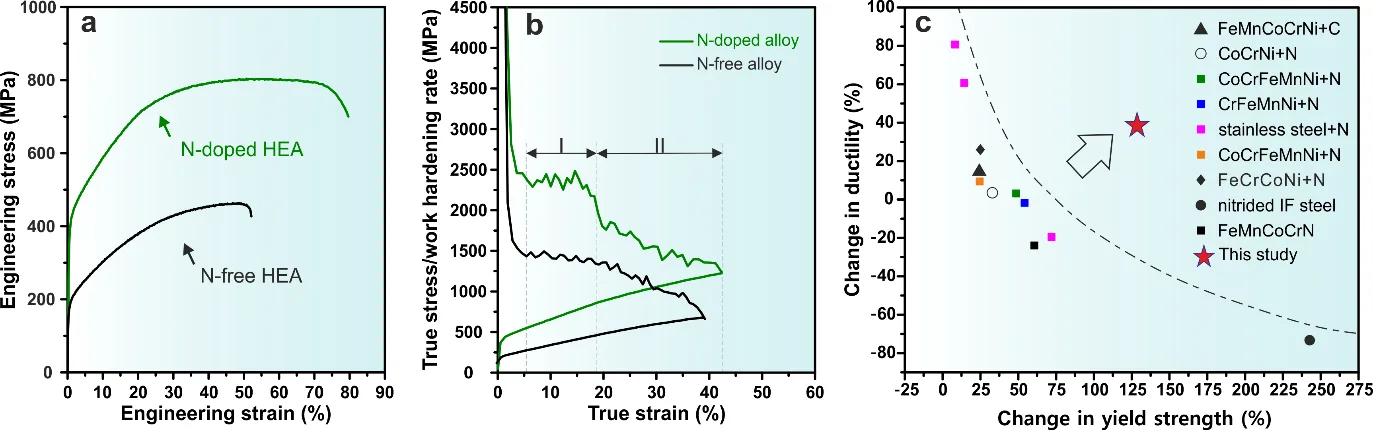

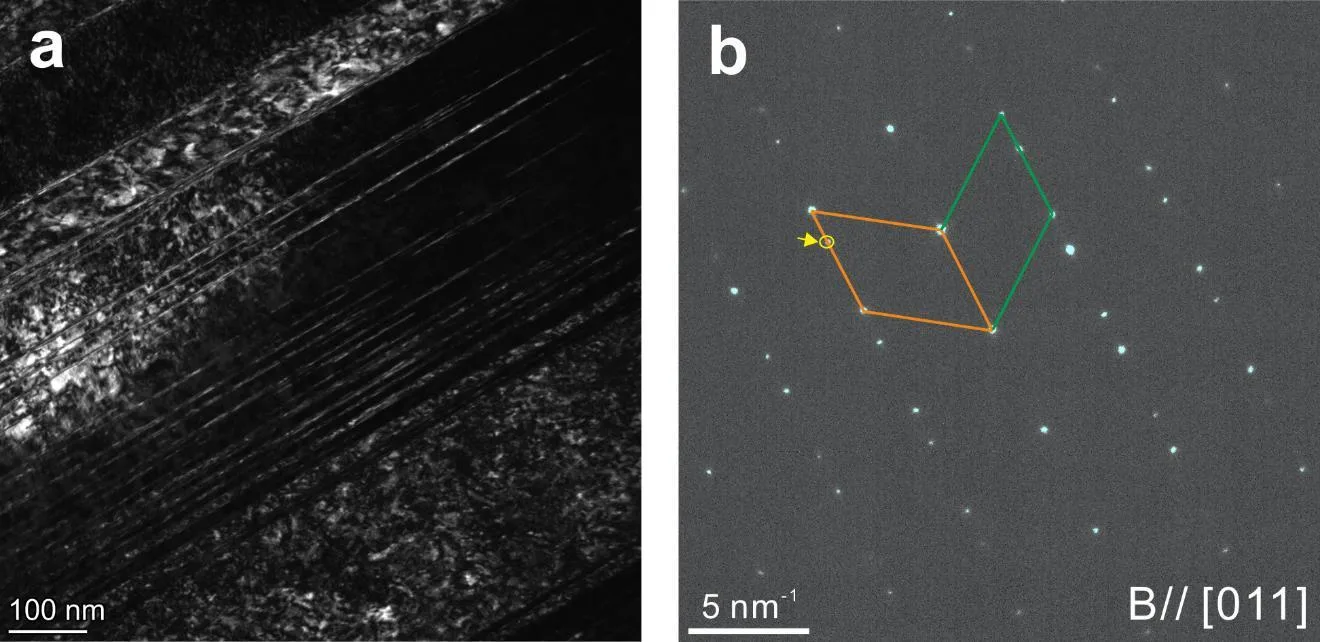

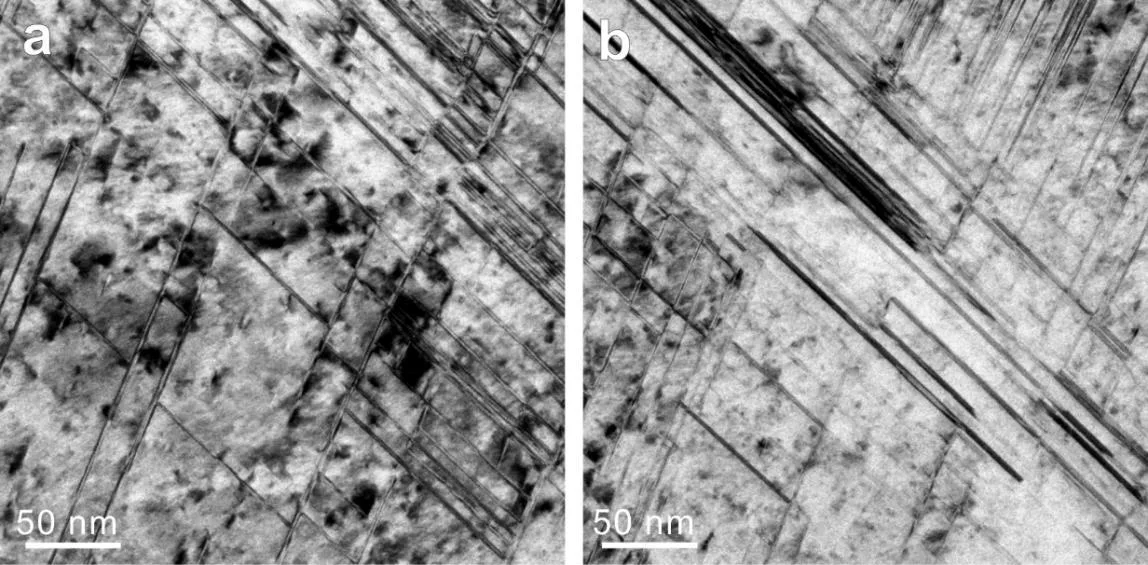

As one of the most abundant interstitial elements, nitrogen (N) is effective in improving yield strength of metallic materials, due to interstitial solid solution strengthening. Doping N can substantially enhance the yield strength but often leads to a decreased ductility, revealing a strength-ductility trade-off phenomenon. Here, we simultaneously enhance the strength and ductility in a non-equiatomic CrMnFeCoNi high-entropy alloy via N alloying and unravel the underlying microscopic mechanisms. The N-doped alloy (1 at.% N) shows an excellent combination of higher yield strength (104% increase) and larger ductility (38% increase), with a two-stage strain hardening behavior, compared to the N-free alloy. Detailed transmission electron microscopy (TEM) analysis reveals that N-doping introduces short-range order (SRO) domains within the microstructure, leads to pronounced planar slip, and promotes the formation of nano-spaced (6-15 nm) stacking faults and deformation twins. Continuous generation and interaction of the fine-spaced SFs act as a strong barrier for dislocation movement and provide ample room for dislocation storage. The interaction of SRO with dislocations and the evolution of SFs ascribe to the first strain hardening stage, and the disordering of the SRO along with the activation of deformation twins are attributed to the second strain hardening stage. Our work shows that N-doping is effective in simultaneously improving the strength-ductility synergy and provides novel insights into alloy design with slightly elevating the SFE, and manipulating the ordered structure within the HEA.
Nitrogen makes up 78% of the air we breathe, but in metal it occupies spaces between atoms and alters material properties more than many expensive alloying elements.
