A Thin Film Takes the Hit express
A film as thin as a spider's web, made of five metals, took the hit from a laser. Inside, the pressure soared to 55 gigapascals — imagine a hundred elephants balanced on your thumbnail. The alloy withstood it, compressing for a fraction of a nanosecond without breaking.
The scientists tracked this with an X-ray flash lasting seven femtoseconds. For comparison, in one femtosecond, light travels a distance a hundred times thinner than a human hair. The flash managed to 'photograph' how the atoms in the alloy compressed by five percent.
Such experiments help predict how a material will behave under impact or explosion. An alloy of five metals that doesn't shatter under monstrous pressure could find use in shielding spacecraft or in reactors.
Original abstract
as written by the authors arXiv:2603.21076

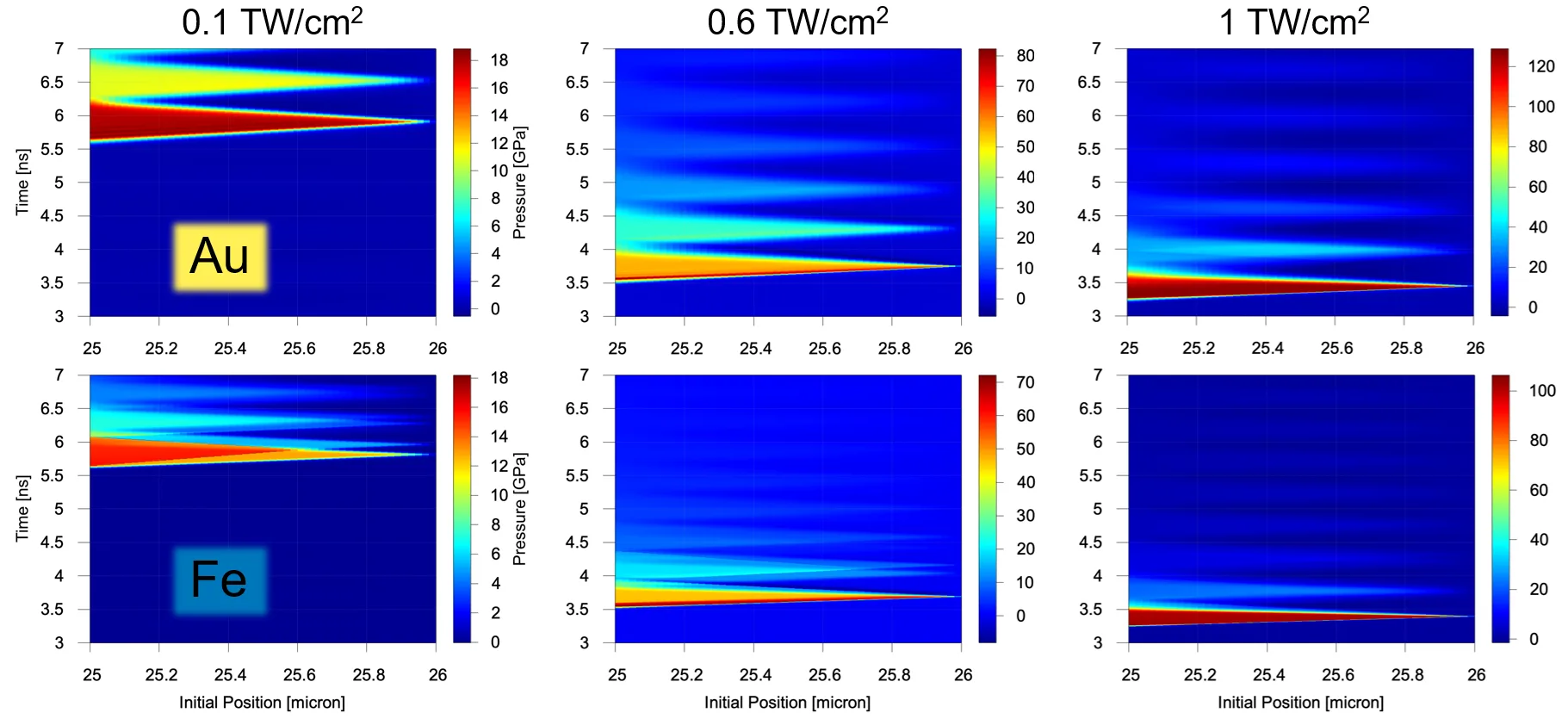

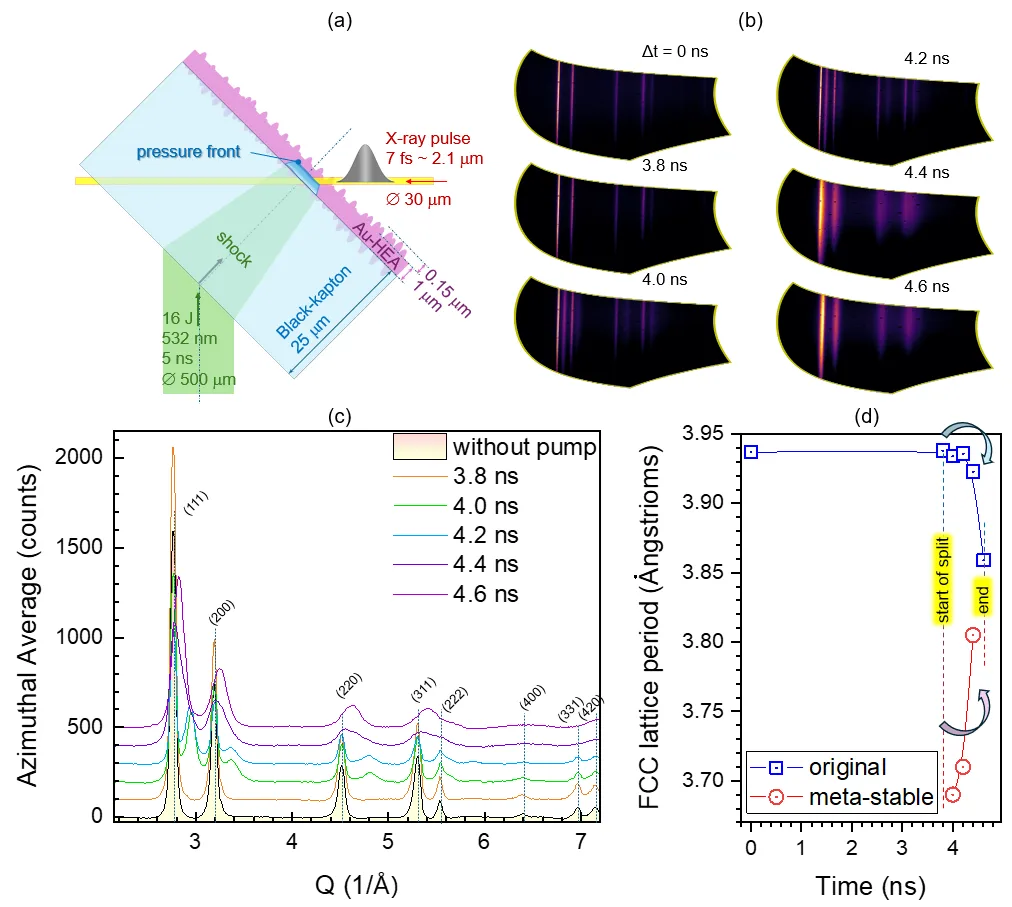

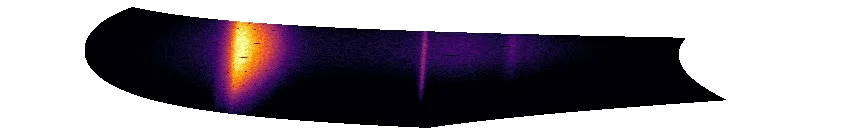

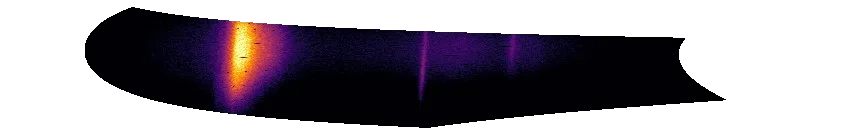

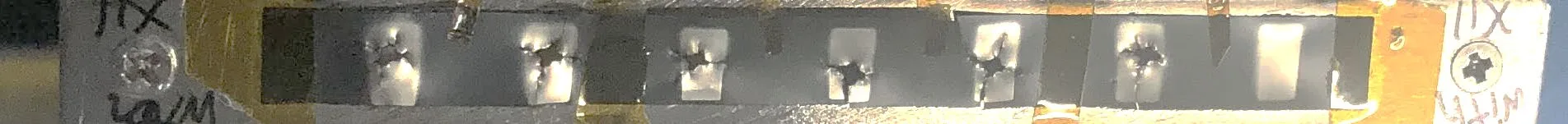

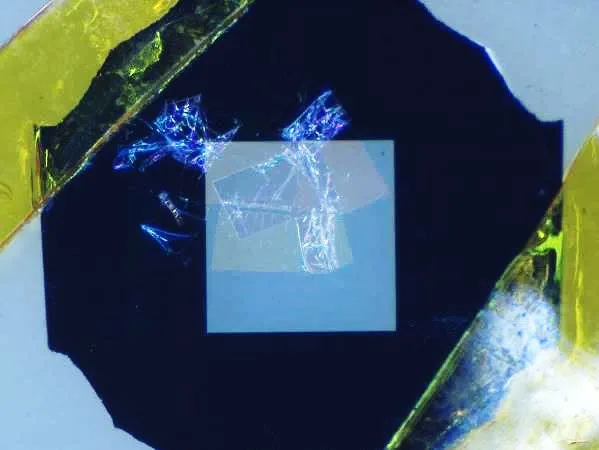

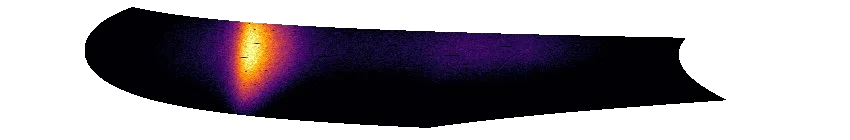

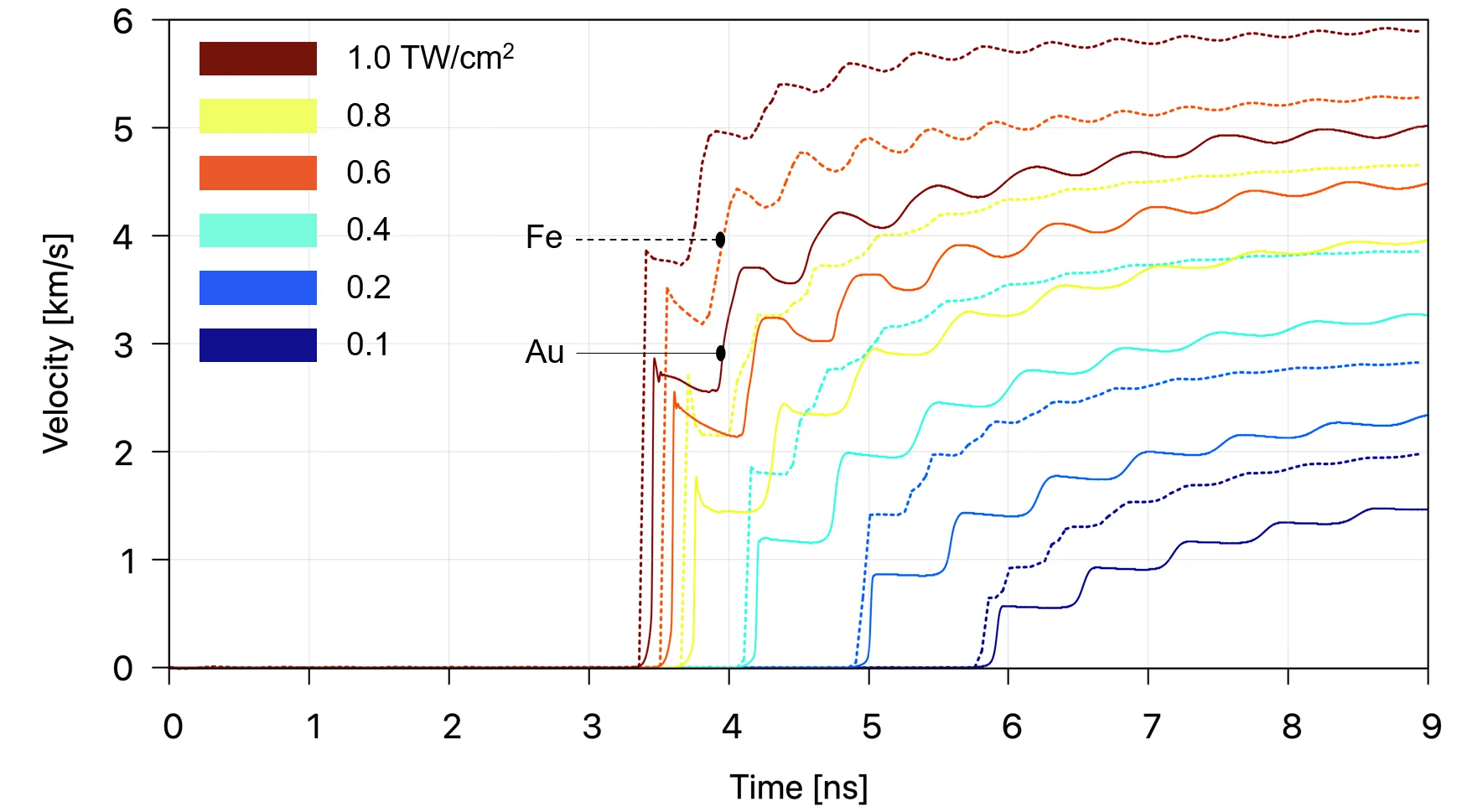

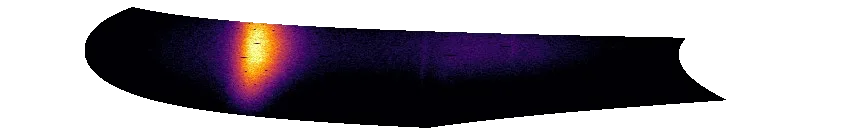

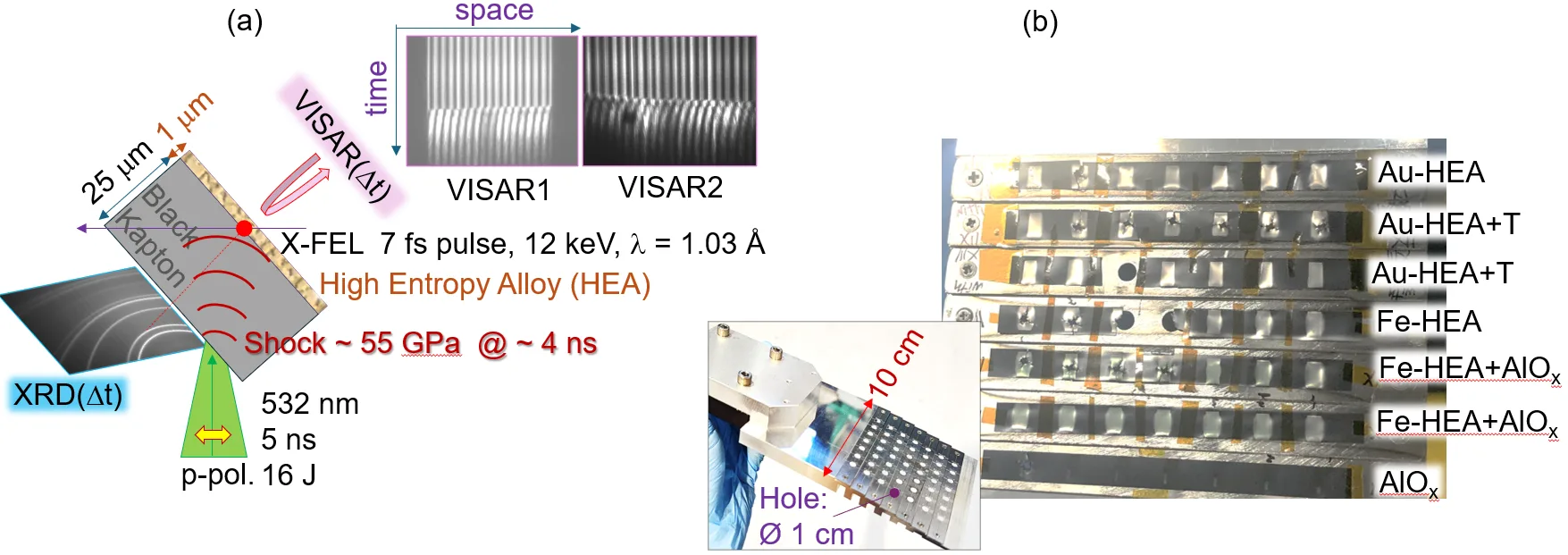

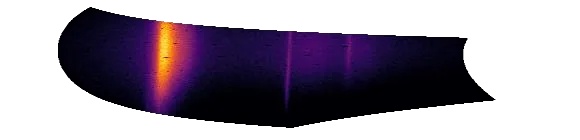

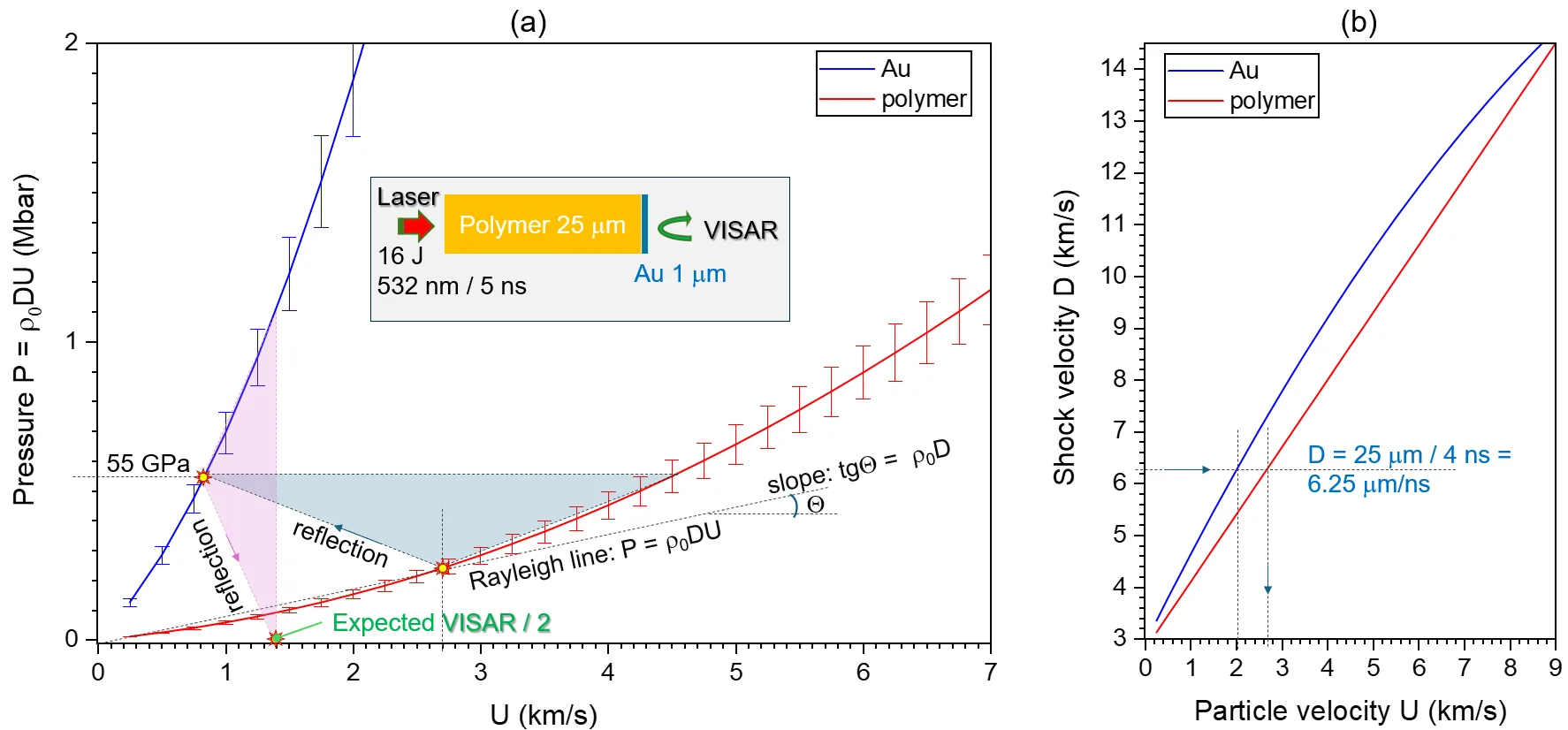

High entropy alloys (HEAs) are multi-principal-element alloys designed for tailorable mechanical performance and have been attracting significant engineering interest, yet their fundamental behaviour under extreme dynamic conditions, such as shock loading, remains unexplored. Here, we report laser-shock experiments on two different types of 1-micrometers-thick HEA microfilms, CuPdAgPtAu and CrFeCoNiCuMo, on 25-micrometers-thick black-Kapton ablator driven by a high intensity laser pulse (532 nm, 5 ns, 16 J, 0.5-mm diameter focal spot) and probed by an X-ray free electron laser (XFEL) pulse (12 keV, 7 fs). Time-resolved X-ray diffraction (XRD) shows the formation of a transient phase with a lattice compression up to 5.1% of the CuPdAgPtAu HEA along the (111) plane; this transient compressed phase existed for 0.3 ns. The impedance matching Hugoniot analysis estimated a shock pressure of 55 +/- 6 GPa in the HEA film, while Au- and Fe-based equations of state (EoS) modelling predict 80 GPa (0.8 MBar) at the free HEA surface. The free HEA surface reached maximum velocities of ~ 5 km/s as recorded from in situ monitoring with the velocity interferometry system for any reflector (VISAR) imaging. These initial HEA results show the suitability of HEA sample preparation and XFEL-based XRD characterisation under extreme shock loading, and are promising for experimental determination of the EoS of this emerging class of materials (beamtime proposal No.: 2024A8503 for a 6-hour preliminary experiment).
A pressure of 55 gigapascals is comparable to that at the center of the Earth, at a depth of about 1500 kilometers.
In Andy Weir's novel 'The Martian,' a thin alloy film shields a Martian base from micrometeorite impacts.
