The Ensemble's Whisper: How Diamond Spins Overcame Photon Noise ✛ ✎

Original: "Readout of a solid state spin ensemble at the projection noise limit"
arXiv:2509.11854 · 2025-09-15 · arXiv non-exclusive · independent analysis · 2 min
Scientists have for the first time heard the intrinsic quantum noise of spins in diamond, reducing measurement noise by 3.8 dB below the photon shot-noise limit.

A crowd of thirty-one quantum sensors whispers within a diamond slab. Previously, this whisper was drowned out by the roar of floodlights: the random photon bursts used to read out the spin states masked the ensemble's own quantum noise. Now physicists have learned to switch off the floodlights and listen to the crowd itself.

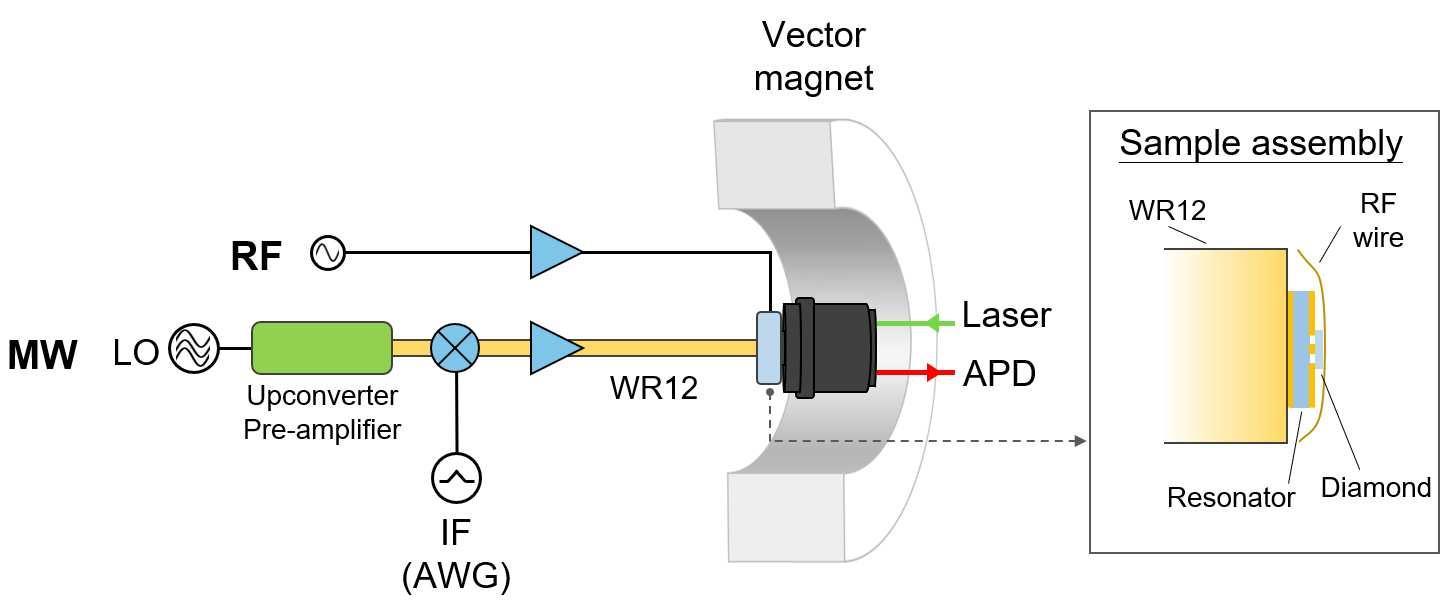

Each NV center in diamond is a crystal lattice defect: a nitrogen atom adjacent to a vacancy. Its electron spin can be flipped with microwaves and read out with a laser, but each photon carries its own random noise. To hear the projection noise—the quantum uncertainty in spin measurement—one must accumulate signal by repeating the readout thousands of times. In the experiment, at room temperature and a magnetic field of 2.7 T, the nitrogen nuclear spin served as an intermediary: its state was repeatedly mapped onto the electron spin and then read out optically. This reduced noise by 3.8 dB below the thermal projection noise level and allowed direct observation of fluctuations in an ensemble of 31(3) NV centers.

The number of active centers in the spot, 31, was determined from the projection noise level. This is the first direct count without destructive effects.

This is not merely a technical trick. Spins in solids can now be listened to with the same sensitivity as atoms in vacuum chambers. This opens the path to spin squeezing, which reduces quantum noise through entanglement, and to wide-field microscopy where each pixel reveals the spin distribution. Such correlation maps could help visualize magnetic materials, phase transitions, and even diagnose electronic chips.

Once the crowd's whisper was inaccessible due to the floodlights' roar. Now the floodlights are dimmed, and we hear thirty-one spins breathing in unison. This is the first step toward not just listening, but also controlling the collective quantum behavior of a solid.

The number of NV centers in the confocal spot (31) was determined from the projection noise level, marking the first direct count of active centers without destructive effects.

\sigma^2 = \sigma_n^2 + (2nc\sigma_{\tilde{J}_z})^2
The total signal variance is the sum of photon shot noise and spin projection noise. σ is the observed distribution width, σ_n is photon noise, n is the number of photons, c is contrast, and σ_{J_z} is projection noise.
\sigma_{\tilde{J}_z} = \sqrt{\frac{I(I+1)}{3}} \sqrt{\frac{1}{N_{NV}}} \sqrt{\frac{1}{3}} \sqrt{\frac{2T_1^2}{T^2} \left( \frac{T}{T_1} + e^{-T/T_1} - 1 \right)}
Projection noise for an ensemble of spins with I=1, accounting for time averaging over the readout duration. σ_{J_z} is projection noise, N_NV is the number of NV centers, T_1 is the longitudinal relaxation time, and T is the readout duration.
