Liquid metal bridges quantum chips express

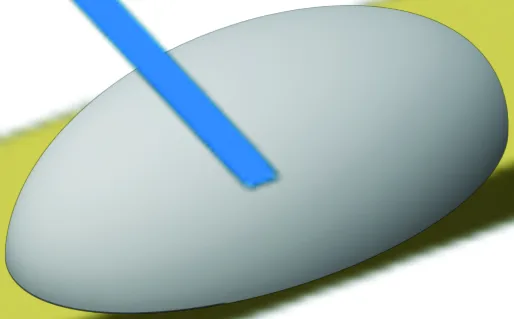

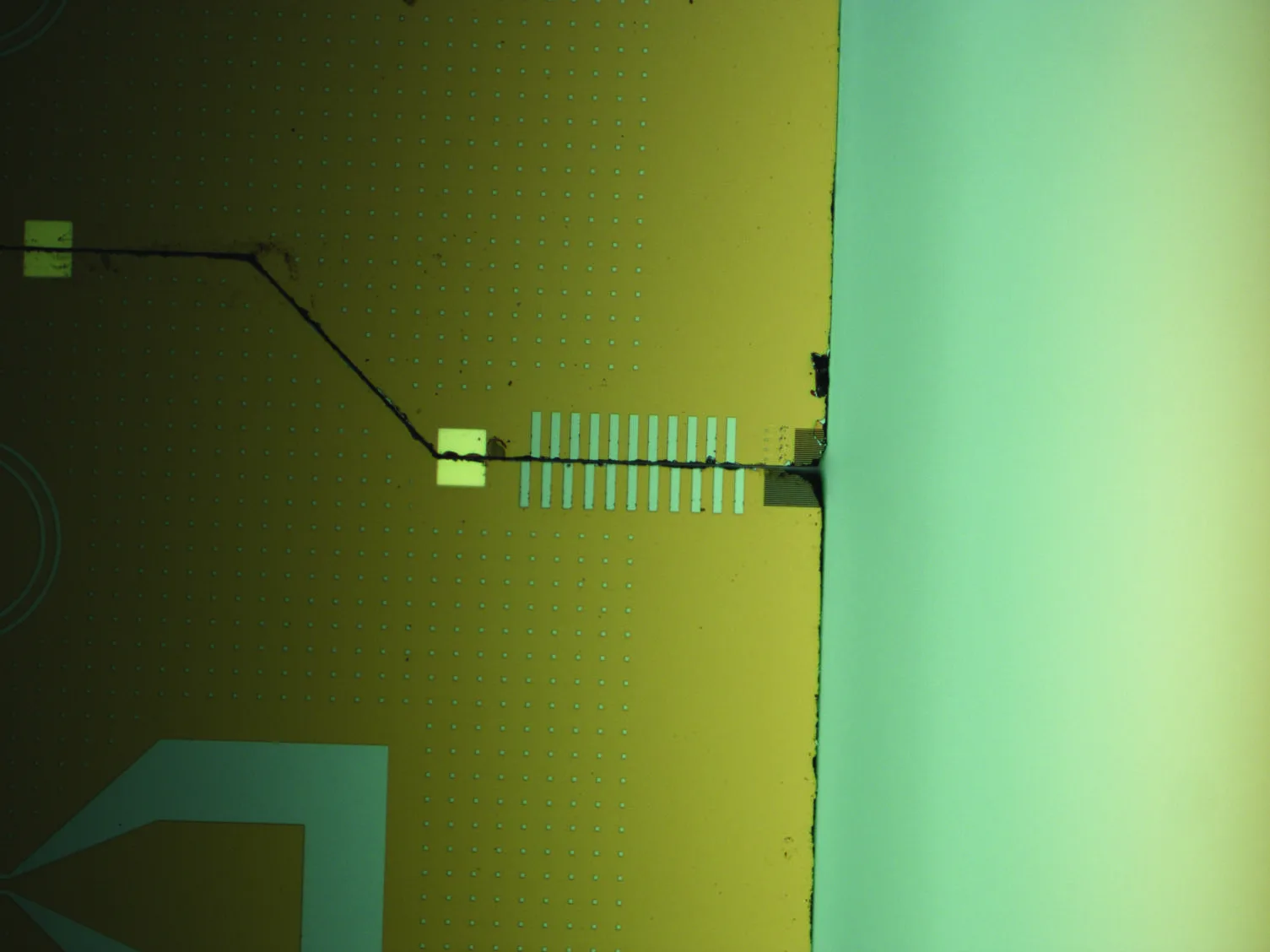

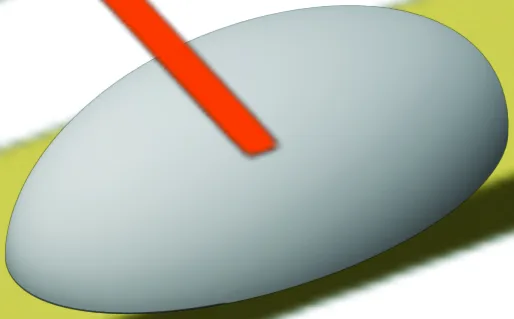

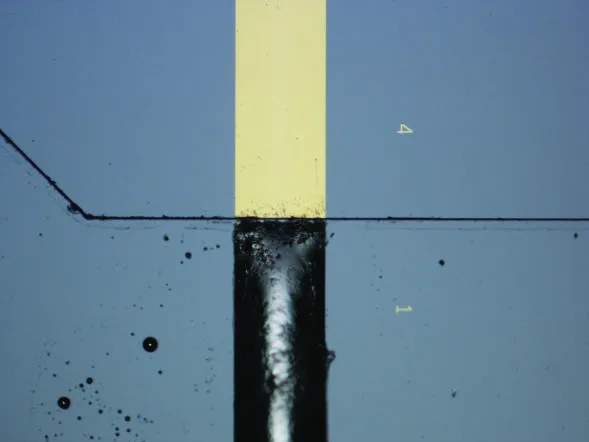

Ordinary soldering doesn't work for quantum circuits: when cooled to liquid helium temperatures, metal cracks, and the contacts themselves introduce noise. Engineers from the research group tried something different — a drop of gallium alloy that stays liquid at room temperature, like mercury in an old thermometer. Such a bridge fills any irregularities between chips, and when strongly cooled, it itself becomes a superconductor — a conductor with zero resistance.

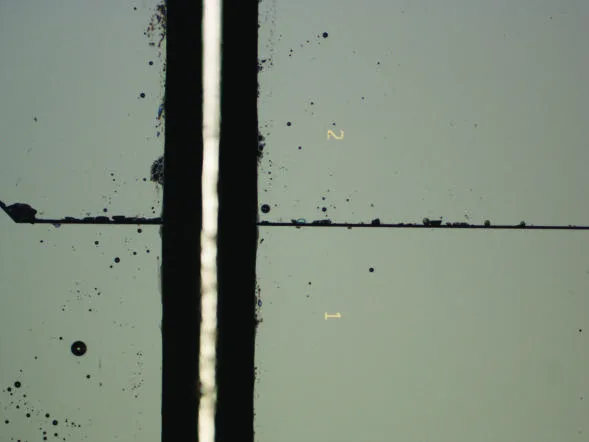

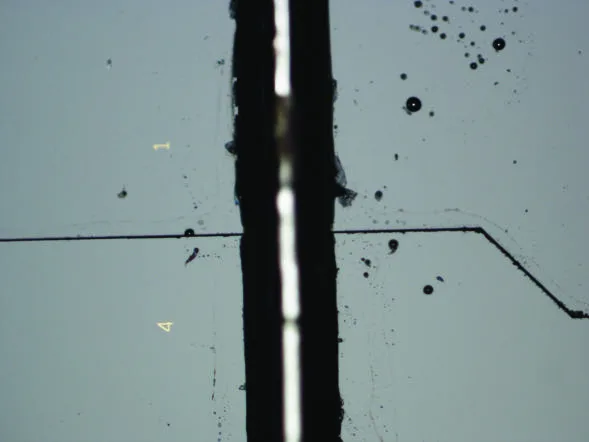

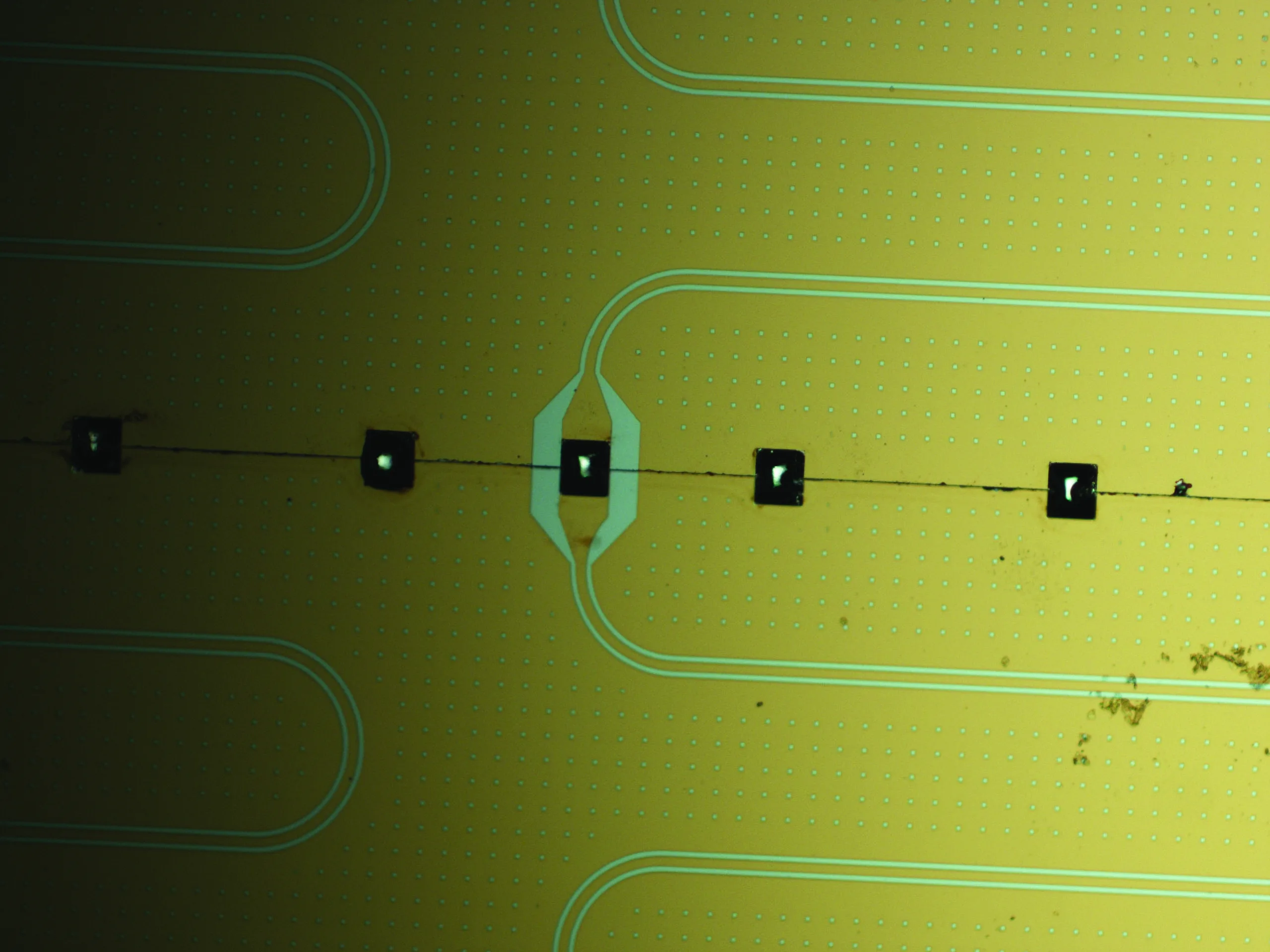

Tests showed that the signal through the liquid metal is as clean as through the best standard aluminum resonators. Three times, the setup was warmed to room temperature and then cooled again to 15 millikelvins — colder than outer space. After each cycle, the contact worked like new. And when one module was replaced with another, the gallium drop reflowed and restored the superconducting bridge.

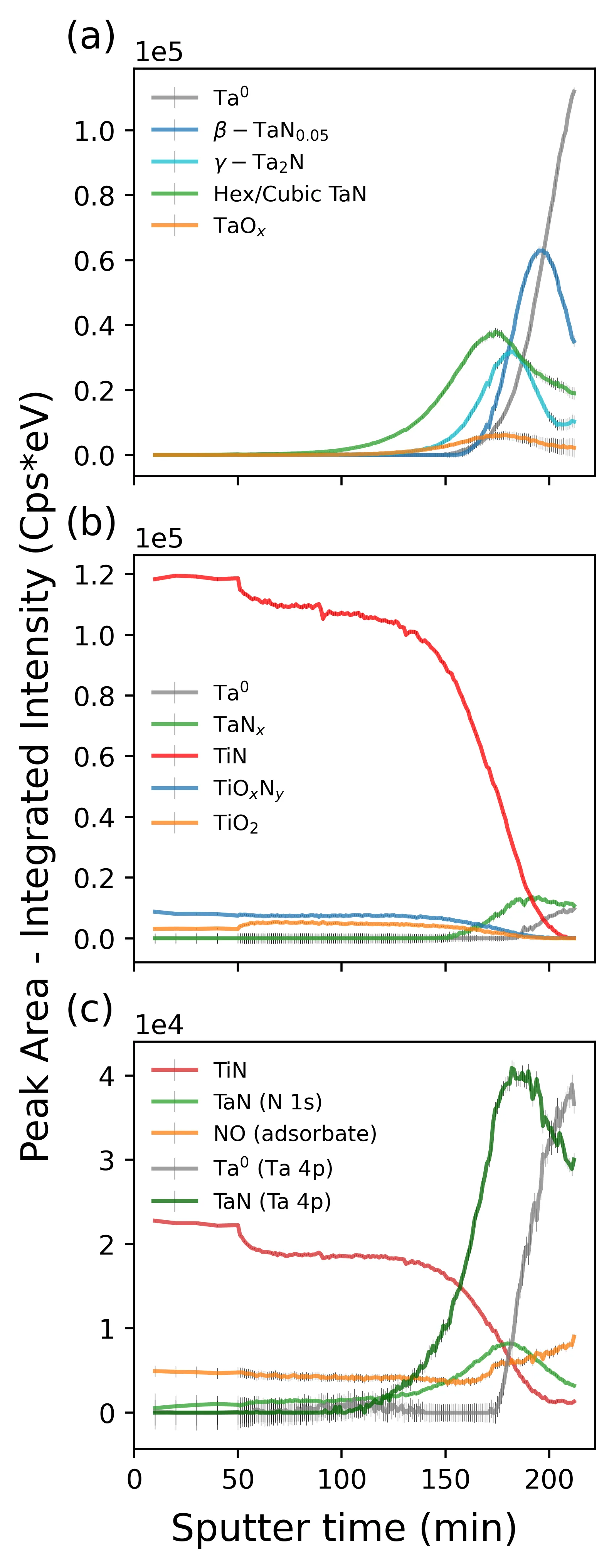

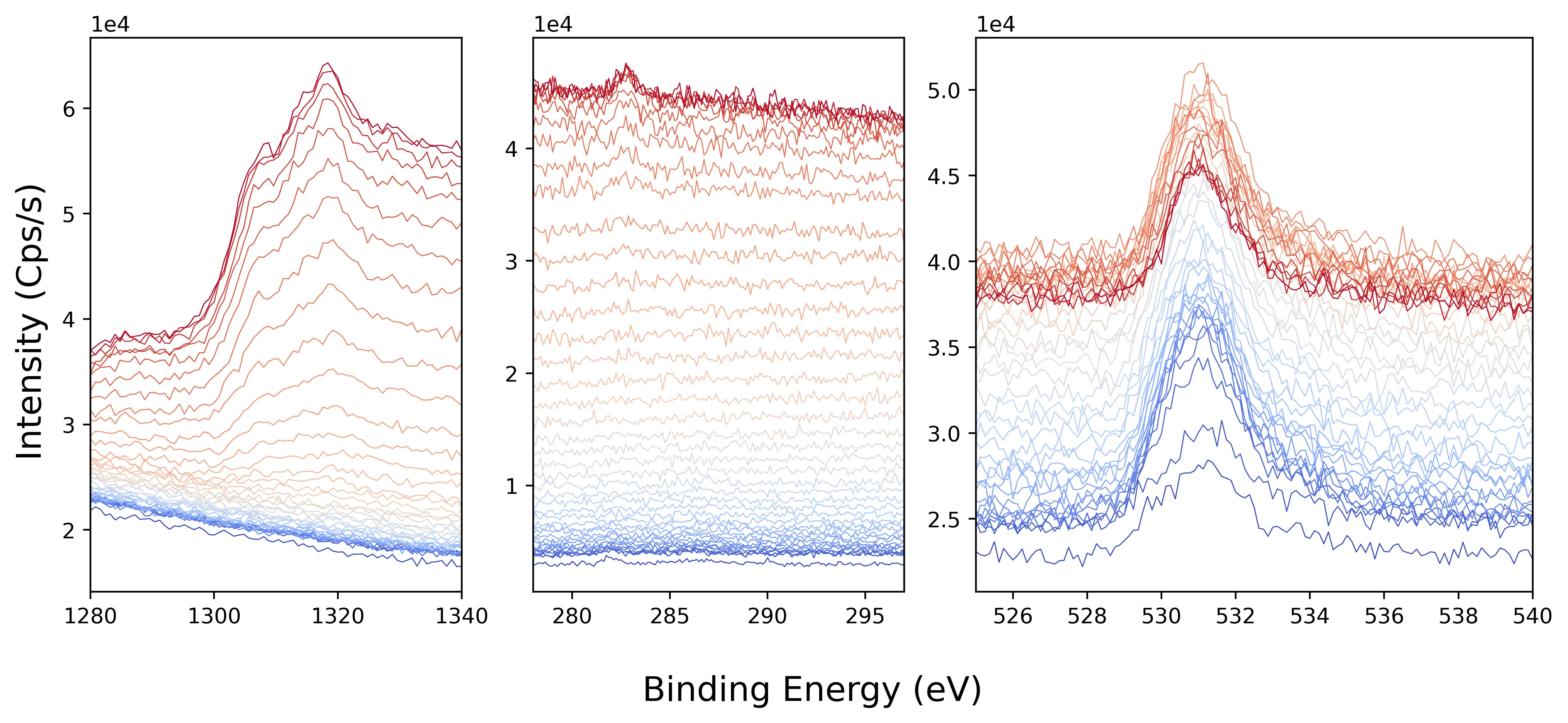

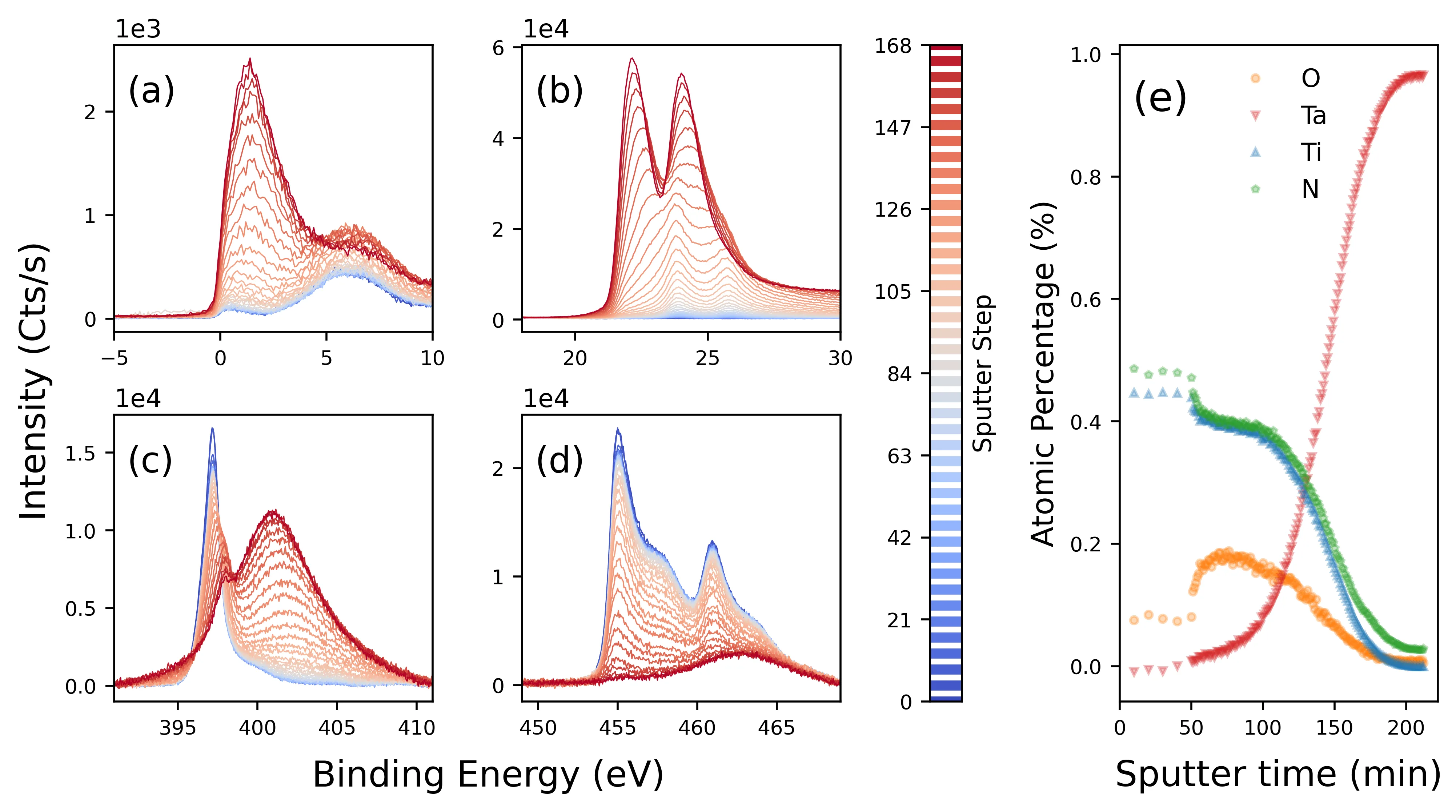

The secret to the quality lies in a thin film of tantalum that forms on the surface of the liquid metal. X-rays revealed it's a special crystalline phase that enhances the contact's inductance and helps the signal pass without distortion. At high microwave power, the contact warms up slightly, but this is predictable and doesn't hinder operation.
Original abstract
as written by the authors arXiv:2603.09096
Modular architectures are a promising route toward scalable superconducting quantum processors, but finite fabrication yield and the lack of high quality temporary interconnects impose fundamental limitations on system size. Here, we demonstrate chip-scale liquid-metal interconnects that show promise for plug-and-play superconducting quantum circuits by enabling non-destructive module replacement while maintaining high microwave performance. Using gallium-based liquid metals, we realize high-quality inter-module signal and ground interconnects, comparable in performance to conventional coplanar waveguide resonators. We illustrate consistent device characteristics across three thermal cycles between room temperature and 15 mK, as well as the ability to reform superconducting connections following module replacement. A width-dependent resonance frequency shift reveals a significant kinetic inductance fraction, which we attribute to the presence of $$\beta$$-phase tantalum as confirmed by X-ray characterization. Finally, we investigate power-dependent loss mechanisms and observe high-power dissipative nonlinearities qualitatively consistent with a readout-power heating model. These results establish liquid metals as viable chip-scale interconnects for reconfigurable, modular superconducting quantum systems.
Gallium is one of the few metals you can melt in a cup of hot tea, and when it solidifies, it expands like water freezing.
In Peter Watts's novel Blindsight, an alien ship uses self-healing materials — liquid metal contacts make a first step toward such electronics.
