A Magnetic Bottle Without a Lid express
A magnetic mirror is a tube open at both ends. The magnetic field inside is arranged so that hot plasma doesn't leak out: at the ends, the field lines bunch up like a cork in a bottle. Plasma particles flying toward the exit are repelled by these "corks" and bounce back. But some still escape: that's the classic "loss cone" argument.

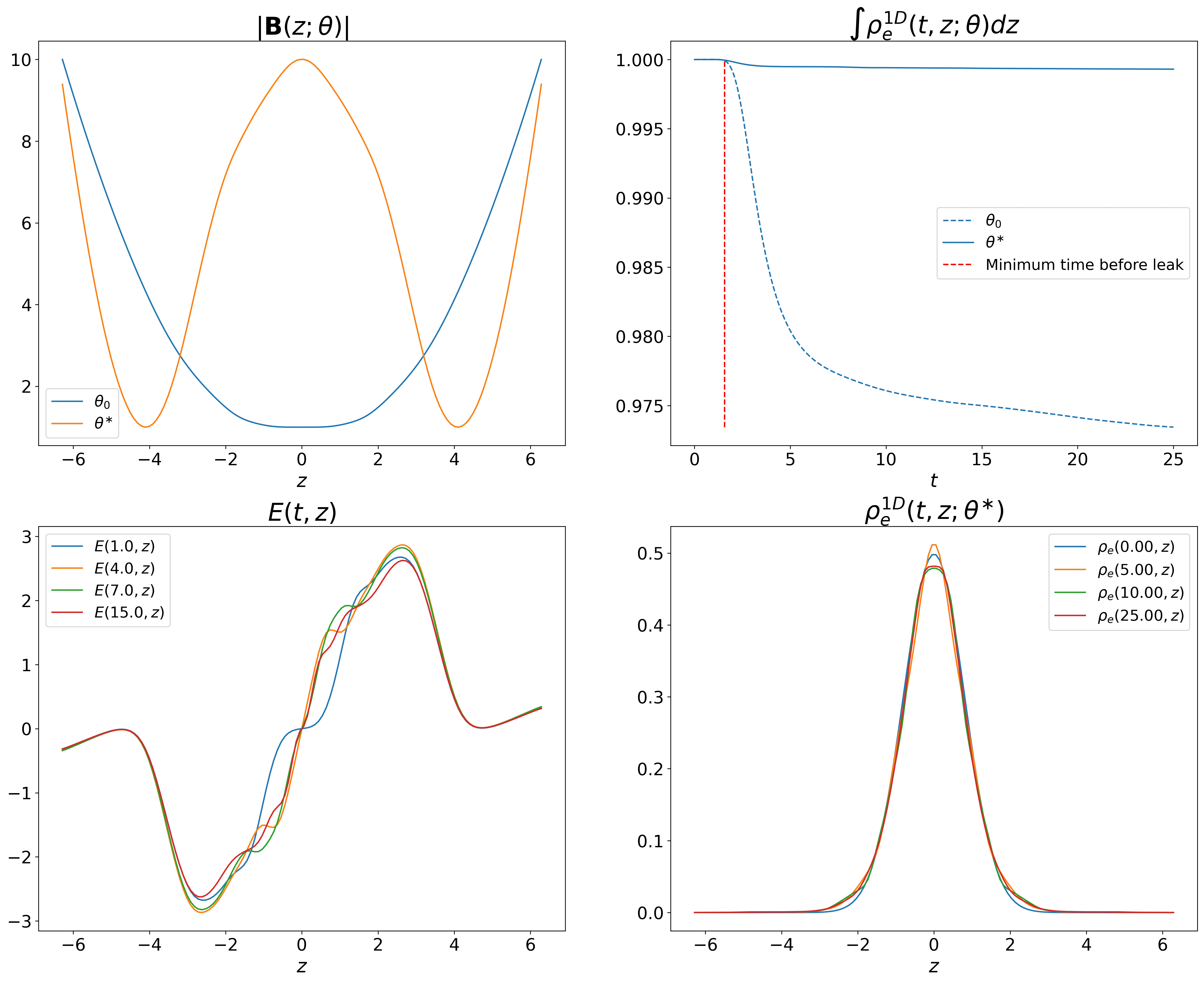

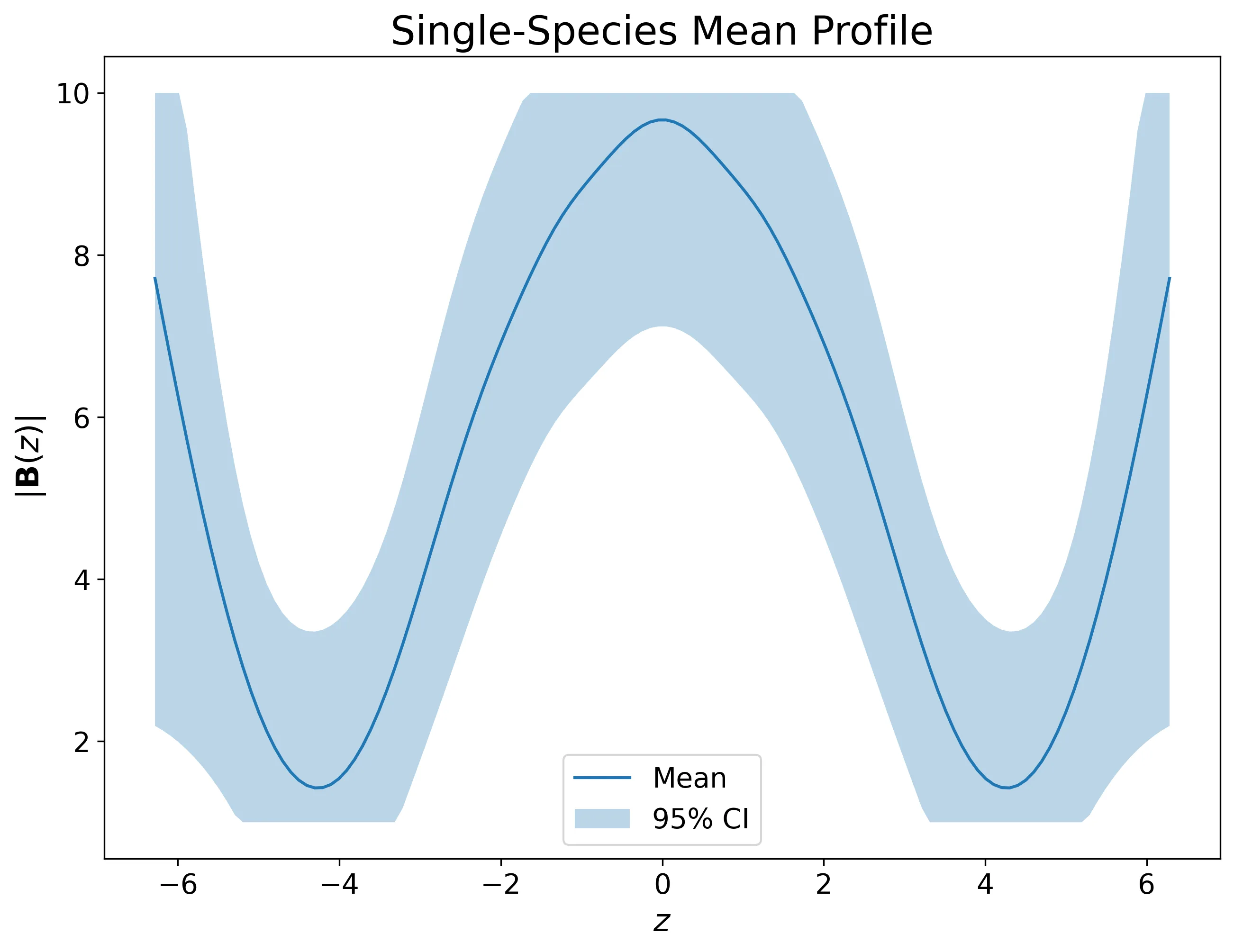

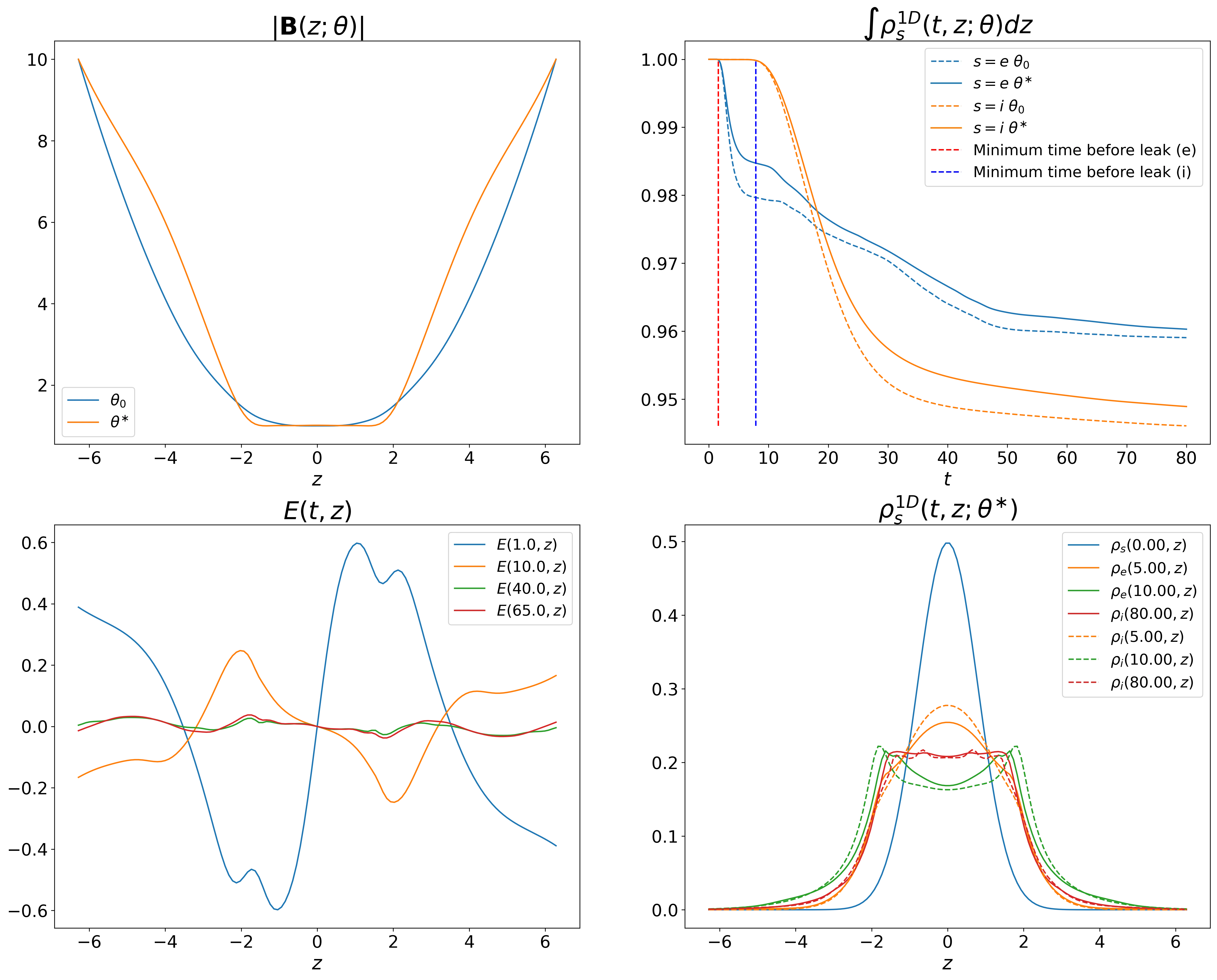

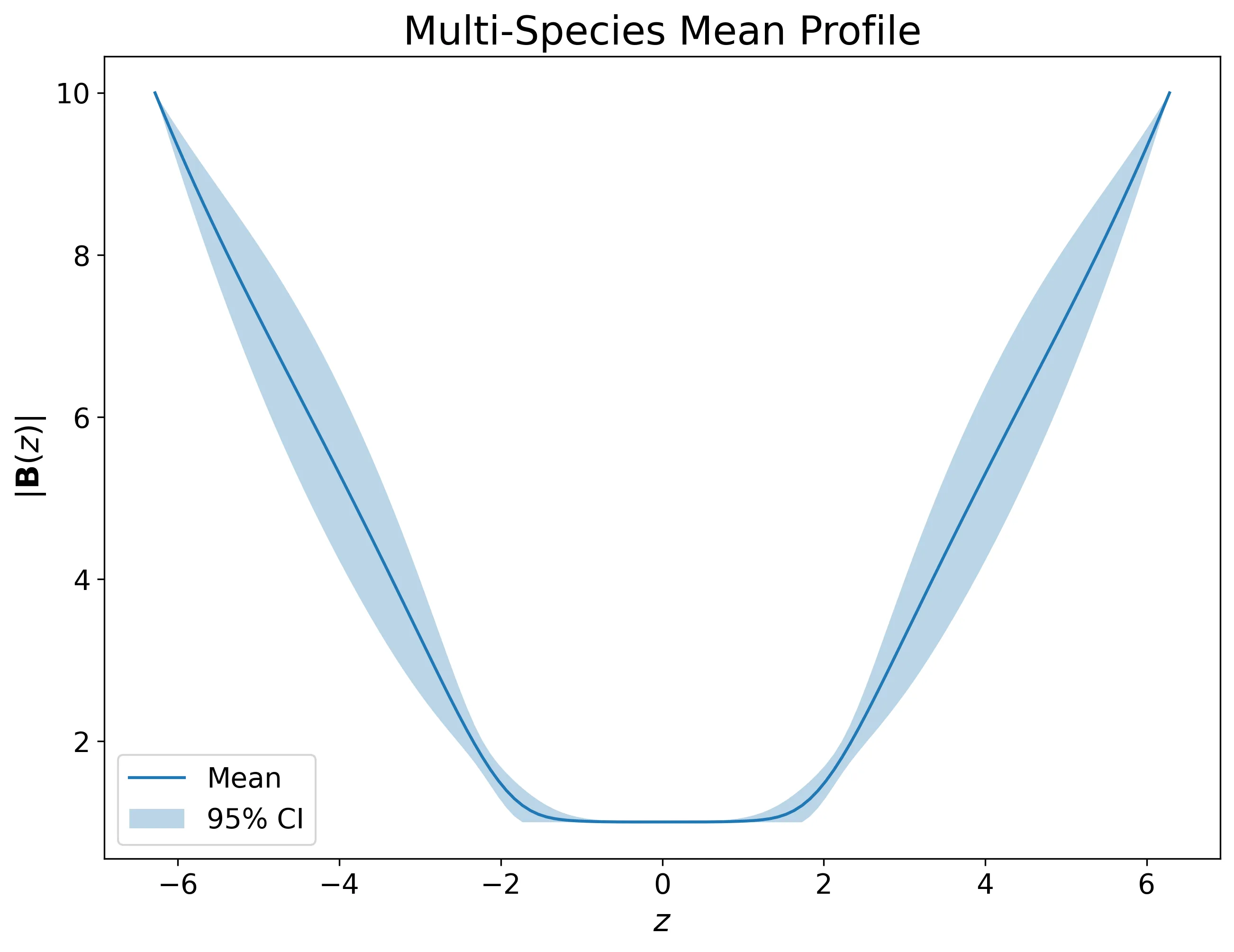

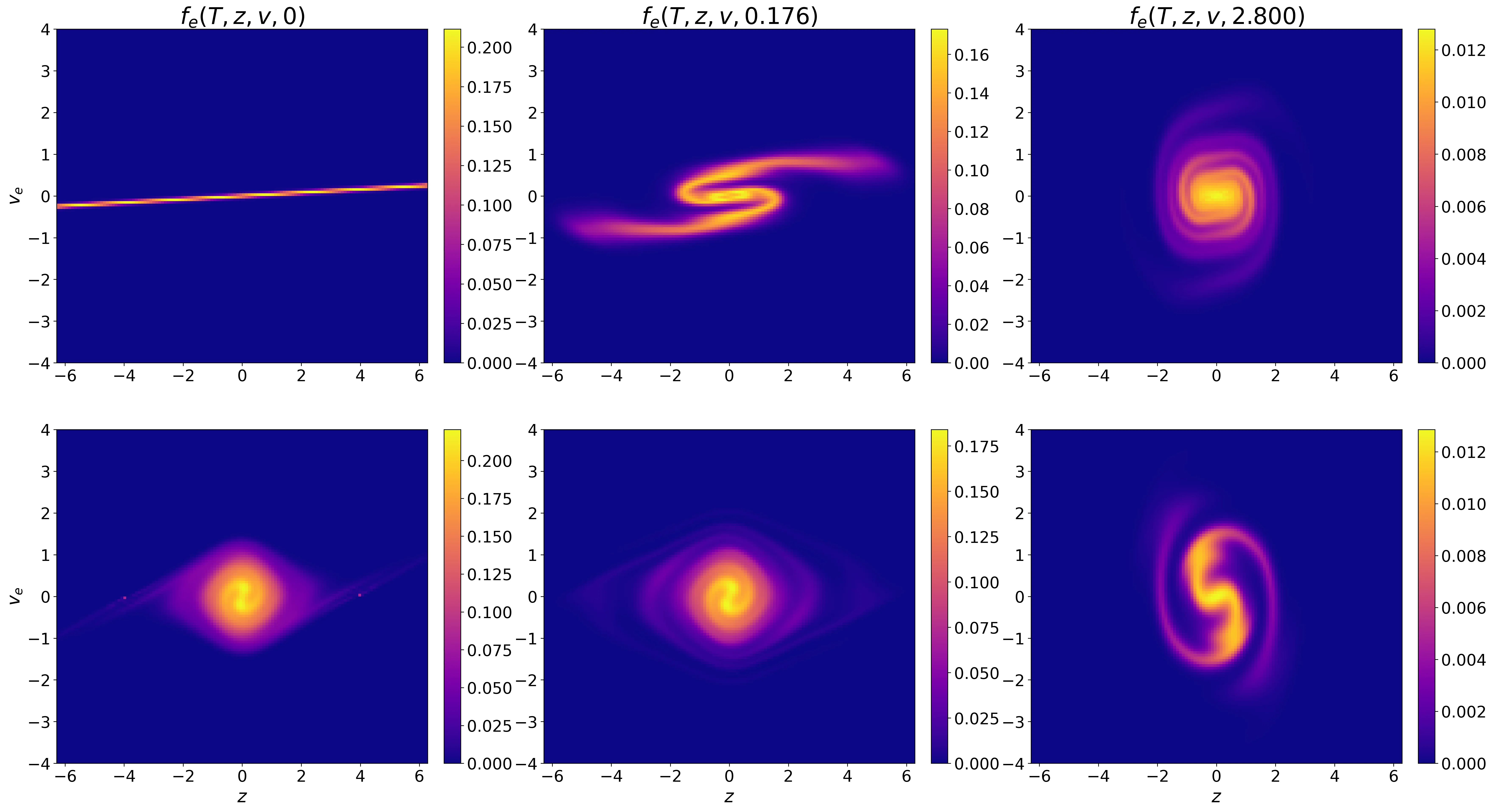

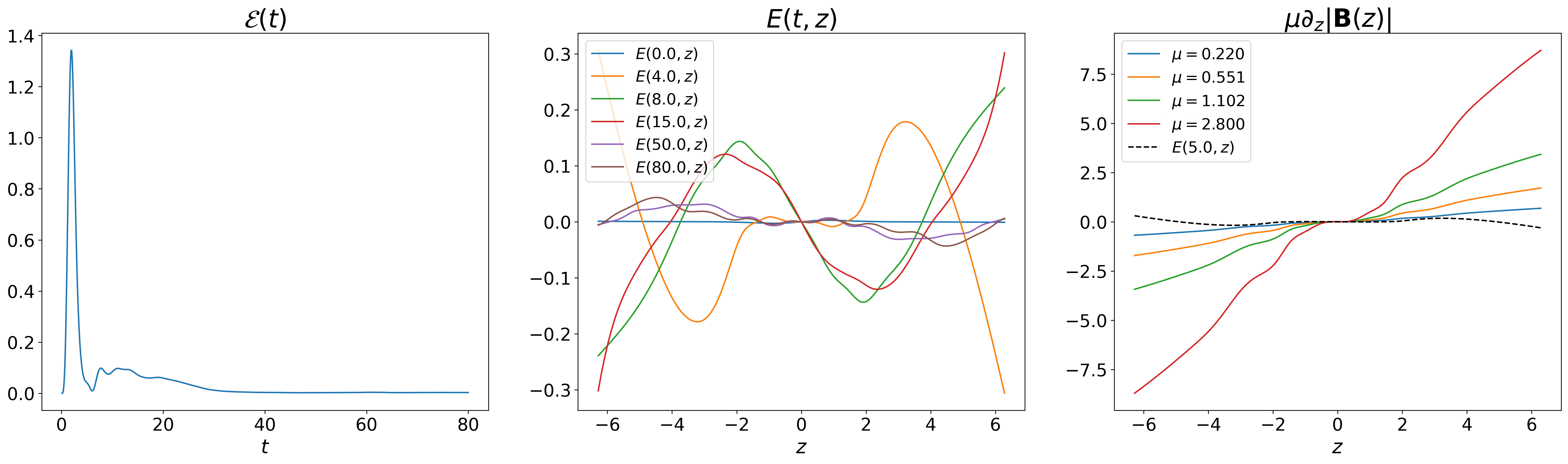

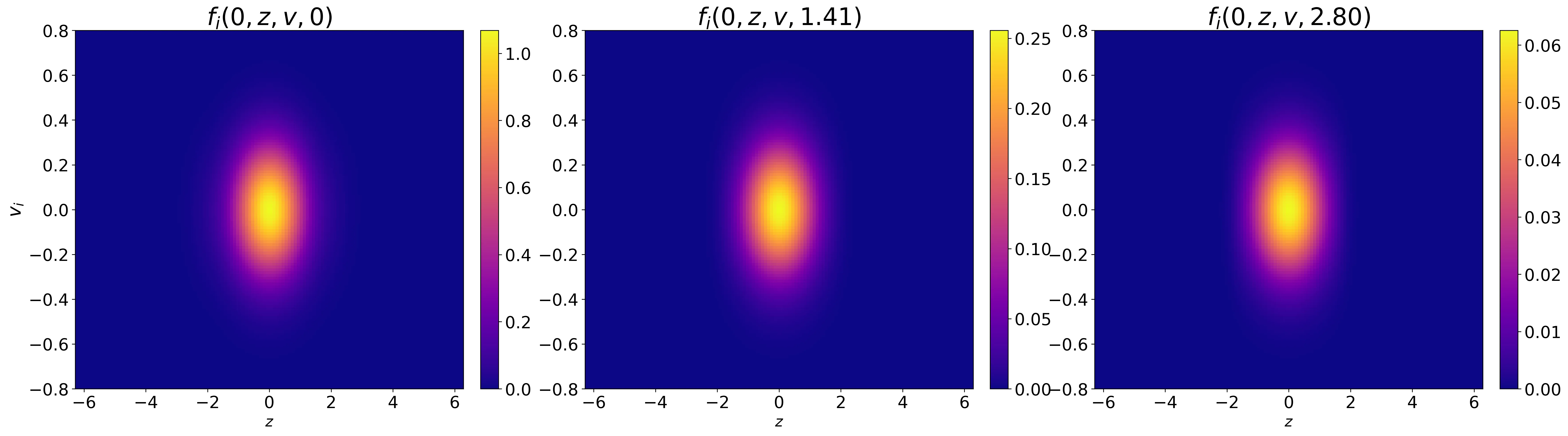

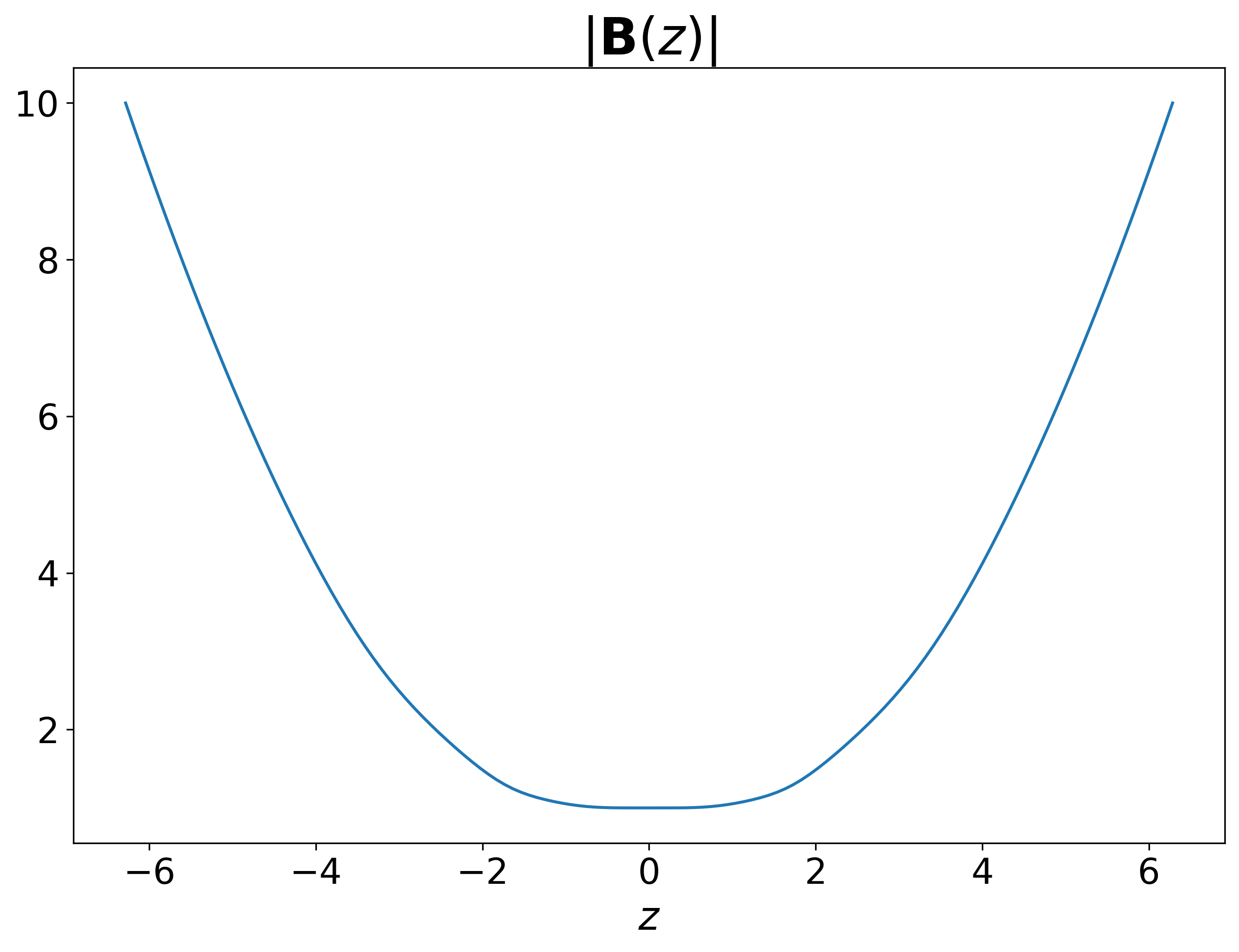

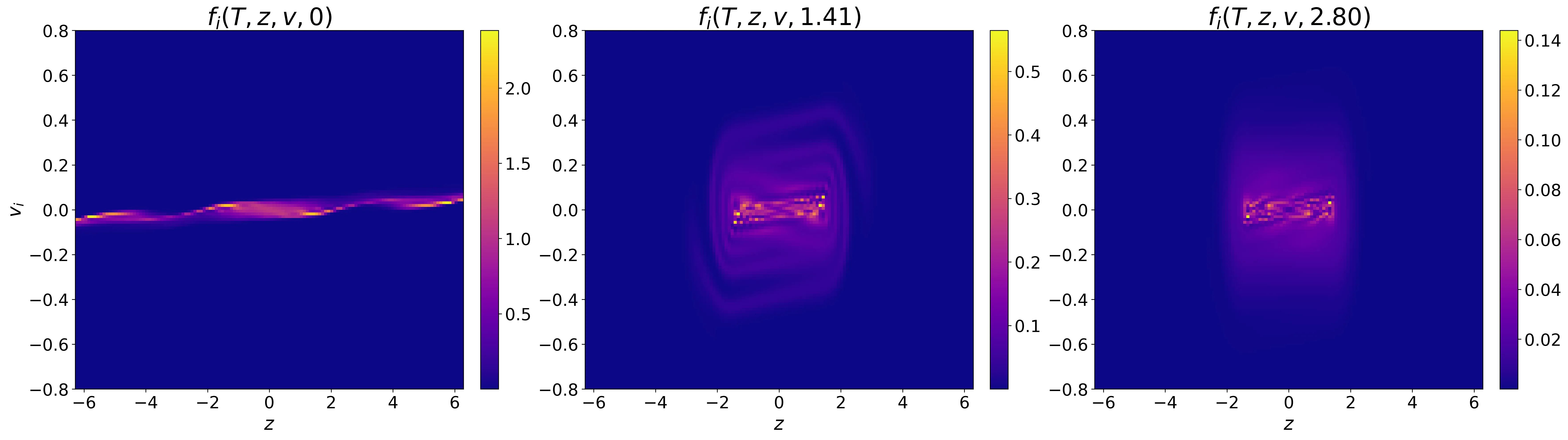

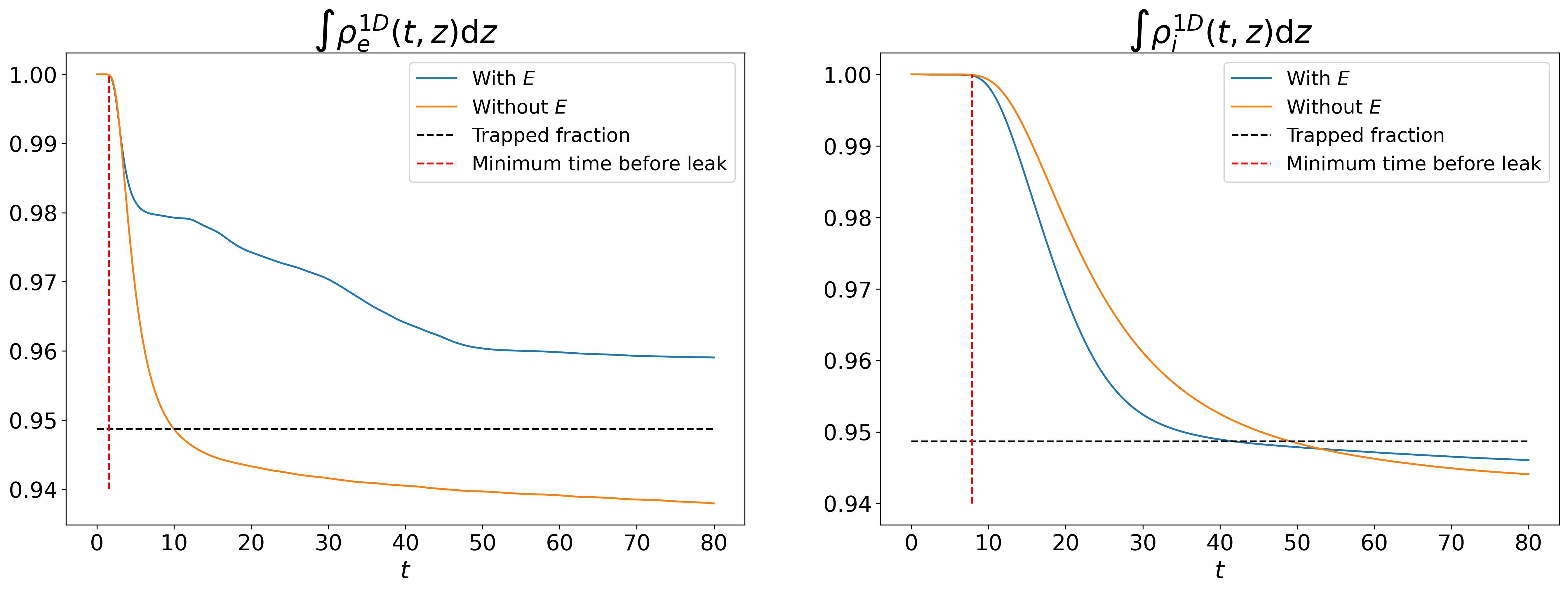

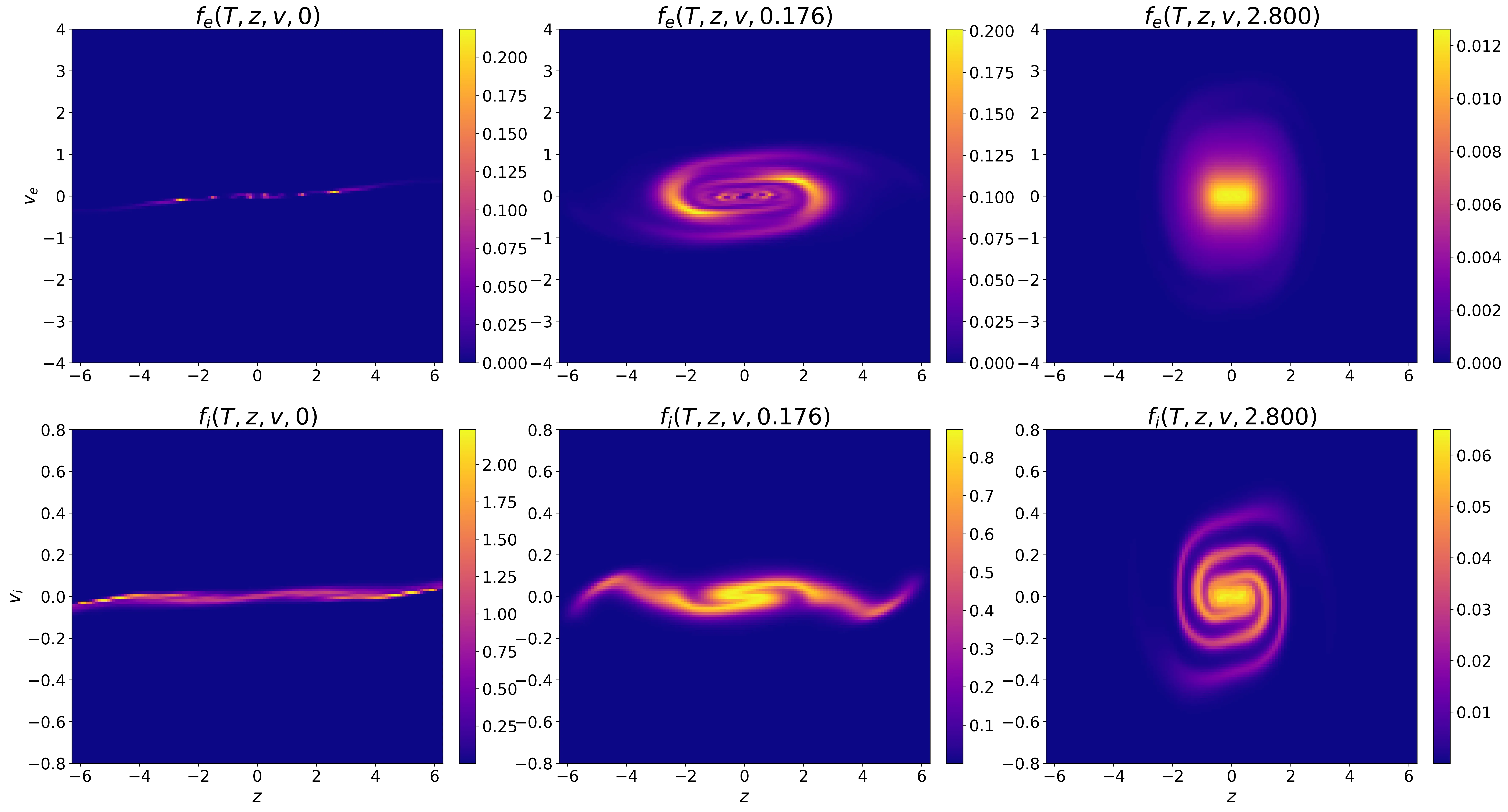

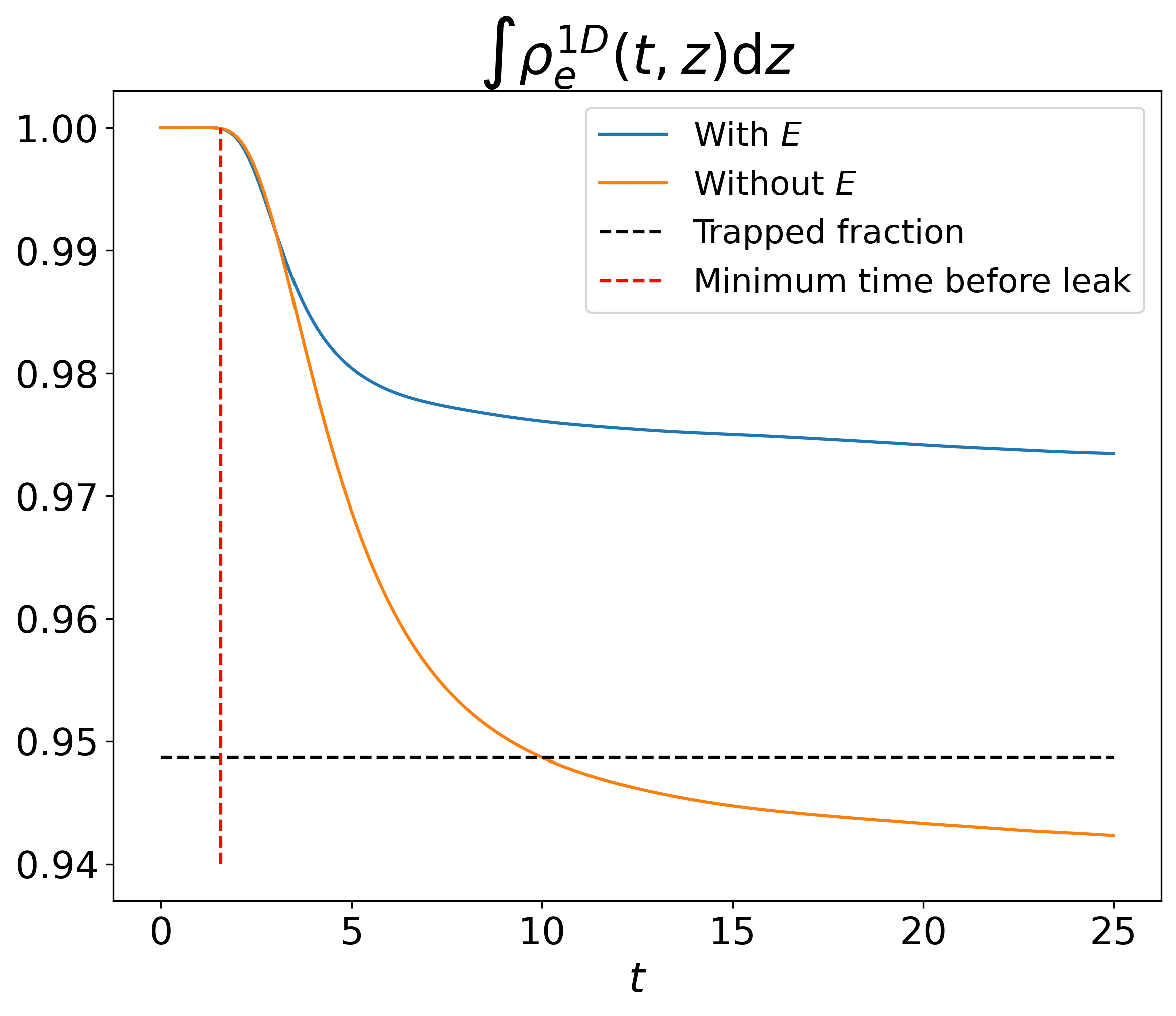

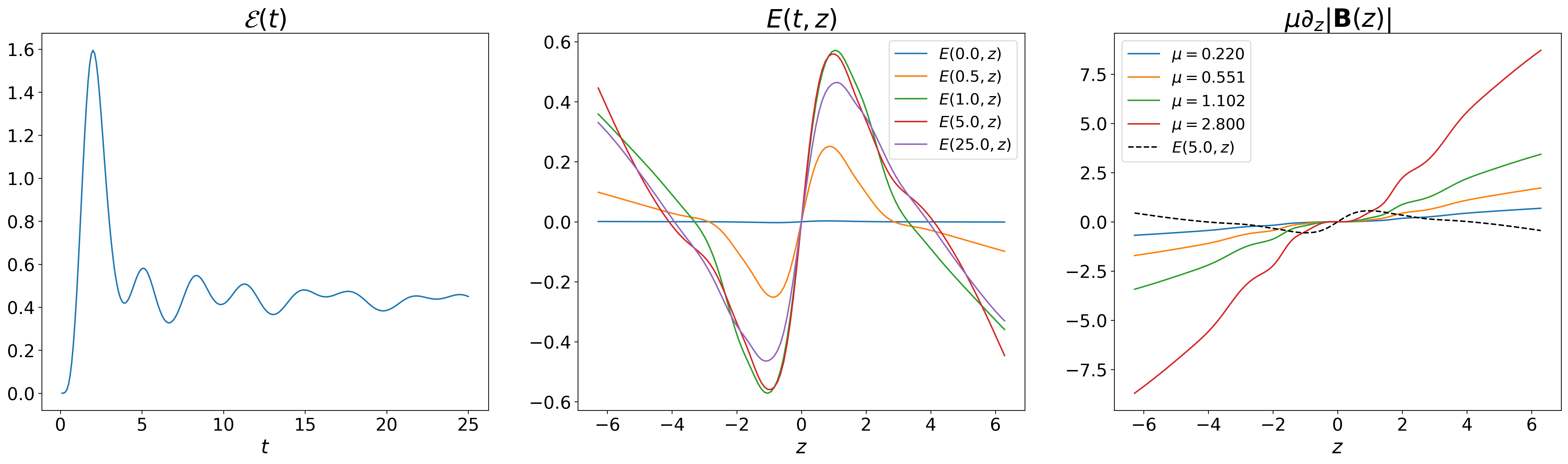

The authors of the new study approached the problem as a mathematical optimization. They sought the best shape of the magnetic field by solving equations for charged particles and the self-consistent electric field (which the plasma creates for itself). And then two surprises emerged. First: this electric field acts as an extra wall: it reflects particles even where the magnetic field is weak. Second surprise: if you consider only electrons, the optimal field shape is a bump in the middle of the tube. But if you add ions, the shape becomes familiar — with peaks at the ends.
It turns out that a magnetic mirror is not just a magnetic bottle. It's a living system where the field shape and the electric "fence" must be tuned together. Without accounting for this coupling, you can't build an optimal trap.
Original abstract
as written by the authors arXiv:2607.26479

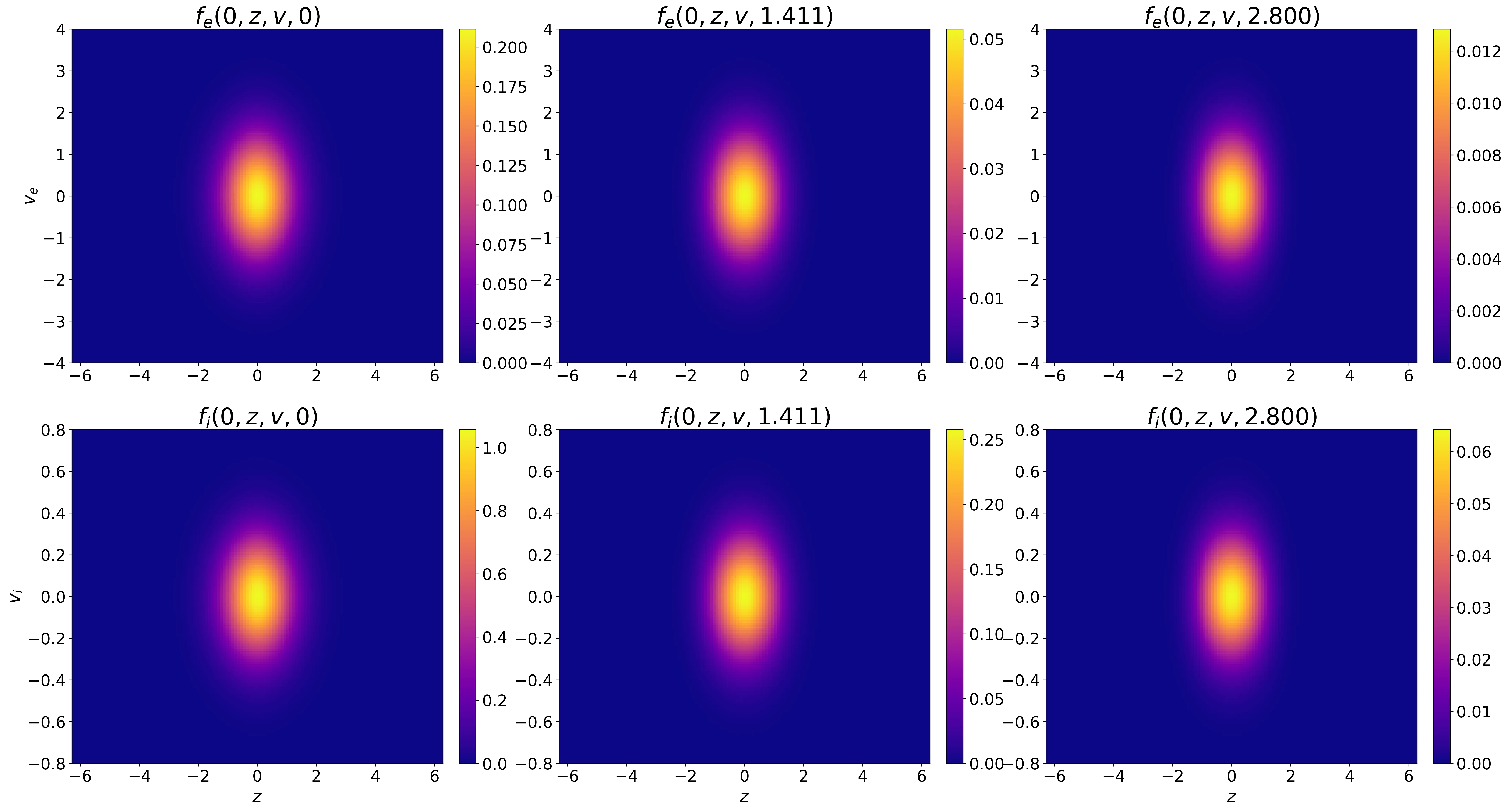

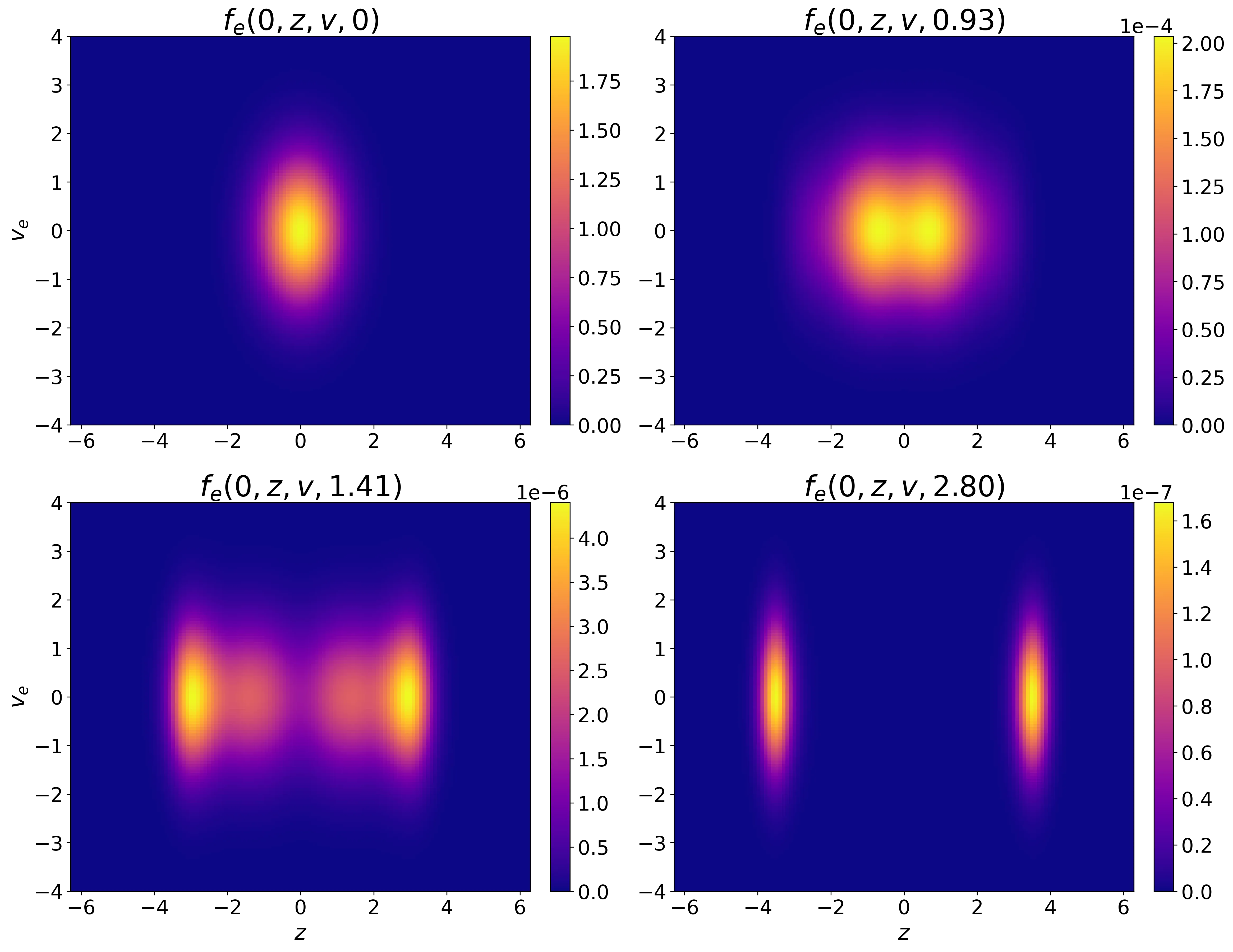

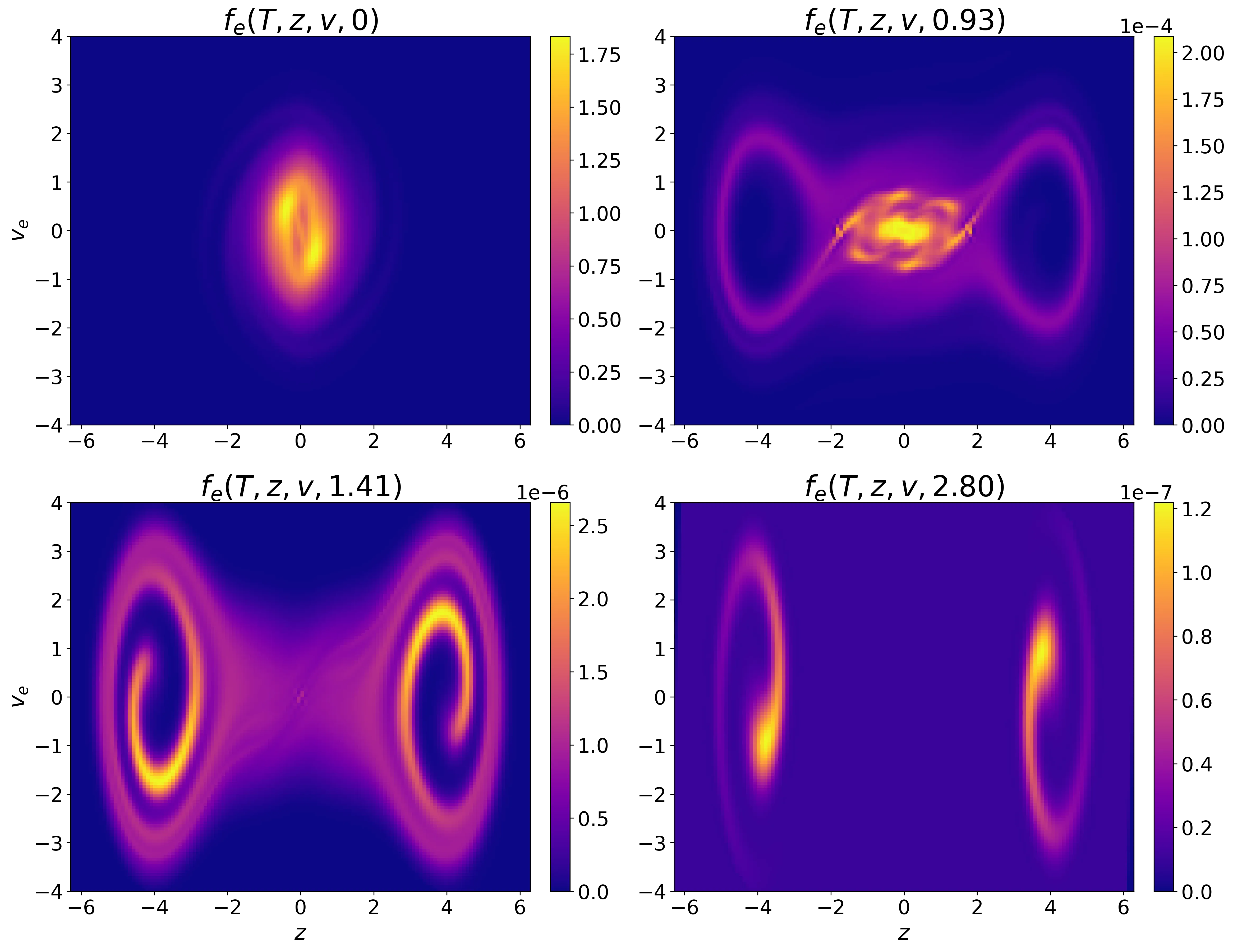

Magnetic mirrors are among the conceptually simplest plasma confinement configurations and remain promising candidates for thermonuclear fusion. Their design requires shaping an externally applied magnetic field to confine plasma within an open-ended cylindrical device. In contrast to toroidally closed devices such as tokamaks and stellarators, confinement in magnetic mirrors depends intrinsically on kinetic mechanisms, particularly velocity-space trapping and particle loss through the open ends. We formulate magnetic mirror design as a PDE-constrained optimization problem governed by a reduced multispecies drift-kinetic-Poisson model. The resulting optimization reveals two physical effects not captured by the classical loss-cone argument. First, the self-consistent electric field generated through Poisson coupling acts as a secondary confinement barrier and substantially alters particle retention in the nonlinear regime. Second, the optimized magnetic-field configuration depends qualitatively on the underlying kinetic model: an electron-only model favors an unconventional centrally peaked field, whereas the fully coupled electron-ion model recovers the classical boundary-peaked mirror configuration. These results demonstrate that optimal magnetic mirror design cannot be determined solely from loss-cone considerations, but must account for the self-consistent nonlinear kinetic dynamics of the plasma.
Magnetic mirrors are among the first devices for plasma confinement. In the 1950s, they were proposed as a simpler alternative to closed doughnut-shaped chambers, but for a long time it was thought that end losses were too large. Now it turns out that the plasma's own electric field can greatly reduce these losses.
In Tony Daniel's novel "Earthling," a starship uses an engine based on an open-ended magnetic trap, just like in this work.
