How AI Learned to Read the Magnetic Handwriting of Solar Flares ✛
Context
A solar magnetogram looks like a page scrawled with cryptic symbols—but in reality it is a high‑resolution map of our star’s magnetic field. Behind these scribblings lie the laws discovered by Michael Faraday and cast into mathematical form by James Clerk Maxwell as the equations of electromagnetism. It is in the magnetic pattern that a warning of an impending flare lies—an event that releases the energy of billions of nuclear bombs in minutes and hurls streams of plasma and radiation into space. When such Solar wind disturbances reach Earth, they knock out satellites, disrupt communications, and even black out cities. No wonder flare prediction has become a top priority for Machine Learning. Convolutional neural networks trained on thousands of images deliver impressive results, yet their inner reasoning remained hidden—until explainable AI methods arrived.
Methods

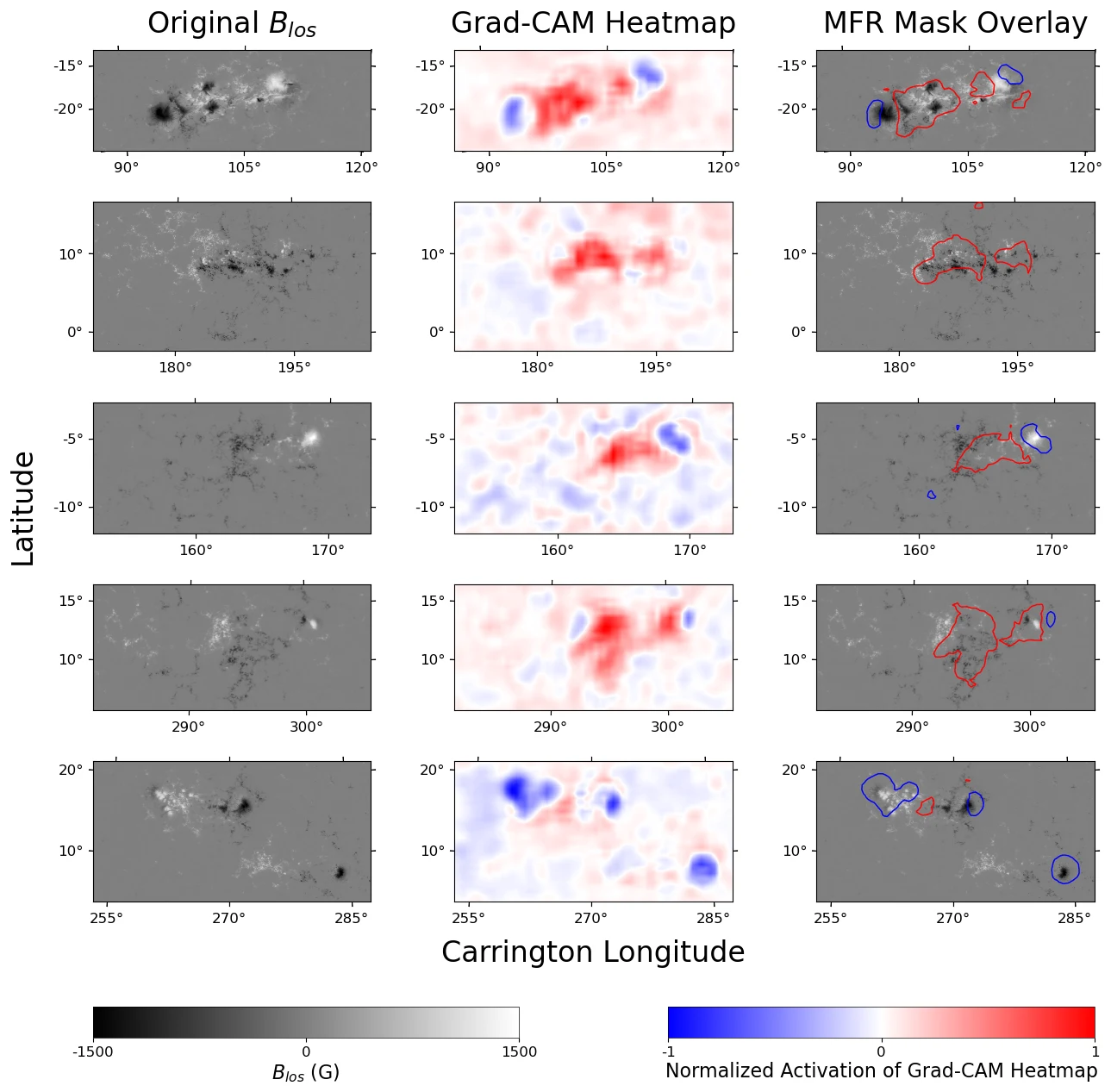

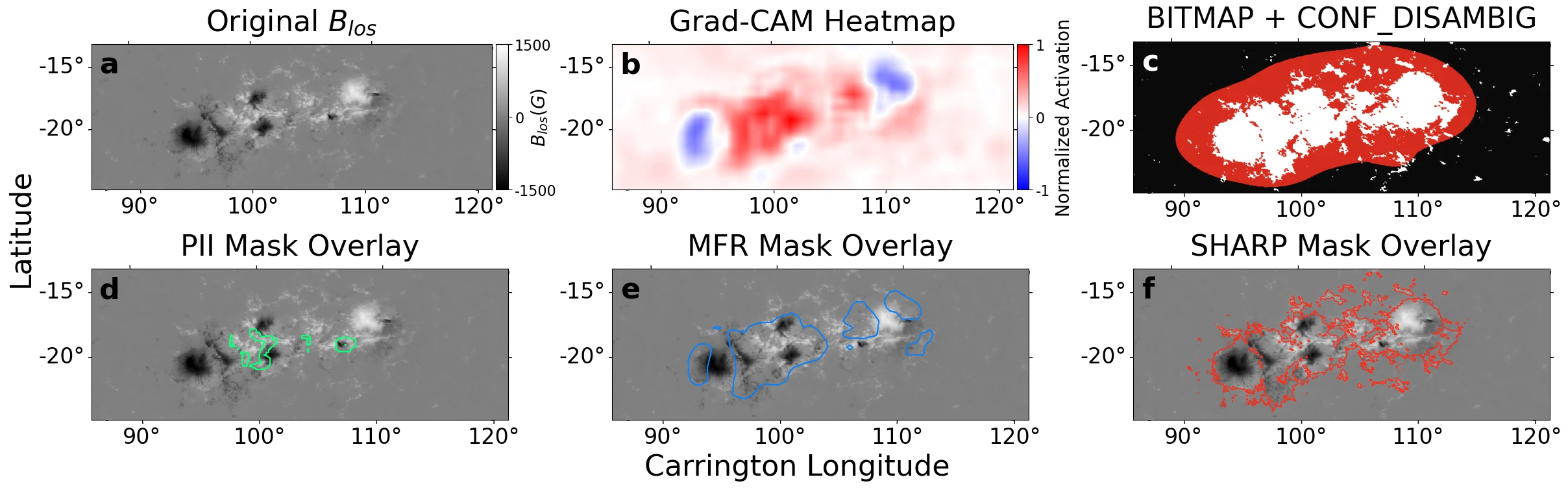

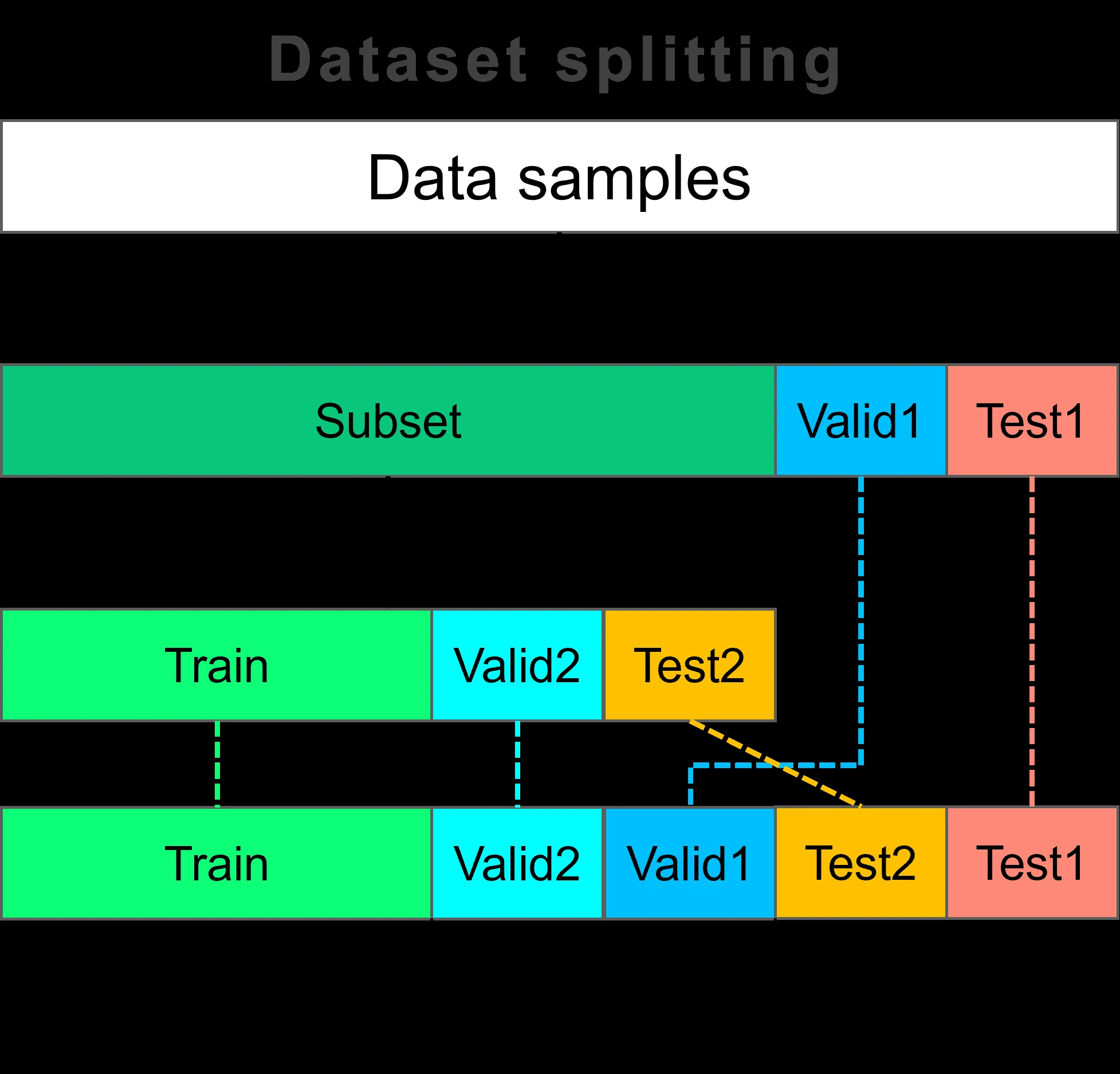

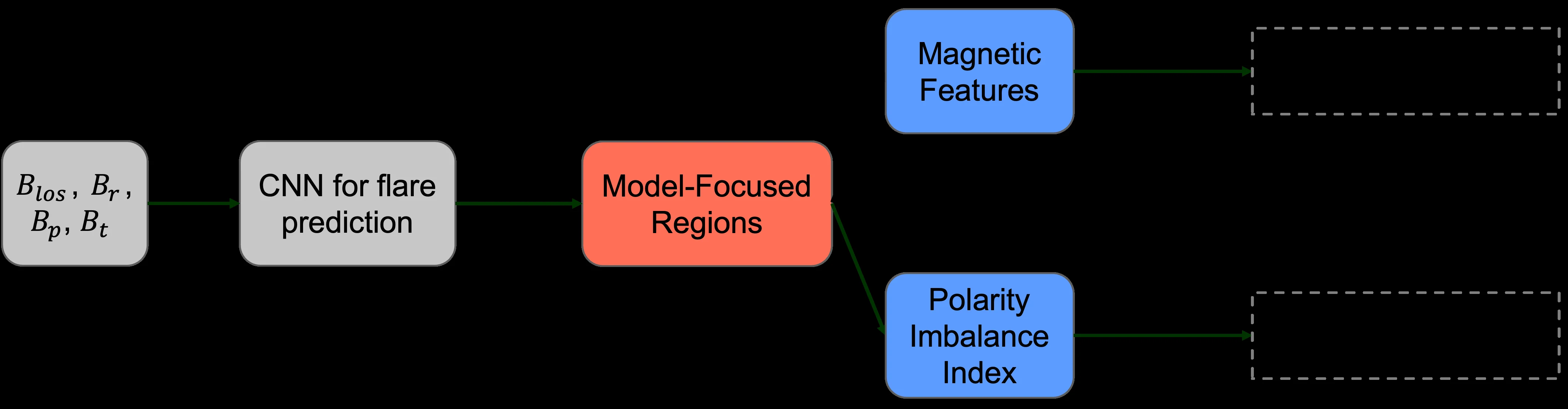

The researchers collected about 2700 solar active regions from twelve and a half years of observations by the polarimetry instrument HMI on the SDO satellite. Each region is captured by four magnetograms—the components of the magnetic field vector at every point. After standard preprocessing (padding to a square and rescaling to 512×512 pixels), the data were fed into a Convolutional Neural Network of the ResNet architecture. Its task was a binary prediction: will a flare of at least class C occur in this region within the next 24 hours? The model achieved a True Skill Statistic (TSS) of 0,748, far better than random chance. Next, a Grad‑CAM heatmap was generated for each image, assigning weights to pixels based on their contribution to the final answer. Otsu thresholding then produced binary masks—the “model‑focused regions” (MFR). For comparison, two physical masks were employed: the standard SHARP, which outlines the active region, and the PIL, a narrow strip along the polarity inversion line. From all three mask types, 16 standard magnetic parameters (total current, energy, field shear, etc.) were extracted and used to train three classical models: random forest, a fully connected network, and a support vector machine. In addition, a simple polar imbalance index was introduced: PII = |N₊ − N₋| / (N₊ + N₋), where N₊ and N₋ are the counts of pixels with field strengths above +150 G and below –150 G in each network attention zone.
Results

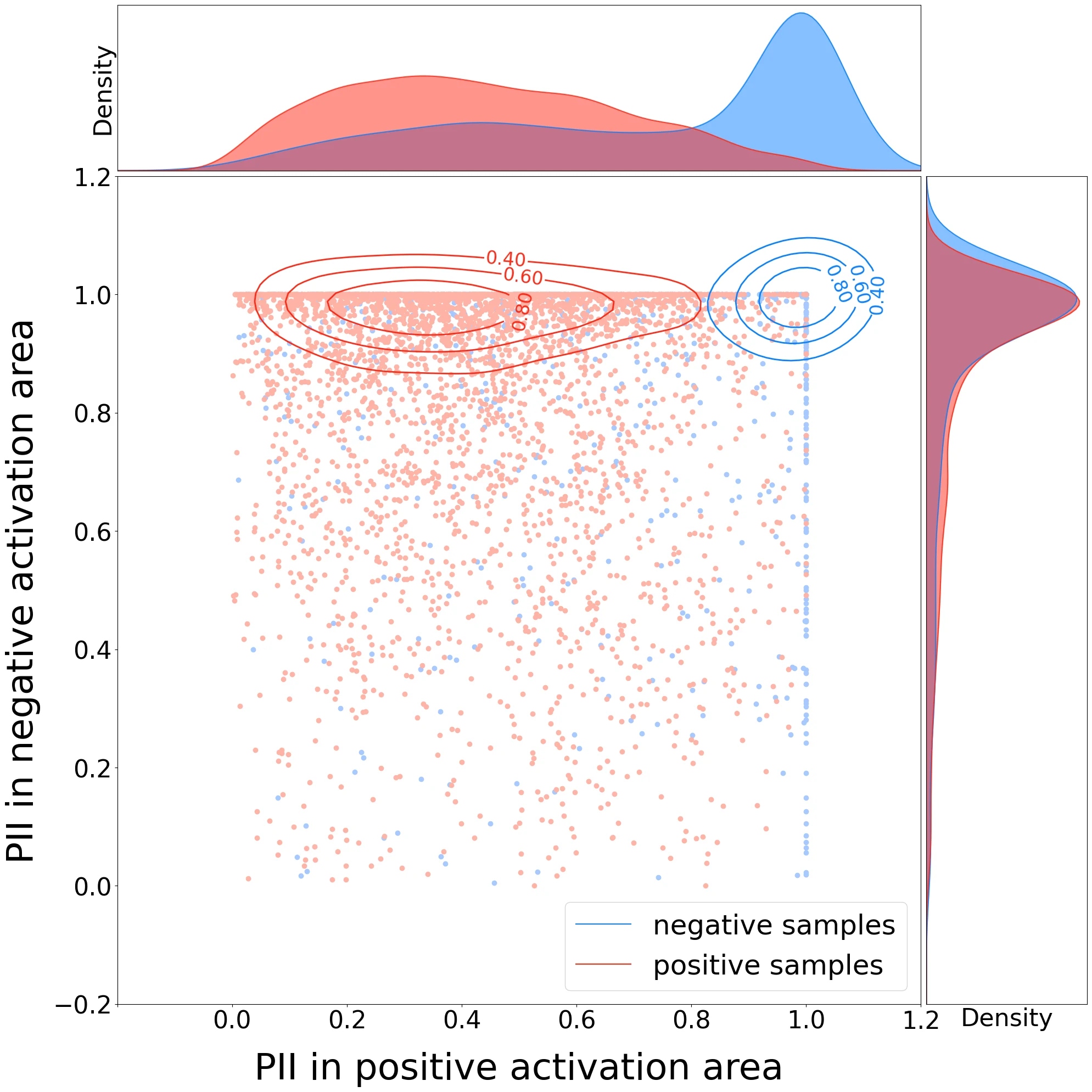

Comparing the predictive power of the three parameter sets was clear‑cut: the MFR mask performs as well as SHARP and far better than PIL. In other words, the neural network unerringly outlined regions that are genuinely rich in predictive information. A deeper dissection of the MFR with the imbalance index revealed a fascinating pattern. In regions that the network flagged as “flare‑prone” (positive Grad‑CAM activation), the polarity distribution was asymmetric but not absolute: the probability density peak of PII landed at 0,33—meaning the area of the dominant polarity is roughly twice that of the opposite polarity. Conversely, zones that calmed the network (negative activation) were nearly unipolar, with PII tending toward 1. This intermediate asymmetry is a classic signature of a magnetic configuration ready for magnetic reconnection and explosive energy release. It seems the Convolutional Neural Network intuitively absorbed this rule without ever hearing about Maxwell's equations.
Implications
This result is not just a pretty picture. It shows that deep models can acquire physical knowledge without having laws explicitly built in, merely by watching the “magnetic handwriting” of thousands of active regions. What’s more, physicists now have a tool that can point to previously unknown flare precursors—just by looking more closely at the zones the network highlights. Explainable AI methods are no longer a debugging tool; they have become a window into nature.
Future development
The next generation of solar telescopes—the 4‑meter DKIST and Solar Orbiter, which creeps three times closer to the Sun than Earth—will deliver magnetograms of unprecedented detail. Combined with finer XAI methods (Integrated Gradients, Shapley Additive Explanations), this will allow us to zoom into the microscopic magnetic knots that trigger a flare. Another direction is incorporating time series so that the network learns not only from static maps but also from the evolution of the magnetic “handwriting” in the hours before an event. Down the road, hybrid models may appear with Maxwell's equations hard‑wired into the architecture, promising breakthroughs in forecasting both the strength and the exact timing of an impact.
Impact
The practical payoff: early warning systems for airlines, satellite operators, and power companies, providing not just a probability forecast but a spatial threat map. In fundamental science, the method opens the way to unraveling the mechanism of solar flares and can be extended to other explosive phenomena—from magnetospheric substorms to giant flares on other stars.
Next steps
The immediate check: repeat the analysis on archives from the Japanese Hinode satellite and for more powerful M‑ and X‑class flares to confirm the universality of the polar imbalance pattern. It is equally important to track how PII changes in the hours leading up to an event—a sharp rise might become a new operational precursor.
Key open problems
Why one active region erupts while another, almost identical, stays quiet is a central riddle of solar physics. The subtle details of the three‑dimensional field structure and its evolution elude coarse‑grained parameters like those computed by SHARP. This study demonstrates that Convolutional Neural Networks capture critical spatial information, and XAI methods translate it into measurable quantities. It is a significant step toward solving the solar flare problem.
