Planetary Polarization Rings on Venus: A Possible Signature of Atmospheric Waves ✛
Context
Venus conceals a turbulent life beneath its thick cloud veil. Its super-rotation—the atmosphere spins 60 times faster than the surface—and giant gravity waves spotted by Venus Express and Akatsuki remain puzzles. Traditional methods like direct cloud imaging miss subtle disturbances above the clouds, where thin gas dominates. Polarimetry can catch these faint signals thanks to its high sensitivity to molecular scattering. Tracking such waves could shed Sun light on the mechanisms driving the planet’s atmosphere.
Methods

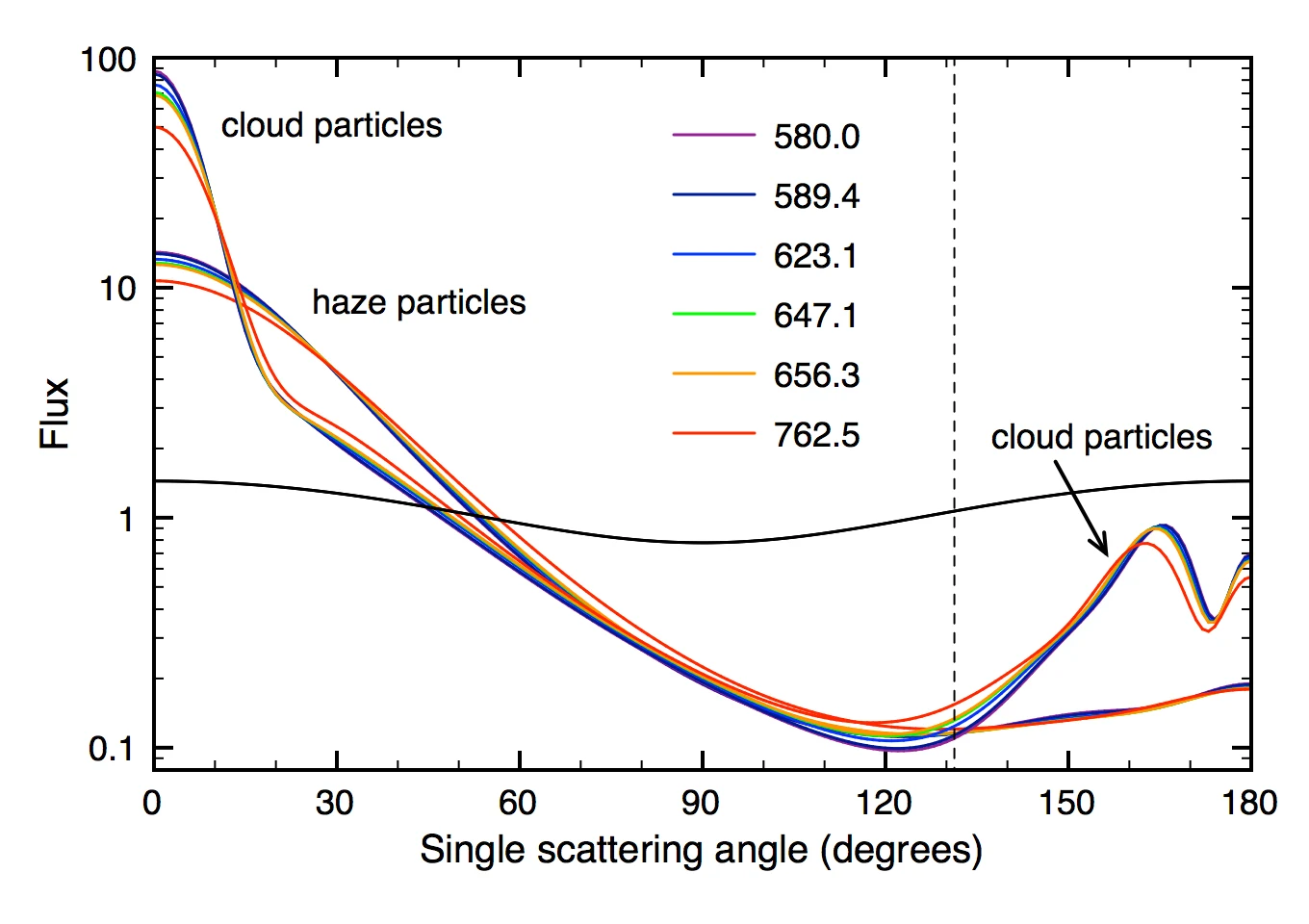

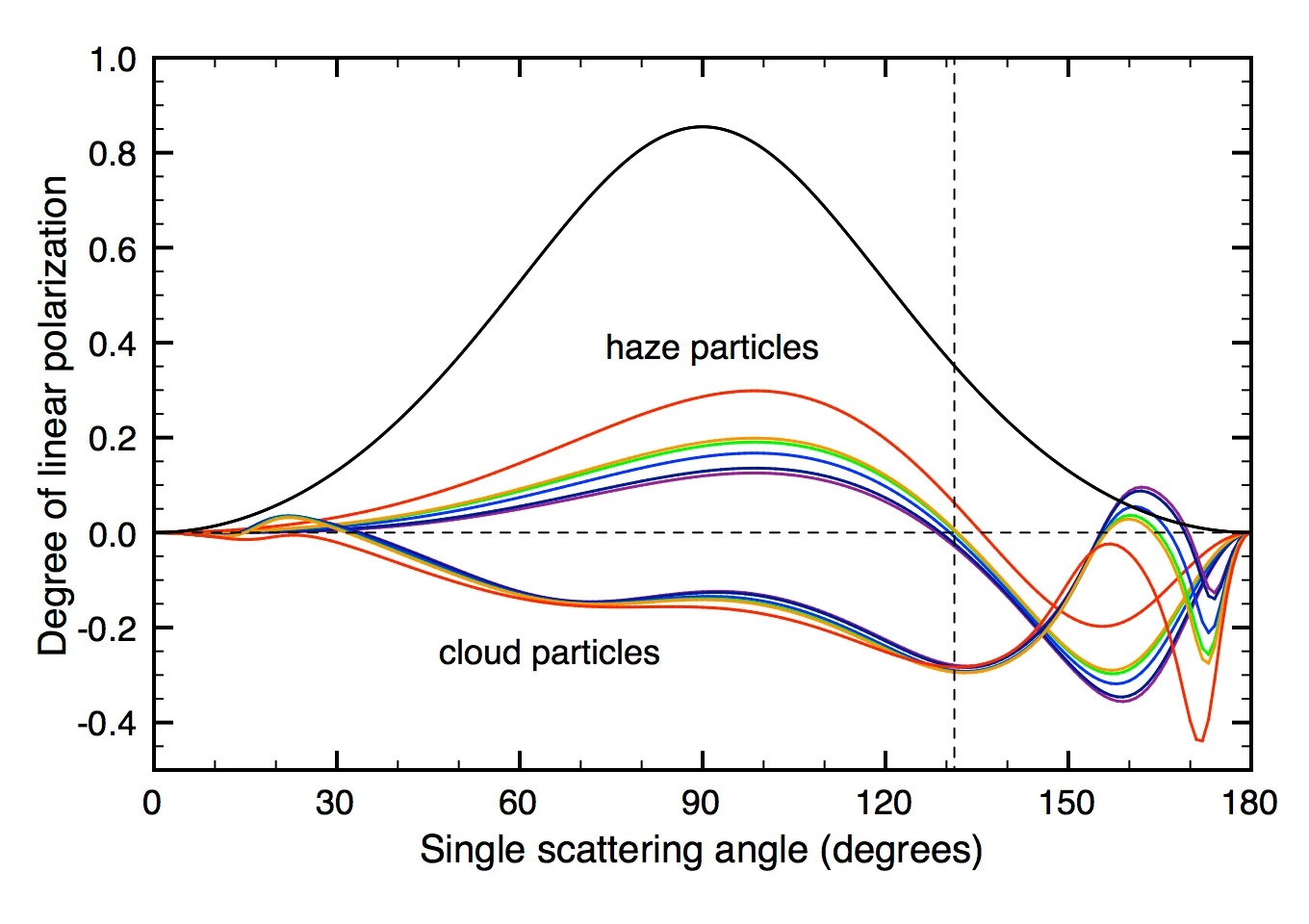

The ExPo (Extreme Polarimeter) instrument uses a dual-beam exchange technique that suppresses noise down to 10^(-4). Light is split into two orthogonal polarizations, then a fast switch swaps them, and the double difference removes systematic errors. Observations were made in six filters from 580 to 762 nm—essentially crude, low-resolution spectroscopy. For interpretation, a four-layer atmospheric model was built: the top layer is pure CO₂, below are layers with sulfuric acid droplets. Radiation transfer was computed with the adding-doubling algorithm, implemented in numerical simulation. Sinusoidal perturbations of gas density with a 10% amplitude were introduced to mimic a gravity wave. This approach was originally developed for exoplanet and exoplanet atmosphere studies.
Results

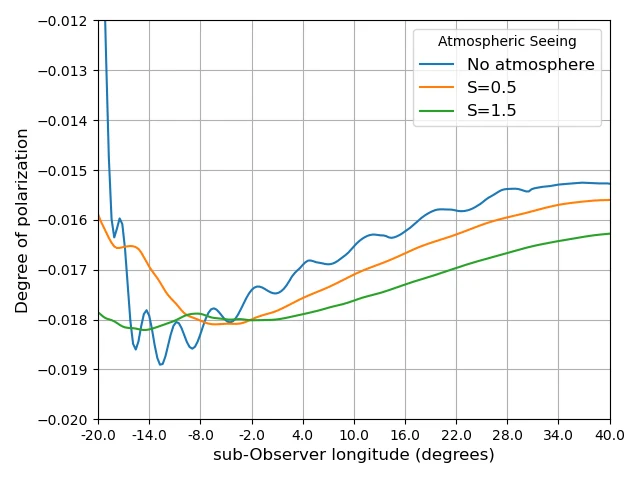

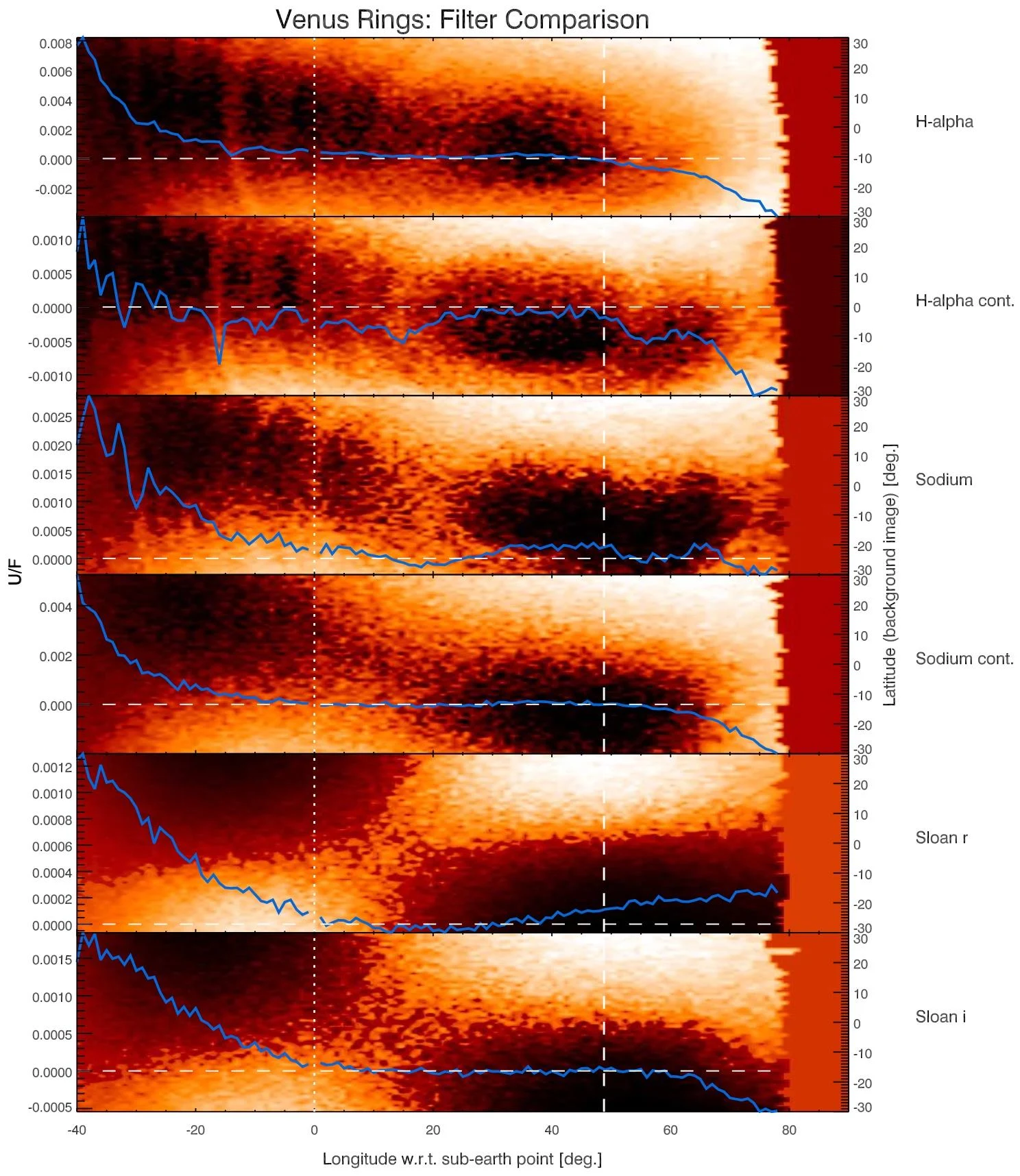

The polarized-light images revealed rings centered roughly 20° further from the sub-solar point. Their amplitude—about 5·10^(-4) of the peak brightness—is barely perceptible. Nothing similar appears in the total flux. The model reproduced this contrast: gas density variations alter the fraction of singly scattered light, which is highly polarized, while barely affecting the total flux. The rings are visible only in the first three filters; in longer-wavelength and broader filters, the signal vanishes—the model attributes this to the drop in Rayleigh scattering sensitivity with wavelength, as well as deteriorated visibility due to airmass and seeing. The spatial scale of the waves varies: from ~100 km near the terminator to ~900 km near the sub-solar region.
Implications
Detecting such waves—even as a candidate—would mean that polarimetry can probe the dynamics of Venus’s upper atmosphere without diving into it. This would complement gravity wave data from Pioneer Venus and other missions. If the rings are confirmed, their characteristics—wavelengths of several hundred kilometers, fading toward the terminator—hint at generation near the sub-solar point and propagation toward the anti-solar point, which is crucial for understanding super-rotation.
Future development
Future polarimetric campaigns could advance this topic. EnVision (launch in 2032) will carry the Venspec-H spectropolarimeter, but in the near-infrared the signal will be weaker. Ground-based observations with more advanced polarimeters could track the rings at different phase angles, especially around 90°, where contrast peaks. The Korean CLOVE cubesat also promises Venus polarimetry. Modeling should incorporate realistic stratification and nonlinear wave dynamics.
Impact
The discovery would impact planetary science, atmospheric physics, remote sensing methods, and even the search for biosignatures on exoplanets—similar polarimetric approaches are used to study the atmospheres of distant worlds.
Next steps
Independent observations with other high-precision polarimeters are needed to confirm or refute the rings’ existence. Detailed feedback modeling could better constrain the wave parameters.
Key open problems
The phenomenon touches on open questions in Venus physics: the super-rotation mechanism, gravity wave dissipation and their role in angular momentum transport, and the broader issue of stratification and mixing in planetary atmospheres.
The knowledge machine's view
This section is addressed to the author of the paper and their colleagues. Neighbouring works were found by meaning-based search across our archive, not by word overlap. We do not review: we show the field around the work.
What the work does
The paper analyzes archival polarimetric observations of Venus with the ExPo instrument. Candidate concentric rings in polarized light were detected, which the authors associate with atmospheric gravity waves. A numerical radiative transfer model of a four-layer atmosphere was built, reproducing the observed contrast through gas density perturbations.
Where its strength is
The strength of the work lies in demonstrating that polarimetry with extreme stray-light suppression can capture the subtle dynamical structure of Venus's upper atmosphere, which is inaccessible to conventional methods. This opens a new observational channel for studying wave processes on planets with thick atmospheres.
Where it could go next
- It might be interesting to compare the detected polarization rings with the gravity-wave pattern discussed in a neighboring work that considers how gravity modifies wave properties. This could help clarify which wave modes are responsible for the observed pattern.based on: How Gravity Repaints Gravitational Waves arXiv:2607.24091
- Nearby is a study of polarization effects near black holes, where the object's spin imprints a polarization pattern. Although the context is different, the methodological approach to extracting weak polarization signals from noise could be useful for improving ExPo data processing.based on: Black Hole Spin Paints a Polarization Pattern arXiv:2606.12518
- To test the hypothesis linking the rings to density waves, one could adapt the periodicity search technique developed in the work on an axion receiver in binary stars. That work analyzes time series, but similar methods could help extract spatial wave frequencies from polarimetric maps.based on: Axion Receiver: Binary Stars Guarding Dark Matter arXiv:2607.04550
Worth trying
- Test on model data an algorithm for extracting spatial frequencies from polarization maps, similar to the one used to search for periodic signals in work 2607.04550.
- Check whether polarization rings can recover not only the amplitude but also the phase velocity of the waves, using approaches from the work on the influence of gravity on gravity waves (2607.24091).
- Compare the sensitivity of the ExPo method to waves of different scales with the sensitivity achieved in polarimetric observations of black hole accretion disks (2606.12518) to assess detection limits.
Why this may matter
Confirming the polarimetric detection of atmospheric waves would provide a new tool for remote sensing of planetary atmospheric dynamics, which is important for understanding Venus's super-rotation and, in the long run, for studying exoplanets.
Nearby works in our archive
- How Gravity Repaints Gravitational Wavessimilarity 0.62
- Striped Ocean: How Rotation Reshapes Heat on Icy Moonssimilarity 0.62
- A Charged Black Hole Changes the Lifetime of a Particle Cloudsimilarity 0.61
- Magnetars as Gravitational Echoessimilarity 0.61
- Axion Receiver: Binary Stars Guarding Dark Mattersimilarity 0.61
- Black Hole Spin Paints a Polarization Patternsimilarity 0.61
The closest work in the archive sits at 0.62 by meaning — the usual level for our corpus.
Original abstract
as written by the authors arXiv:2607.16557v1
We report observations of faint ($$10^{-6}$$), concentric, planet-wide rings in the polarized flux of sunlight that is reflected by Venus, obtained during a serendipitous, 36-minute run in 2010, with the highly sensitive Extreme Polarimeter (ExPo) on the William Herschel Telescope. The rings appear to be centered slightly downwind of the sub-solar point, are visible in different filters across the visible, and are not obvious in the simultaneous total flux observations. ExPo's dual-beam exchange and double-differencing design strongly suppresses first-order instrumental polarization, and we could not identify an instrumental cause of the observed pattern. Because ExPo was dismantled before the rings were identified in the data, this is the only set of observations of these rings. We are therefore careful in claiming the detection of a new atmospheric phenomenon on Venus. However, numerical radiative transfer simulations show that planet-wide rings in polarization can arise due to density variations of 5 to 10% in the gas above the clouds, consistent with a gravity wave. Our simulations also show that such density variations would not show up in total flux observations. By presenting our observations and numerical simulations, we hope to motivate new polarimetric observations of Venus that could confirm or refute the presence of such planet-wide waves.
ExPo was originally built to detect exoplanets by their polarized light, but instead it may have uncovered hidden waves on Earth’s closest neighbor. After that single observing run, the instrument was dismantled for parts, making its data one-of-a-kind.
Key numbers
- ExPo sensitivity: 10-4
- ring amplitude in polarized flux: 5·10-4
- gas density variations: 5–10%
- Venus phase angle: 48.7°
- ring wavelengths: from 100 to 1000 km
