GlitchGAN: Synthesizing Temporal Glitches of Gravitational-Wave Detectors ✛ ✦
Context
Gravitational-wave astronomy, enabled by LIGO and Virgo detectors, has allowed us to observe mergers of black holes and neutron stars across the Universe. But the unprecedented sensitivity of these instruments makes them vulnerable to transient noise glitches—whose varied morphologies can masquerade as astrophysical gravitational-wave signals. As detection rates rise and next-generation observatories (Einstein Telescope, Cosmic Explorer) come online, glitches will overlap with real signals more frequently, threatening the accuracy of source parameter estimation. Realistic glitch synthesis with machine learning has become critical for validating analysis pipelines and generating mock data.
Methods
GlitchGAN is built on a class-conditional generative adversarial network based on the cDVGAN architecture. The generator takes a noise vector and a class vector and outputs a time series of 8,192 samples. Training used 31,511 glitch reconstructions of seven types (Blip, Fast Scattering, Koi Fish, Low Frequency Burst, Scattered Light, Tomte, Whistle) produced by the DeepExtractor neural network from LIGO O3 data. Unlike standard GANs, cDVGAN includes an additional discriminator operating on the signal's time derivative, which stabilizes training and suppresses unphysical high-frequency artifacts. The model trained for 500 epochs on an NVIDIA A100 GPU, and epoch 210 was manually selected from checkpoints for best visual quality and UMAP distribution overlap.
Results

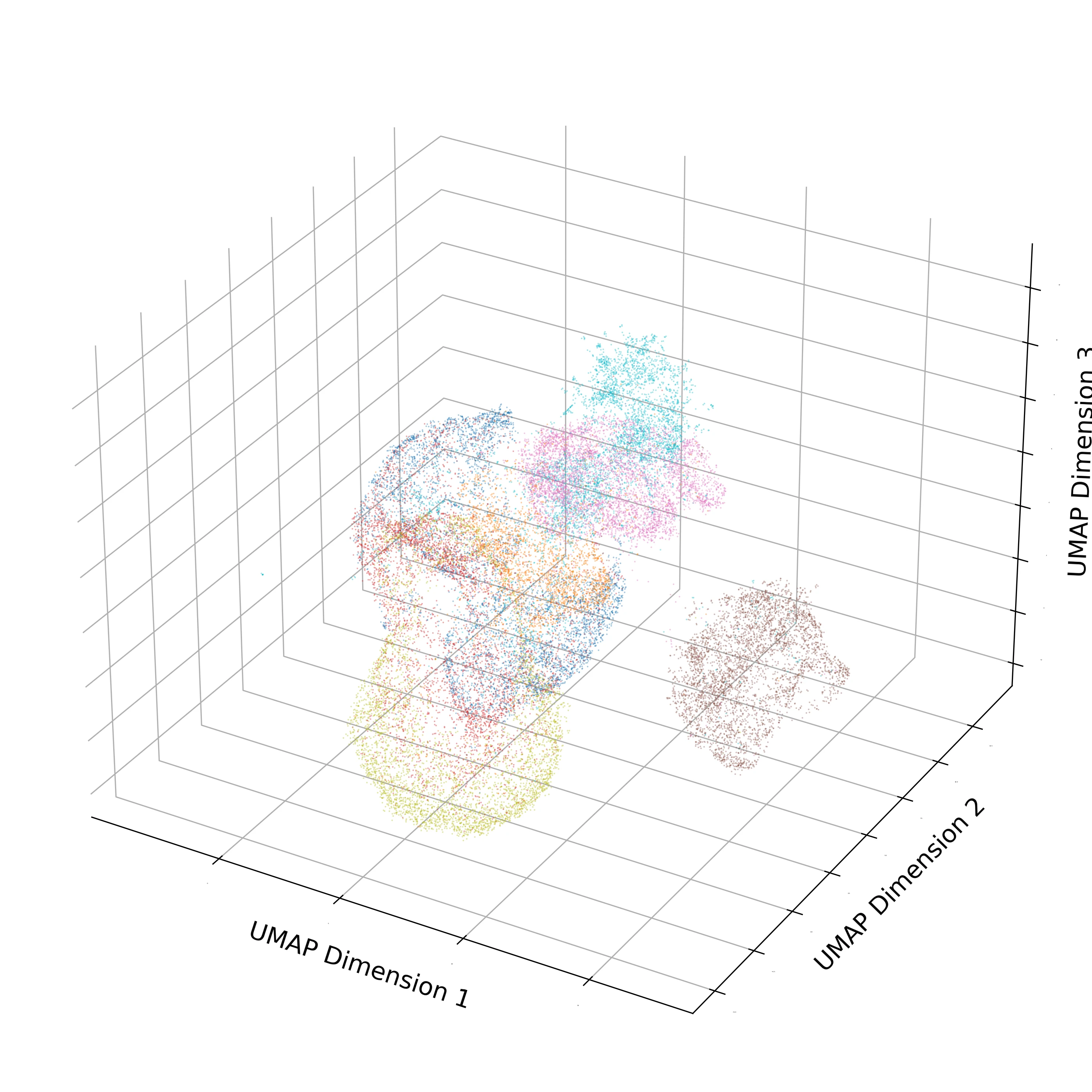

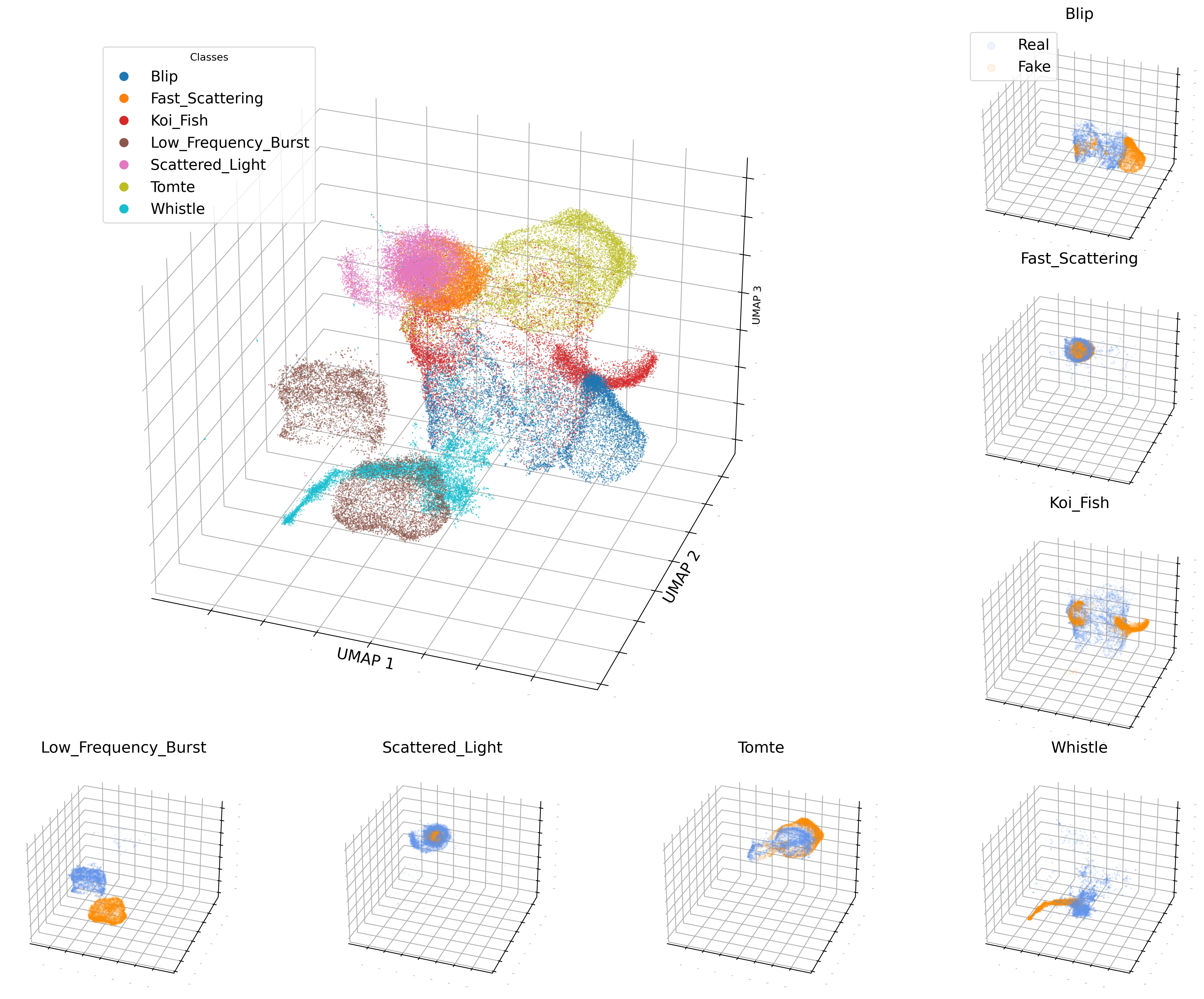

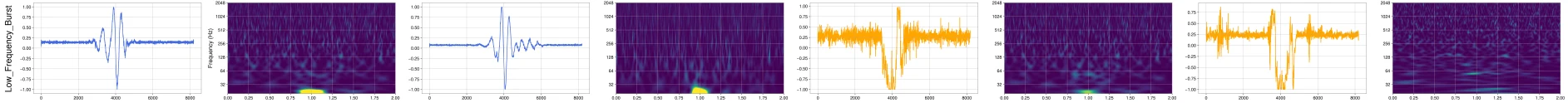

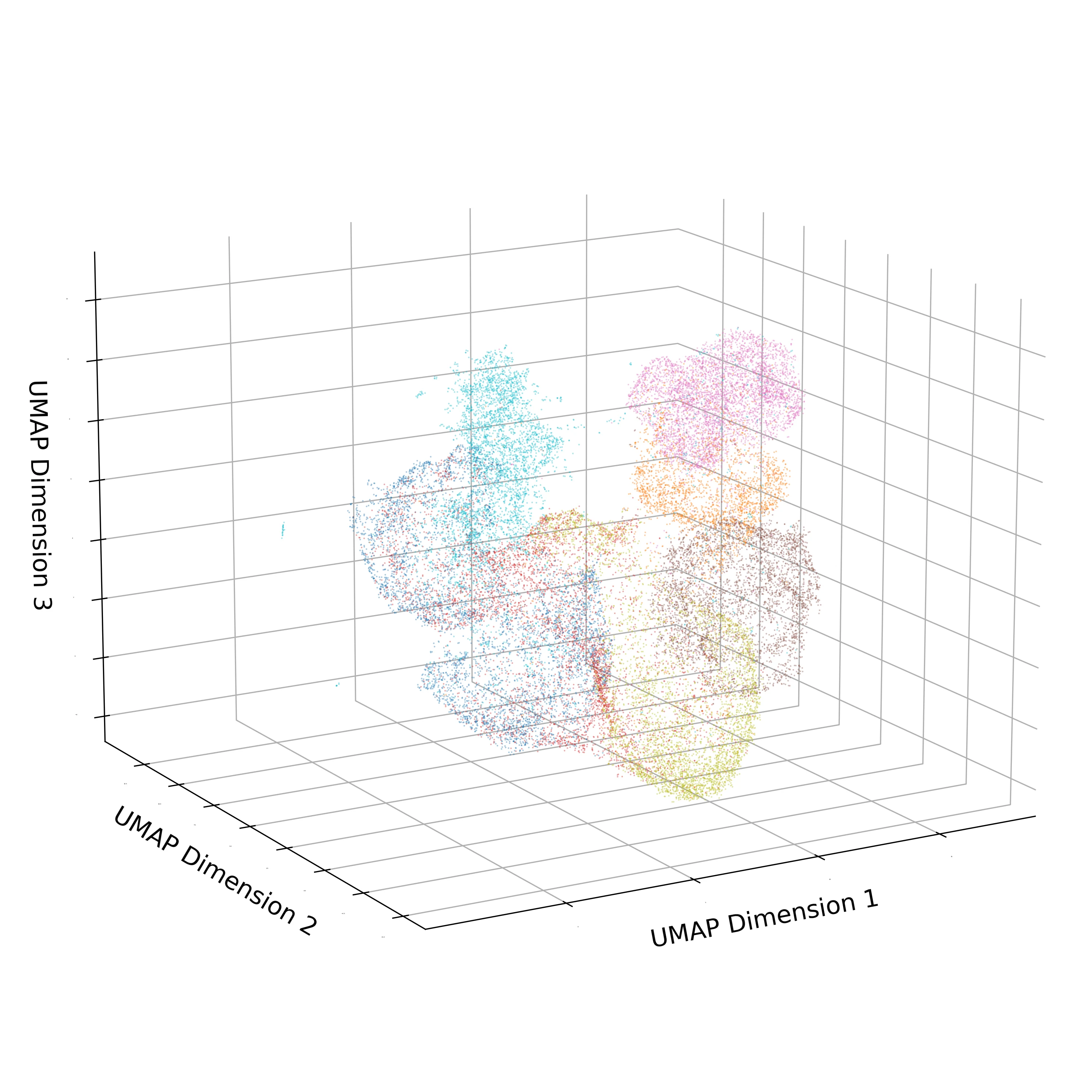

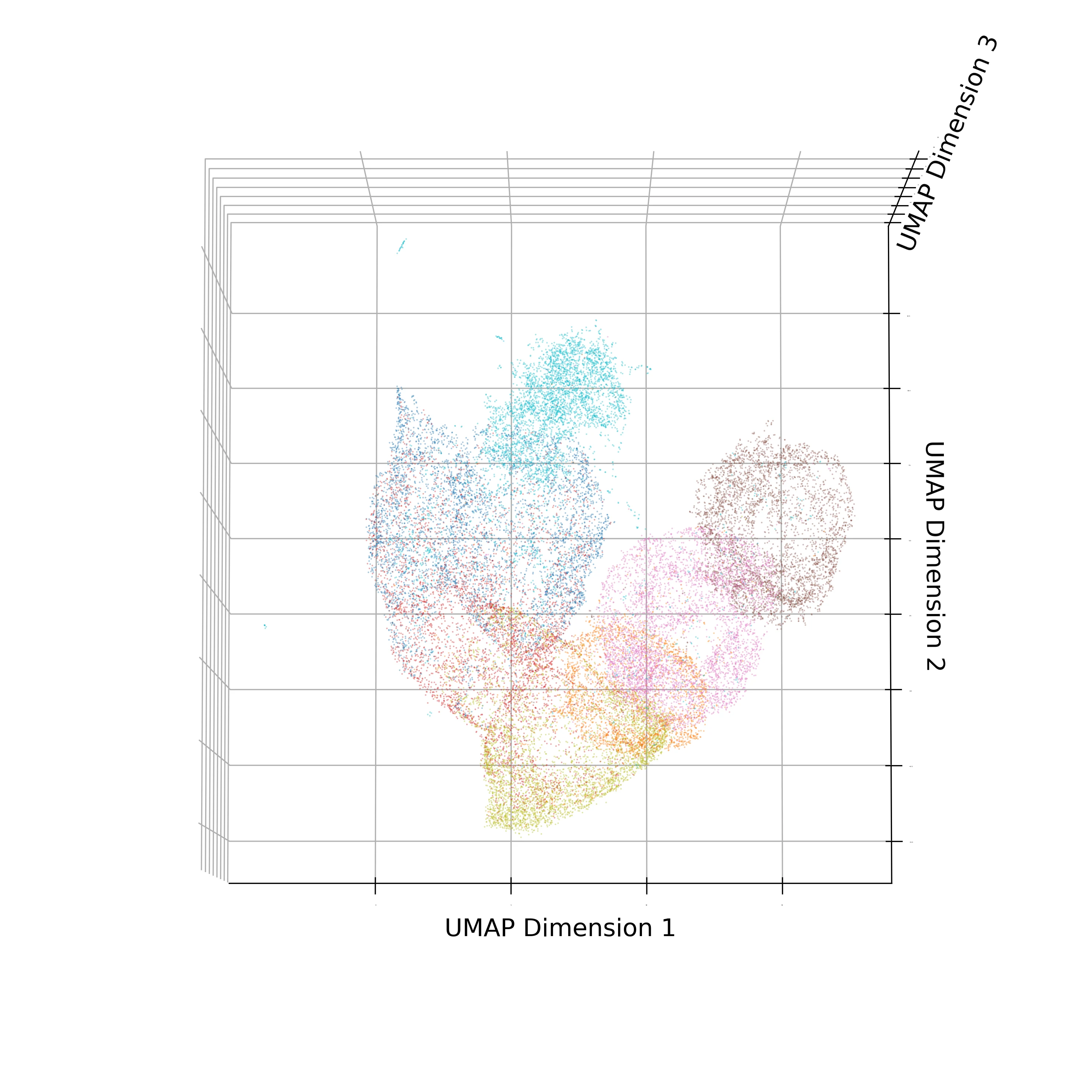

The Gravity Spy classifier, widely used by the gravitational-wave community to label glitches, correctly identifies 79% of GlitchGAN's synthetic samples with mean confidences above 90%. Q-transform analysis (time-frequency spectrograms) and UMAP projections show significant overlap between real and synthetic data distributions for most classes. The exception is the high-frequency Whistle glitch, whose structure isn't fully reproduced—likely due to insufficient receptive field size of convolutional layers. GlitchGAN can also generate transitional and hybrid morphologies by interpolating the class vector, opening new avenues for testing algorithm robustness. A key limitation is demonstrated with a diffusion model: glitches unrealistic in the time domain nonetheless earned high Gravity Spy confidence because phase information is lost in spectrograms. This underscores the need to supplement validation with phase-preserving methods like UMAP on raw signals.
Implications
This work shows that a single generative model can capture the complex, multi-modal noise distributions of detectors without resorting to parametric approximations. GlitchGAN enables scalable synthesis of instrumental artifacts for realistic numerical simulation of detectors and elaborate mock-data challenges—crucial for preparing for next-generation observatories. The failure of purely magnitude-based validation forces a rethink of standard quality assessment for synthetic data in astrophysics and beyond.
Future development
Future improvements may include attention mechanisms and dilated convolutions to better capture structures across scales. Plans include expanding the glitch class set to include rare types and developing metrics that directly assess phase consistency. Conditional generation will allow controlling not just glitch type but also duration and signal-to-noise ratio, making the tool even more versatile.
Impact
The approach directly impacts gravitational-wave astronomy (pipeline validation, data simulations), time-series analysis in particle physics, and the field of machine learning (evaluating generative models).
Next steps
Next steps include hyperparameter optimization for the Whistle class, integration into LIGO-Virgo-KAGRA mock-data pipelines, and testing on data from the fourth observing run O4.
Key open problems
The challenge of realistic noise synthesis ties into fundamental issues of non-stationary and non-Gaussian noise in precision measurements, echoing unsolved problems in quantum metrology and weak-signal detection theory. The ability to fool magnitude-based classifiers raises a philosophical question about the 'realism' of synthesized data, demanding objective similarity measures that preserve causal-phase structure.
The knowledge machine's view
This section is addressed to the author of the paper and their colleagues. Neighbouring works were found by meaning-based search across our archive, not by word overlap. We do not review: we show the field around the work.
What the work does
The paper presents GlitchGAN, a class-conditioned generative adversarial network based on cDVGAN, trained on 31,511 glitch reconstructions of seven types from LIGO O3 data. The model generates time series of length 8,192 samples and can interpolate the class vector to produce transitional morphologies. The Gravity Spy classifier recognizes 79% of synthetic samples with an average confidence above 90%, and UMAP projections show significant overlap between real and synthetic data distributions, except for the Whistle class.
Where its strength is
The strong point is demonstrating that a single generative model can reproduce multimodal glitch distributions and create hybrid morphologies, paving the way for systematic robustness testing of gravitational-wave data analysis algorithms.
Where it could go next
- It might be interesting to see how synthetic glitches affect parameter estimation of astrophysical signals; in our archive there is a related work where a neural network separates real signals from false ones, which resonates with the task of testing detectors for honesty.based on: Cosmic Mimicry: Neural Network vs Gravitational Twins arXiv:2607.15913v1
- There is also an approach using satellite constellations for gravitational-wave detection; possibly transferring the glitch synthesis approach to future detectors like LISA could help prepare analysis pipelines in advance.based on: Space Tuning Fork: How Satellites Catch Gravitational Waves arXiv:2607.18390v1
- The archive contains a work on a noise filter for gravitational waves; integrating GlitchGAN into the training loop of such a filter could improve its robustness to diverse glitch morphologies.based on: A Noise Filter for Gravitational Waves arXiv:2607.09111
Worth trying
- Test glitch generation with controlled phase structure to circumvent the limitation identified with the diffusion model.
- Investigate how adding synthetic glitches to the Gravity Spy training set affects classification accuracy for rare classes such as Whistle.
- Use class-vector interpolation to create a dataset with a continuous spectrum of morphologies and assess the robustness of parameter estimation algorithms.
Why this may matter
Developing realistic glitch synthesis is important for preparing for third-generation detectors, where noise overlaps with signals will become more frequent, and for ensuring the reliability of discoveries in gravitational-wave astronomy.
Nearby works in our archive
- A Noise Filter for Gravitational Wavessimilarity 0.71
- Two Signals in the Universe's Noisesimilarity 0.66
- Cosmic Mimicry: Neural Network vs Gravitational Twinssimilarity 0.62
- AI Learns to Listen to Black Holes: A Simple Recipe for Gravitational Wavessimilarity 0.62
- The Spectral Butterfly Effect in Thick Branessimilarity 0.62
- Space Tuning Fork: How Satellites Catch Gravitational Wavessimilarity 0.61
The archive is crowded around this work: 2 reviews nearby, closest at 0.71. This ground is well walked — and there is plenty to compare against.
Original abstract
as written by the authors arXiv:2606.27227
Gravitational-wave detectors are highly sensitive instruments susceptible to numerous noise sources. Short-duration transient noise events, known as glitches, pose a particular challenge for data analysis pipelines as they can mimic or obscure astrophysical signals. We present GlitchGAN, a class-conditional generative model that is capable of synthesizing realistic glitches directly in the time domain. The model is trained on high-quality reconstructions of seven common glitch types observed during LIGO's third observing run (O3): Blip, Fast Scattering, Koi Fish, Low-Frequency Burst, Scattered Light, Tomte, and Whistle. We show that GlitchGAN generalizes effectively, learning to reproduce a diverse and physically consistent glitch space directly from these reconstructions. Moreover, because the model is conditioned on glitch class, it can generate \textit{hybrid} or transitional glitch morphologies by interpolating across the class-conditioning vector after training. GlitchGAN generates 1000 glitches in under 22 seconds on a CPU, making it suitable for large-scale glitch synthesis for detector simulations, mock data challenges, and pipeline validation. Synthetic glitches are validated against real glitches using the Gravity Spy classifier, widely used in the GW community for glitch classification, and an unsupervised analysis using UMAP embeddings. Gravity Spy classifies the majority of GlitchGAN's synthetic glitches as the correct class while the UMAP analysis shows substantial overlap between real and synthetic samples in the reduced latent space. We further highlight a critical limitation of magnitude-only spectrograms: classifiers operating on magnitude $$Q$$-transforms can confidently misclassify physically unrealistic glitches from less robust models, underscoring the need for complementary validation methods that preserve phase information.
LIGO's glitch class names sometimes draw from animal life and folklore: Blip is a burst, Koi Fish resembles a carp, and Whistle is, well, a whistle.
GlitchGAN's ability to blend classes echoes the 'glitch in the Matrix' concept, where anomalies in a simulation reveal its artificial nature.
Key numbers
- Generation speed: 1,000 glitches in 22 seconds on CPU
- Gravity Spy classification accuracy: 79%
- Training set (after balancing): 35,000 samples
- Glitch classes: 7
- DeepExtractor correctly classified reconstructions: 89.6%
