Cosmic Echo: A 600-Million-Galaxy Map Confirms Dark Energy ✛
Context
600 million galaxies — that's how many objects from the WISE telescope went into building a new map of the infrared sky. This map became the second instrument that let us hear the faint echo of dark energy in the cosmic microwave background. Ever since Georges Lemaître and Edwin Hubble discovered the expansion of the universe, governed by Hubble's law and the Friedmann equations, we've known the cosmos isn't static. But the real upheaval came in the late 1990s, when Saul Perlmutter and his colleagues, observing supernovae, found that the expansion is accelerating. The culprit is dark energy, making up about 70% of all energy in the universe. But what exactly it is remains a mystery. Most tests measure the geometry of the universe — that is, how distances change over time. Far more exciting is a 'dynamical' test: checking how dark energy slows down the growth of cosmic structures. That's the test researchers have been chasing for decades through the Sachs–Wolfe effect.
Methods

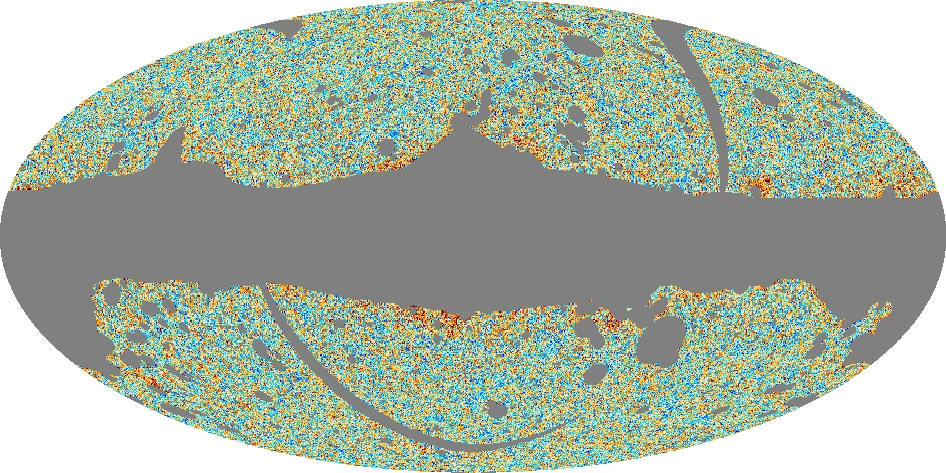

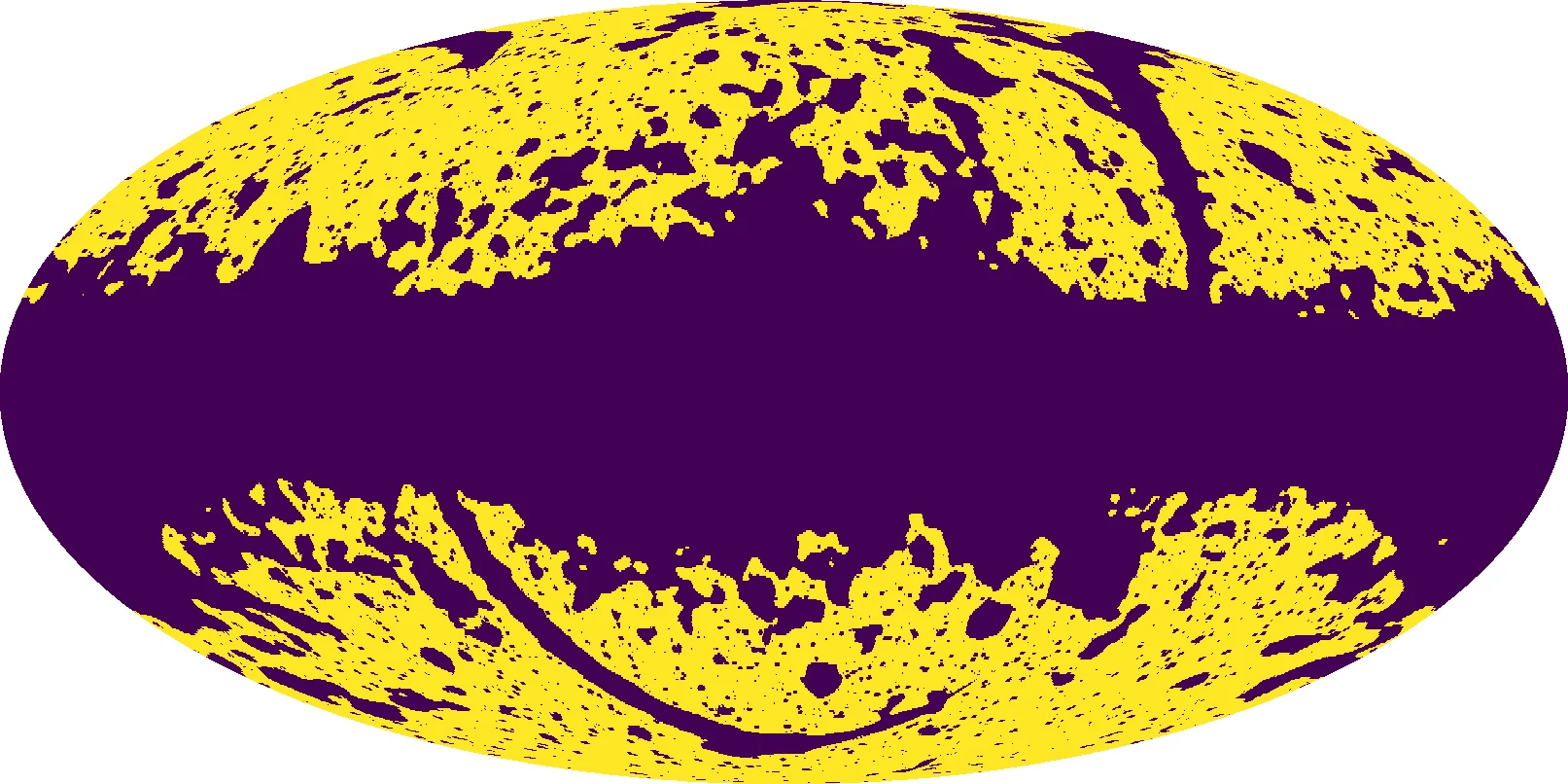

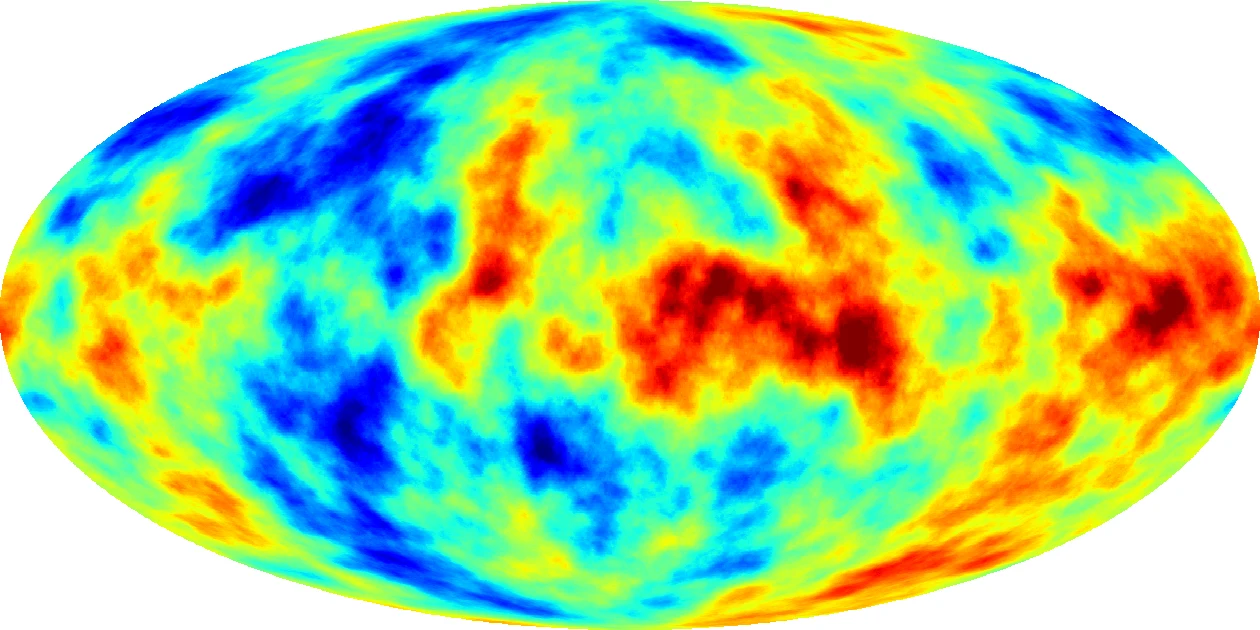

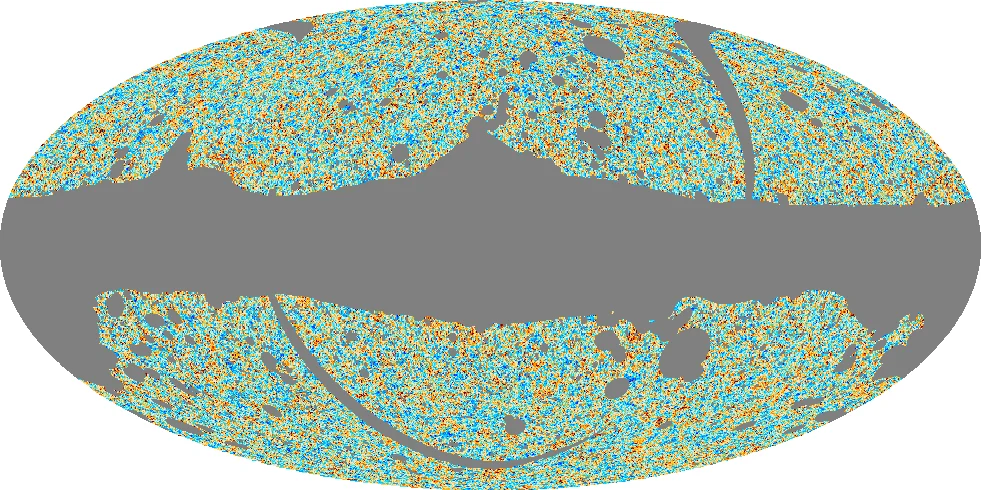

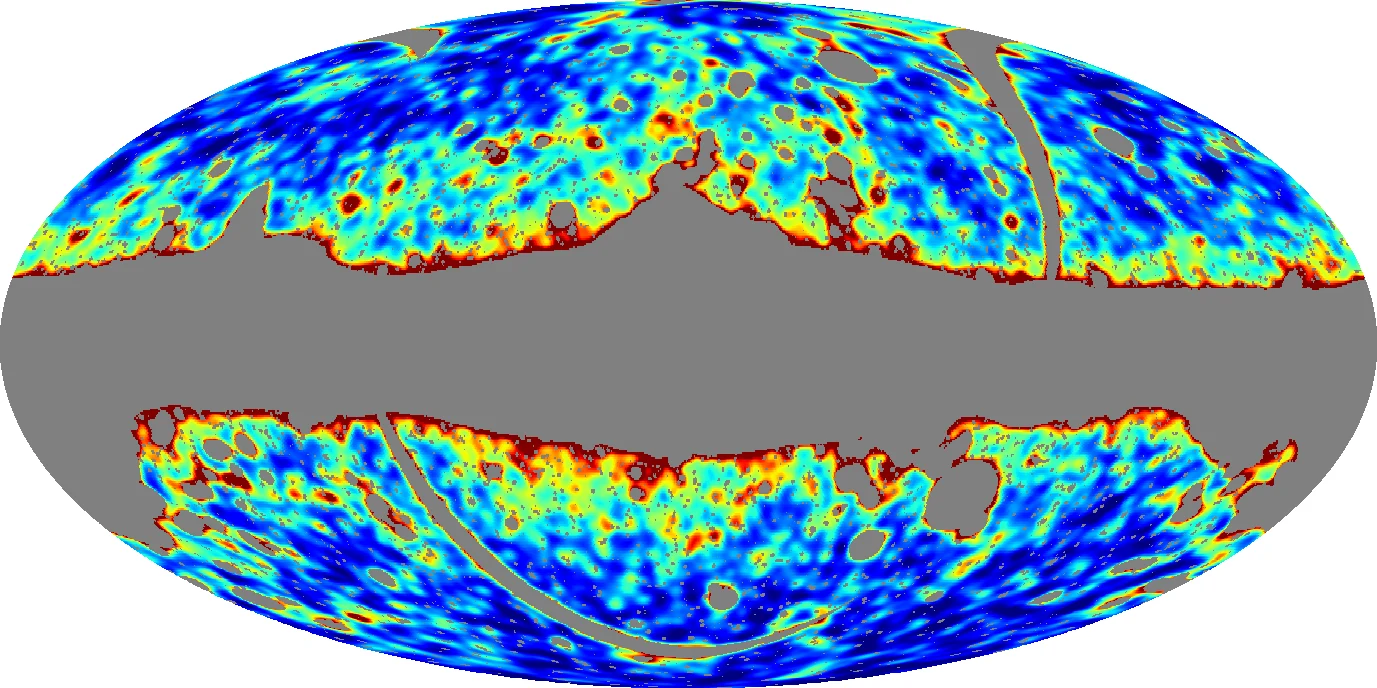

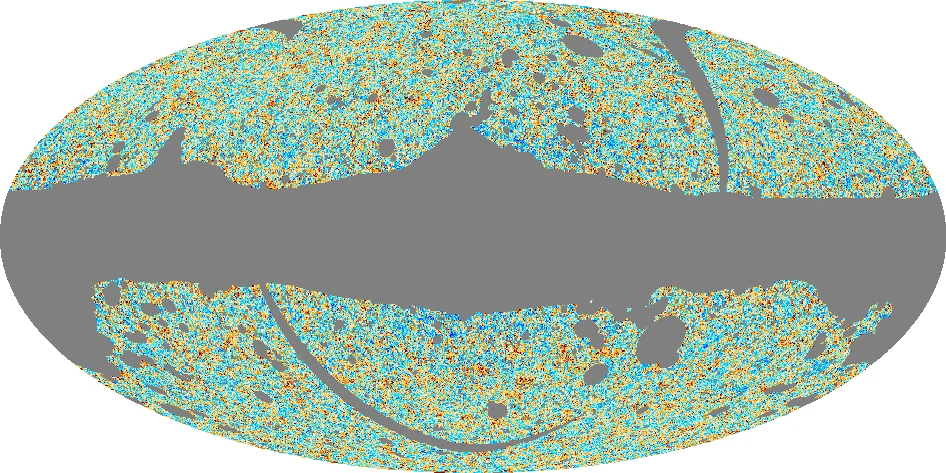

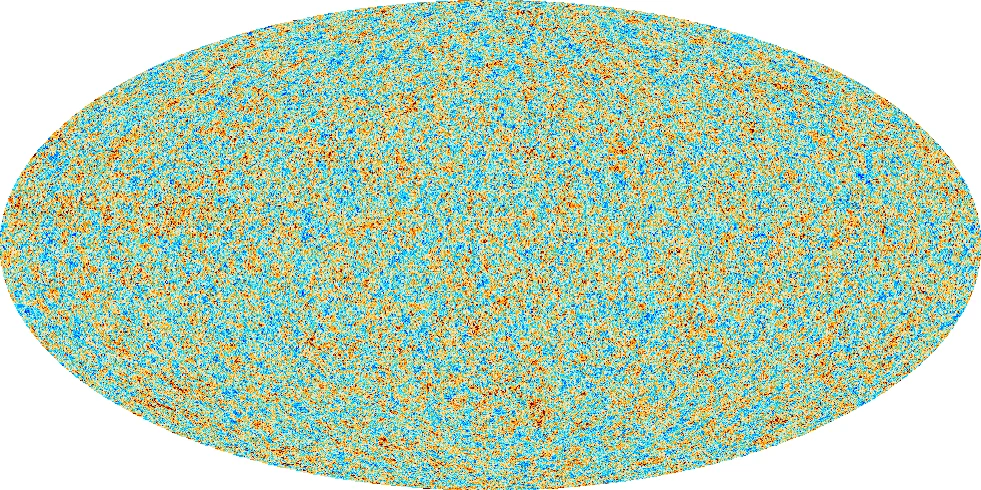

The study used two types of maps. The first is the cosmic microwave background (CMB) recorded by the Planck satellite — light emitted 380 000 years after the Big Bang. The second is the infrared background (CIB), reconstructed from data on 600 million galaxies observed by the WISE telescope using cross-correlation techniques. The CIB acts as a map of galaxy distribution out to redshift z≈2.5. The core idea: as CMB photons travel through the gravitational wells of galaxy clusters, their energy changes slightly. If the potential well deepens or shallows over time, the photon picks up a net shift — this is the integrated Sachs–Wolfe effect (ISWRS). To tease out the weak signal against the background of primordial CMB fluctuations, the team deployed a fresh statistical trick: the k-nearest neighbors method, which analyzes not just pairwise correlations but accounts for higher-order clustering — like a trained ear picking out an echo in complex noise. The maps were smoothed with a filter radius of 0.1–0.9 degrees, masked for contaminated regions (leaving 49% of the sky), and the fraction of pixels above thresholds of 50%, 70%, and 90% was counted. The covariance matrix was estimated from 200 realizations of random CMB and CIB maps, while ΛCDM predictions were generated in the massive N-body simulation Millennium-XXL, with halos painted with infrared brightness.
Results
The cross-correlation function ψ showed positive correlation in all nine threshold combinations. Individually, angular bins departed from the null hypothesis at 1.8–4.1σ. The combined analysis of 45 data points gave χ²-null ≈ 66.6 (2.3σ) — a conservative estimate that doesn't assume knowledge of the signal shape. But when the data were compared to ΛCDM predictions from the simulation, the amplitude came out as A-kNN = 0.95±0.20. This means the real signal matches the expectation with a significance of 4.8σ — a 20% improvement over the classic two-point analysis of the same data. The result is robust: the amplitude barely depends on the error estimation method and fluctuates only slightly under moderate clipping of the distribution tails.
Implications
The 4.8σ result is convincing evidence that the ISW signal is genuinely detected, and in a dynamical test mode. This isn't yet another geometry-based parameter measurement; it's a direct glimpse at how dark energy influences structure growth through the Einstein field equations. The agreement with ΛCDM at the current precision (~20%) does not rule out moderate deviations, but the method has proven its mettle. Cosmologists now have an independent tool to probe the nature of dark energy, one that doesn't rely on supernovae or baryon acoustic oscillations.
Future development
The next step is a tomographic analysis. By splitting the CIB map into two layers (a near one at z~0.3–0.7 and a far one at z~0.7–2.2), the authors already obtained preliminary amplitudes of 1.41±0.47 and 1.66±0.81, so far consistent with ΛCDM. But the statistics are still weak. With the upcoming SPHEREx survey, which will deliver multi-color infrared all-sky maps, the CIB can be sliced into dozens of thin epochs. This will let us trace the history of structure growth — both its deceleration and acceleration — with unprecedented detail, and perhaps glimpse the evolution of the equation-of-state parameter w, the key parameter of dark energy.
Impact
The method directly impacts observational cosmology, opening a new window to test dark energy theories, including modified gravity and models with variable w. It also spurs the development of machine-learning algorithms for processing astronomical maps.
Next steps
Refine the covariance matrices to account for CIB reconstruction errors and extend the analysis to currently unused patches of sky with adaptive weighting. Integrate temperature maps with the primary signal subtracted using polarization E-modes.
Key open problems
The work is directly tied to the mystery of cosmic acceleration — one of the great unsolved problems in fundamental physics. Dark energy could be a cosmological constant, a dynamic field (quintessence), or an illusion caused by a modification of Einstein field equations on large scales. The ISW test provides a lever to distinguish among these scenarios.
The knowledge machine's view
This section is addressed to the author of the paper and their colleagues. Neighbouring works were found by meaning-based search across our archive, not by word overlap. We do not review: we show the field around the work.
What the work does
The study cross-correlates the cosmic infrared background (CIB) map from 600 million WISE galaxies with the Planck cosmic microwave background map. Using the k-nearest neighbors method, the cross-correlation is measured to isolate the integrated Sachs–Wolfe effect. The resulting amplitude is A-kNN = 0.95±0.20, consistent with ΛCDM.
Where its strength is
Applying the k-nearest neighbors method to the ISW effect captures non-Gaussian signals from the nonlinear evolution of structures, enhancing sensitivity to dark energy properties compared to standard two-point correlations.
Where it could go next
- It might be interesting to compare the obtained constraints on the structure growth rate with results extracted from galaxy cluster maps with double precision. That uses a different tracer of large-scale structure, which would allow cross-checking the consistency of conclusions about dark energy.based on: A Double-Precision Map of Galaxy Clusters arXiv:2606.30713
- A related work studies dark energy variability through quasar flickering. Your kNN-ISW method could be adapted to search for temporal evolution of the equation of state w(z) on the same CIB data, providing an additional test of ΛCDM stability.based on: The Twinkling of Quasars and the Variable Dark Energy arXiv:2512.07931
Worth trying
- Apply the kNN method to eROSITA data for the X-ray background to extract the ISW signal on smaller angular scales and increase statistical significance.
- Test the kNN technique on simulated ISW maps with various dark energy models (wCDM, interacting dark energy) to assess sensitivity to deviations from ΛCDM.
- Combine kNN analysis of CIB×CMB with CMB lensing on the same Planck maps to jointly constrain structure growth and geometry.
Why this may matter
If the kNN-ISW method proves robust on independent data, it could become a standard tool for dynamical tests of dark energy, complementing geometric methods and improving the precision of the equation-of-state determination.
Nearby works in our archive
- Gamma Glow of an Invisible Spheresimilarity 0.66
- The Twinkling of Quasars and the Variable Dark Energysimilarity 0.64
- Gravitational waves measure the expansion rate of the universesimilarity 0.64
- A Dark Deal: How the Universe Reconciles Its Clockssimilarity 0.63
- How to Weigh the Universe with Color-Coded Tagssimilarity 0.63
- A Cosmic Ruler Made of Seventeen Lensessimilarity 0.62
- A Double-Precision Map of Galaxy Clusterssimilarity 0.61
The closest work in the archive sits at 0.66 by meaning — the usual level for our corpus.
Original abstract
as written by the authors arXiv:2607.19648v1
The physical origin of cosmic acceleration remains one of the central questions in modern cosmology. The integrated Sachs-Wolfe (ISW) and Rees-Sciama (RS) effects, which arise from the evolution of gravitational potentials, provide a dynamical test of cosmic acceleration. We measure the cross correlation between the Planck temperature map of the cosmic microwave background (CMB) and a foreground-free map of the $$100\,\mu\mathrm{m}$$ cosmic infrared background (CIB) from Y.-K. Chiang (2023), using the $$k$$-nearest neighbor cumulative distribution function ($$k$$NN-CDF). As the CIB map is reconstructed from $${\sim}600$$ million Wide-field Infrared Survey Explorer galaxies extending to $$z\approx2.5$$, the measurement is equivalent to a galaxy-CMB cross correlation. We find evidence for a positive cross correlation, rejecting the null hypothesis of no correlation at $$p=0.02~(2.3\sigma)$$ using the $$\chi^2$$ test. We further quantify its amplitude with $$A_{k\mathrm{NN}}$$, defined relative to an assumed cosmological model, and obtain $$A_{k\mathrm{NN}}=0.95\pm0.20~(4.8\sigma)$$ with respect to $$\Lambda\mathrm{CDM}$$ mock data including the ISW and RS effects. The $$k$$NN-CDF analysis improves the detection significance by $${\sim}20\%$$ over the two-point correlation function. We also explore evolving dark energy by constructing two tomographic maps from the full CIB map; the results are consistent with $$\Lambda$$CDM. Finer tomographic reconstruction of the CIB, for example from multiband data of SPHEREx, would further tighten constraints on evolving dark energy.
The 100-micron infrared background map, built by Yi-Kuan Chiang, was essentially 'subtracted' from the Schlegel-Finkbeiner-Davis Milky Way dust map — the famous 'SFD'. Normally, that map is used to find regions of low extinction for extragalactic observations, but here it was used in reverse: the extragalactic signal was extracted as the residue after removing our Galaxy.
The idea of an 'echo of creation' carrying information about the fate of the universe recalls Isaac Asimov's novel 'The End of Eternity', where time-manipulating technicians monitored distant consequences. Here, conversely, we read the history of expansion from ancient light — and perhaps foretell the far future.
Key numbers
- detection significance: 4.8σ
- number of WISE galaxies used for CIB map: 600 million
- redshift of peak ISW sensitivity: z ≈ 1
- sky area used: 49%
- relative signal amplitude: 0.95 ± 0.20
