A Detector That Hears X-ray Light express

Original: "Beyond One-Thousandth Energy Resolution with an AlMn TES Detector"
arXiv:2602.11728 · 2026-02-12 · CC BY 4.0 · 1 min
Scientists have created an ultra-sensitive X-ray detector that distinguishes photons by energy with precision down to fractions of a percent.

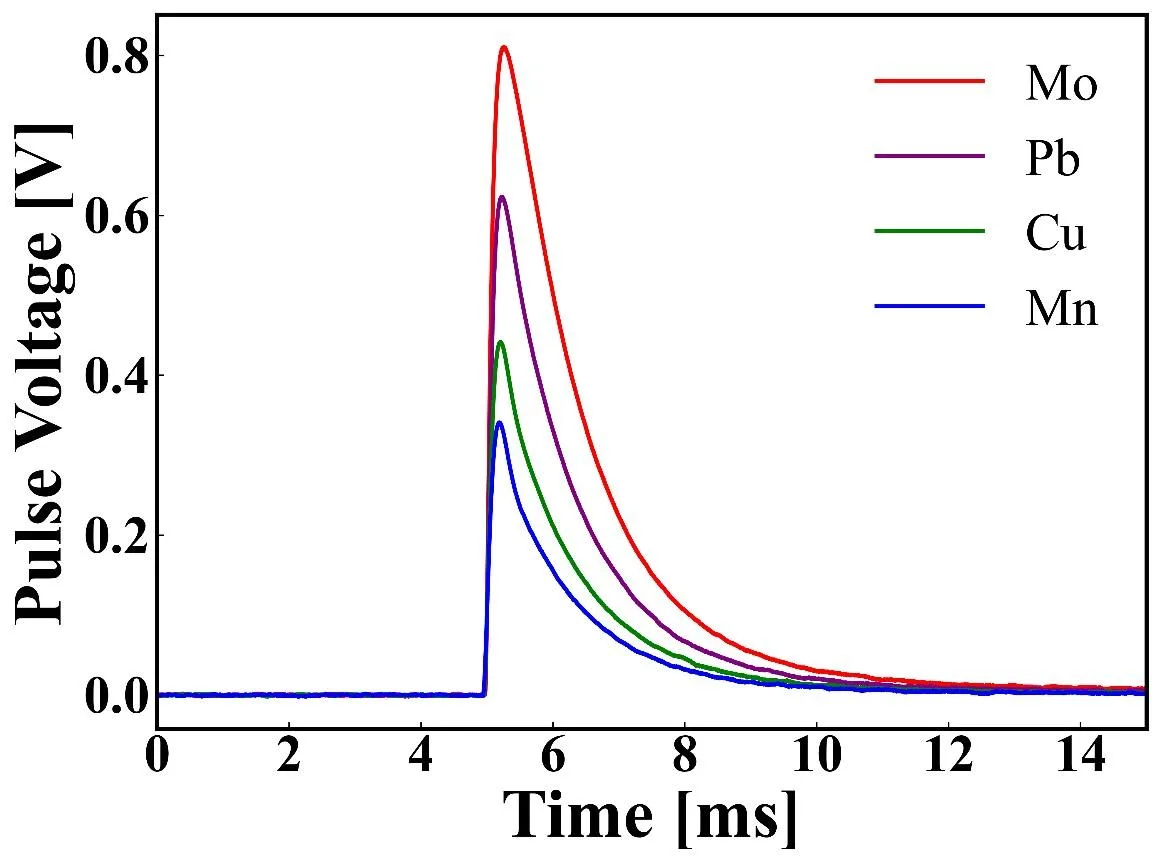

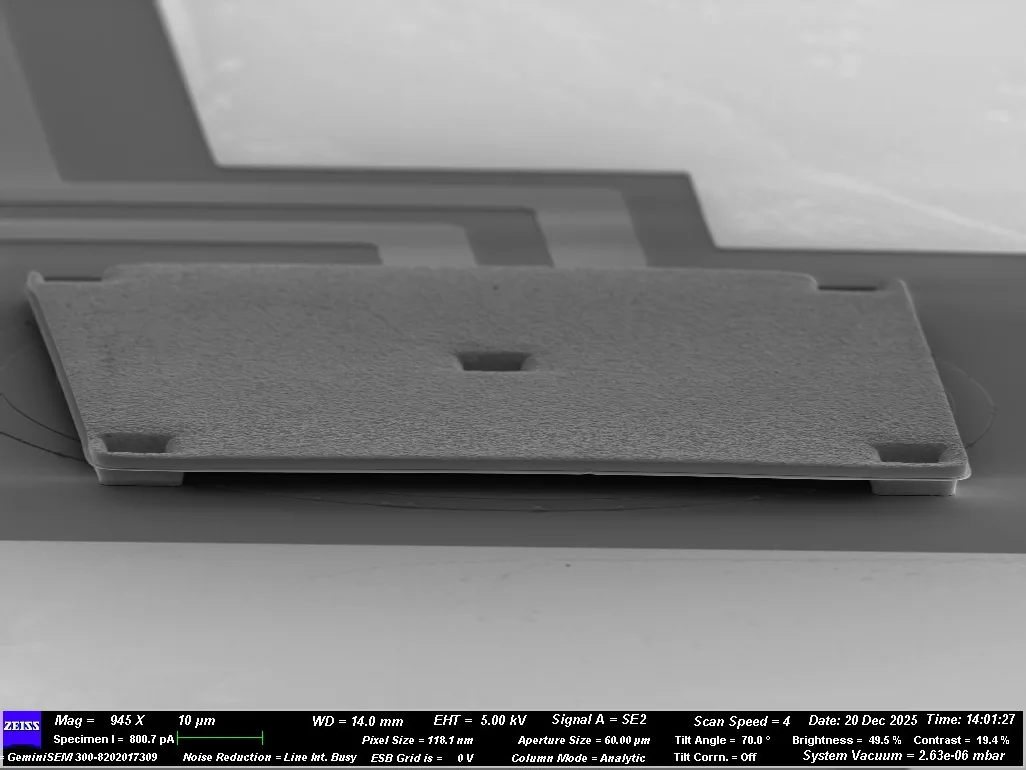

An X-ray photon hits the detector like a pebble dropping into still water. The water is a thin film of aluminum and manganese, cooled to near absolute zero. The impact sends a heat wave rippling across the film, and by measuring its height, you can tell how much energy the photon carried.

This is how transition-edge spectroscopy works — a technique already used to peer at distant galaxies and hunt for dark matter. But until now, such detectors for X-rays were made from two layers of different metals, which is complicated and expensive. The authors of the paper used an alloy of aluminum and manganese instead: it's easier to deposit onto a substrate, and the superconducting transition temperature is easy to tune.

The film is cooled to 0.1 kelvin — colder than interstellar space.

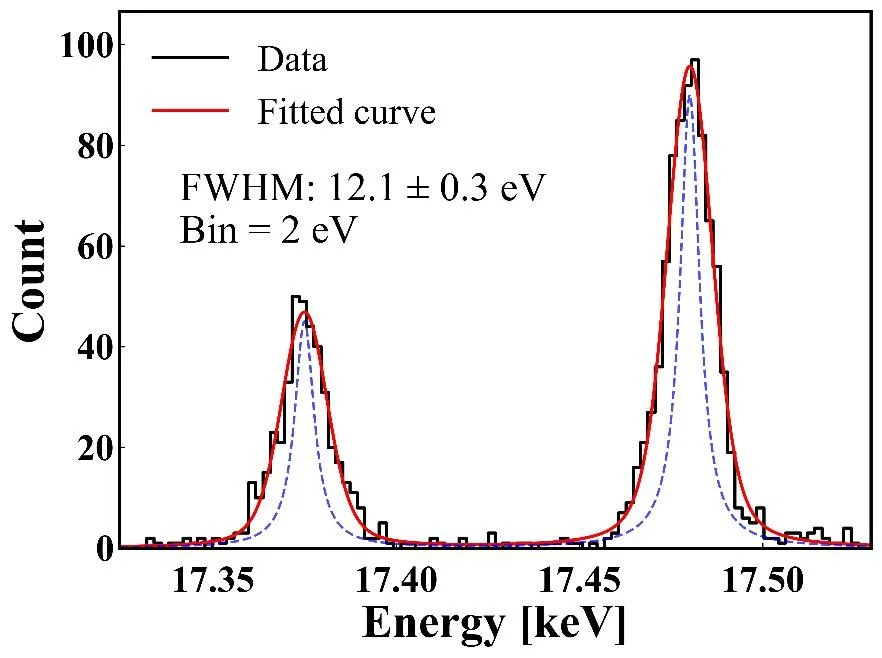

Tests in a cryostat with a superconducting quantum interference device amplifier showed that the detector can distinguish two X-ray quanta if their energies differ by at least 12.1 electronvolts. At an energy of 17.48 kiloelectronvolts, that's a relative precision of 0.07 percent. No detector made from this alloy has ever achieved such performance before.

A precise X-ray spectrometer is like a very keen ear that hears not the volume but the pitch of each individual note. With it, you can determine what elements make up a substance without destroying the sample. Such instruments will be useful in materials science and astronomy alike, when you need to figure out what a distant star is shining with.

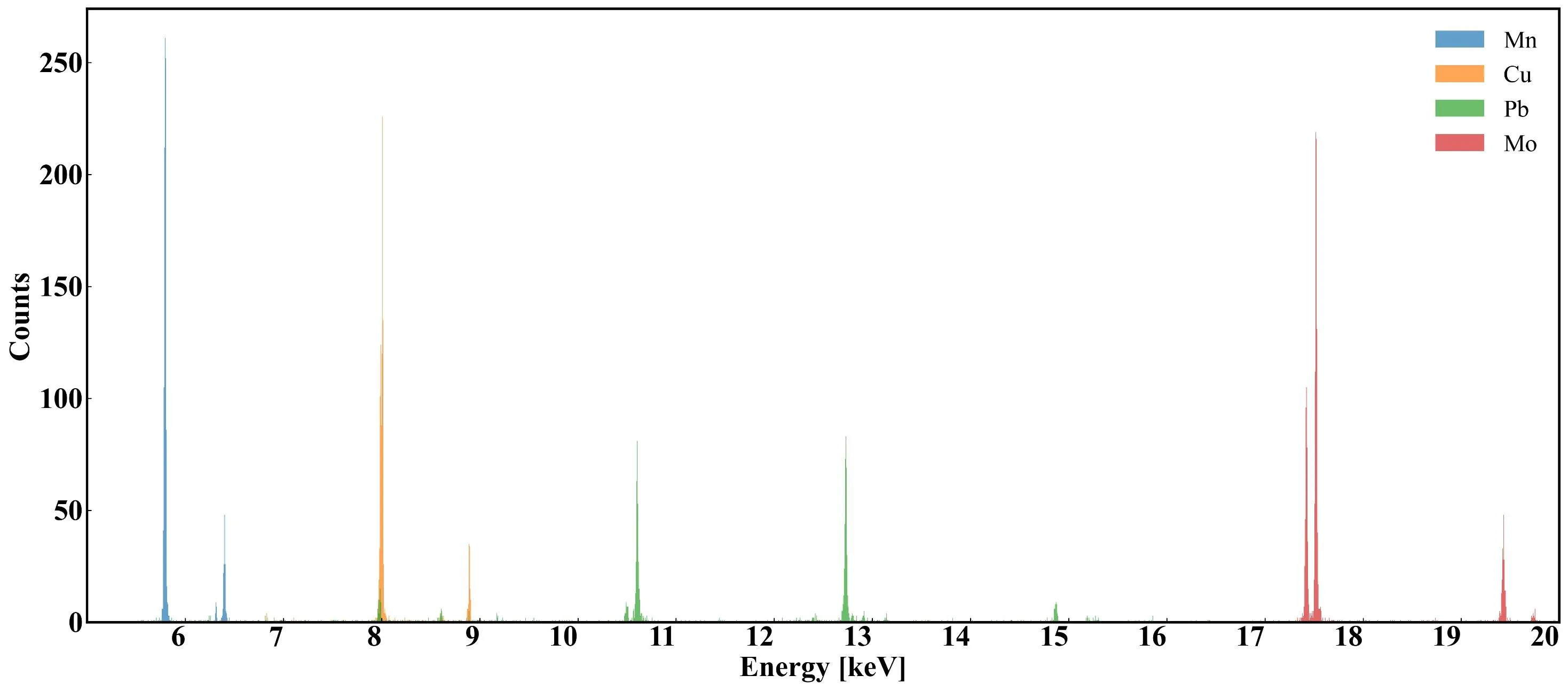

The energy of 17.48 kiloelectronvolts corresponds to the X-ray emission of molybdenum — often used to calibrate detectors because this metal produces a very clean spectral line.
