Hidden Rings in the Protoplanetary Disk of CI Tau: The Azimuthal Brightness Modulation Method ✛
Context
Understanding how planets form is one of the key challenges in modern astrophysics. Protoplanetary disks around young stars like our Sun are of particular interest. Observations with telescopes such as Hubble and James Webb, as well as the ALMA radio interferometer, allow us to study these disks in our Galaxy. However, even at high resolution, many details remain hidden. The recently developed method of azimuthal brightness modulation offers a way to look beyond the diffraction limit, revealing unresolved dust rings — potential cradles of exoplanets. The dust is composed of silicates and carbon, while the gas is mainly hydrogen and helium. This approach, combining radio and infrared spectroscopy (broadly speaking, multi-wavelength photometry), allows the estimation of optical depth.
Methods

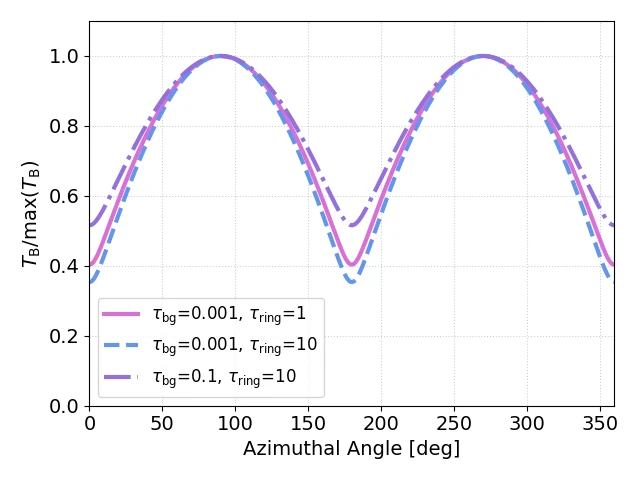

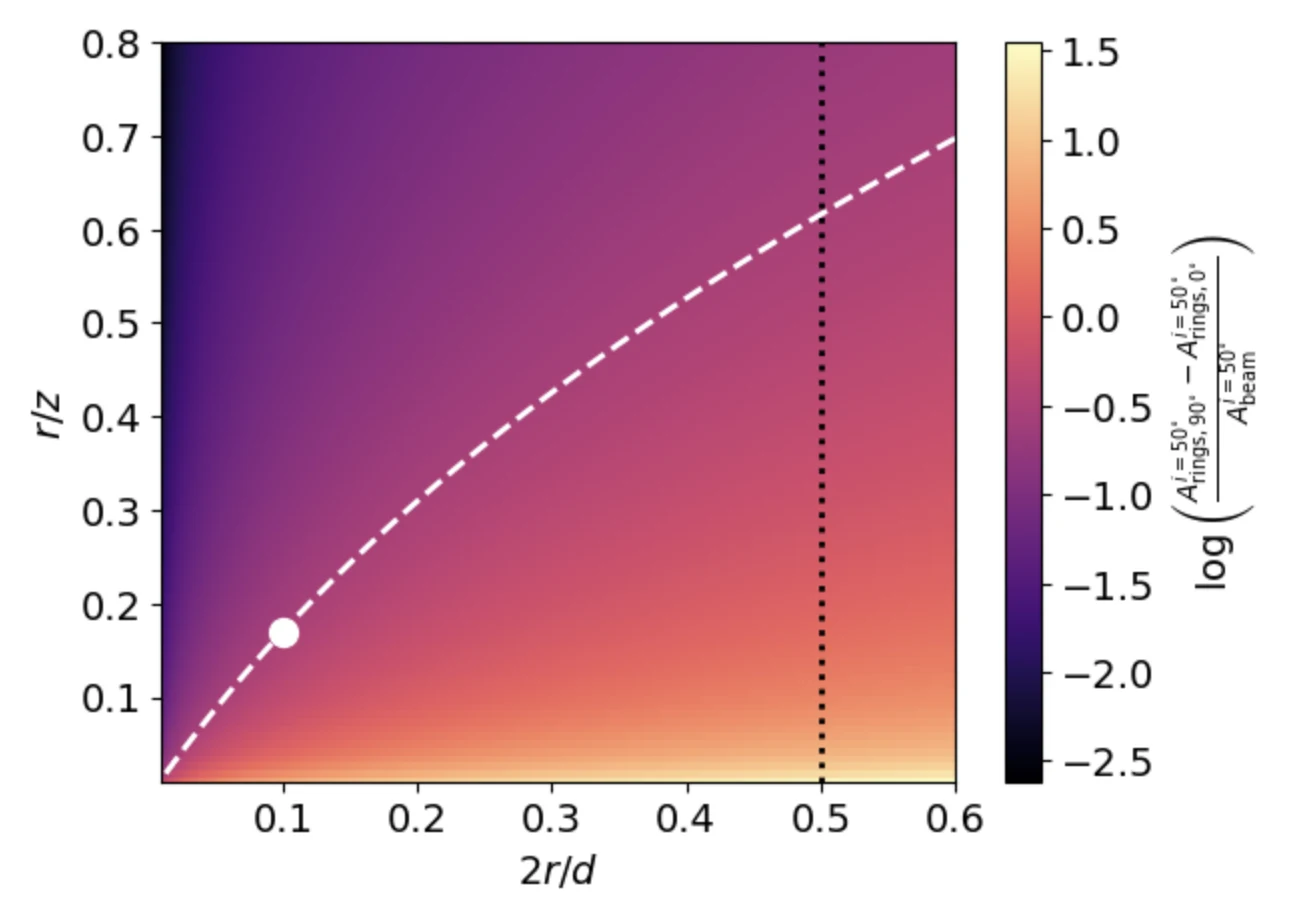

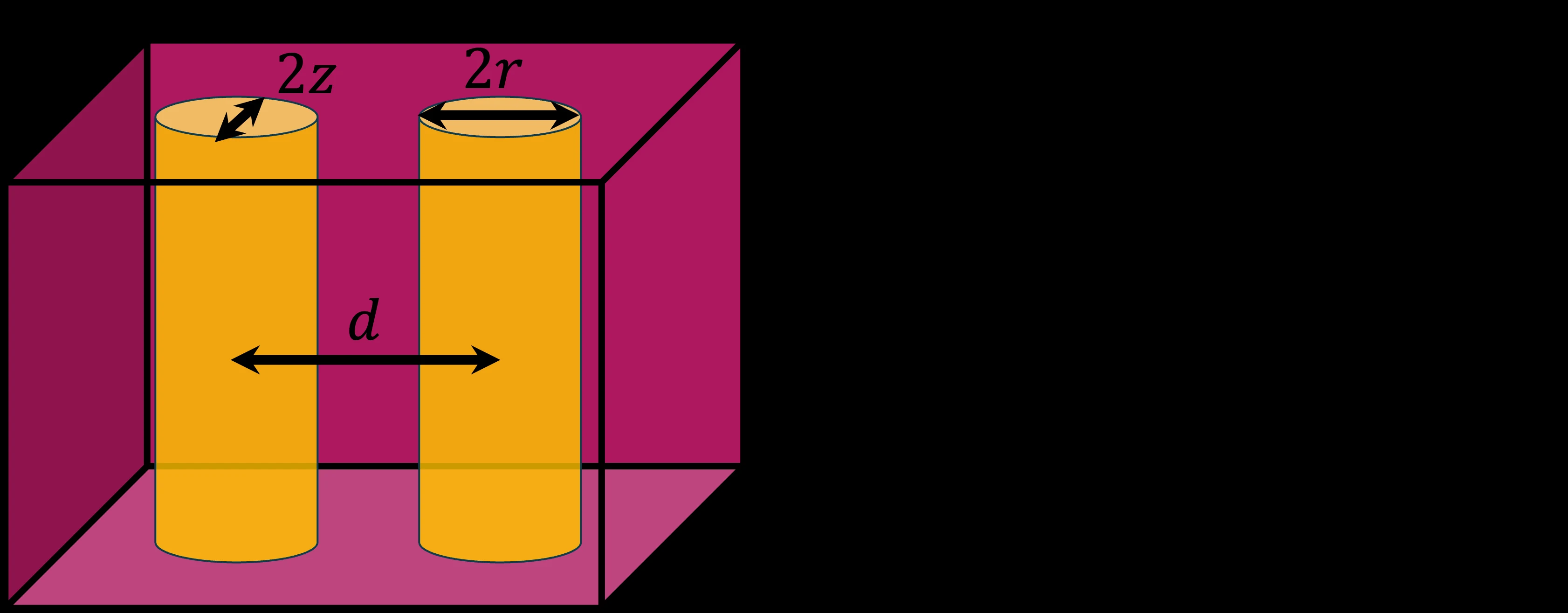

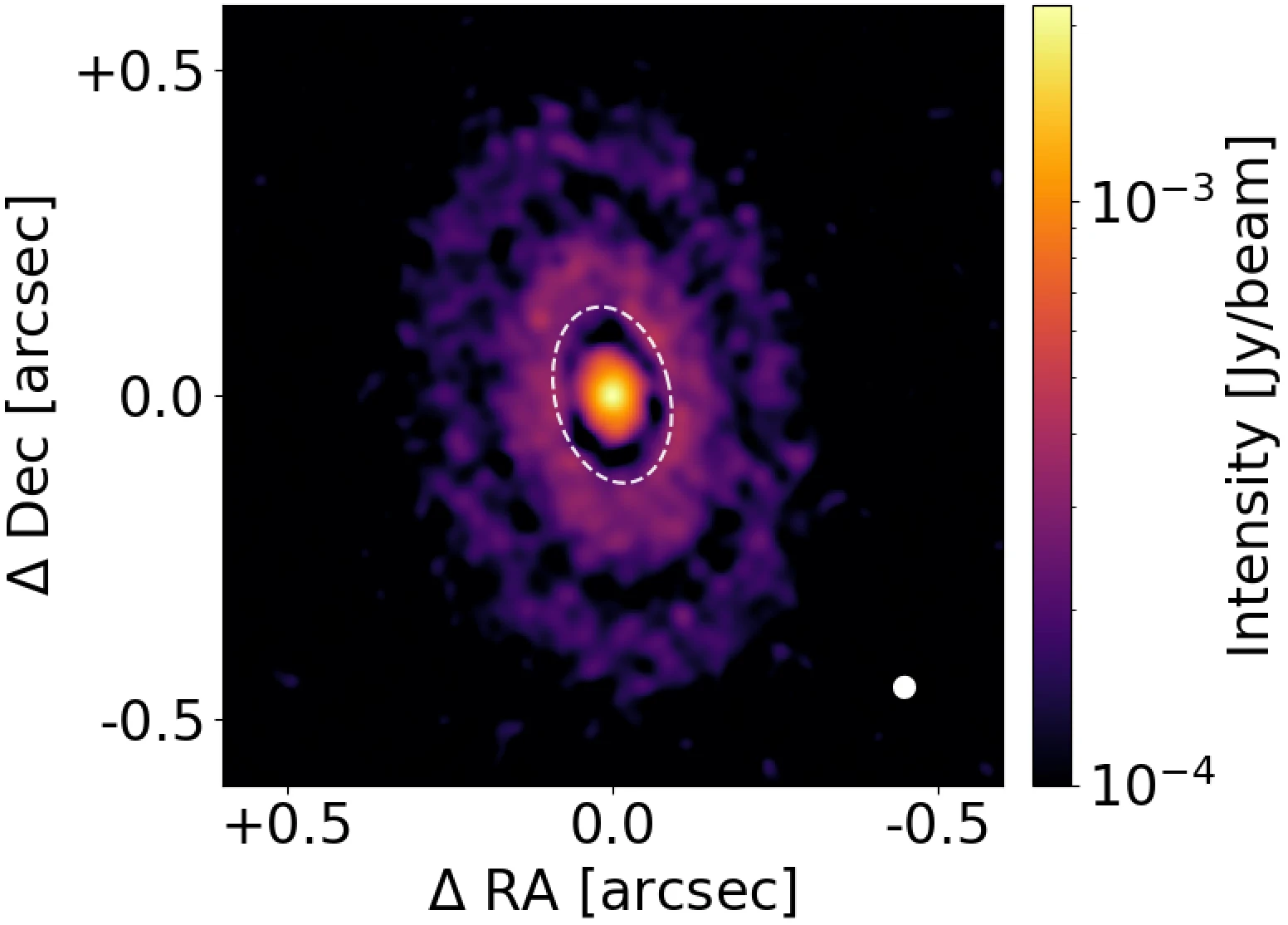

Scientists analyzed archival observations of the CI Tau disk from the ALMA telescope in three wavelength bands. The key idea of the previously proposed method is that optically thick rings in an inclined protoplanetary disk produce azimuthal brightness modulation: due to projection, the visible surface area is larger along the minor axis, resulting in two intensity peaks. To test this, the researchers deprojected the disk and extracted radial brightness profiles in narrow annular regions. They then constructed synthetic observations based on a model with varying parameters: background optical depth, ring size, and their thickness-to-radius ratio. Comparing data in different bands, analogous to a spectroscopic approach, confirmed the presence of unresolved rings and allowed their properties to be estimated.
Results

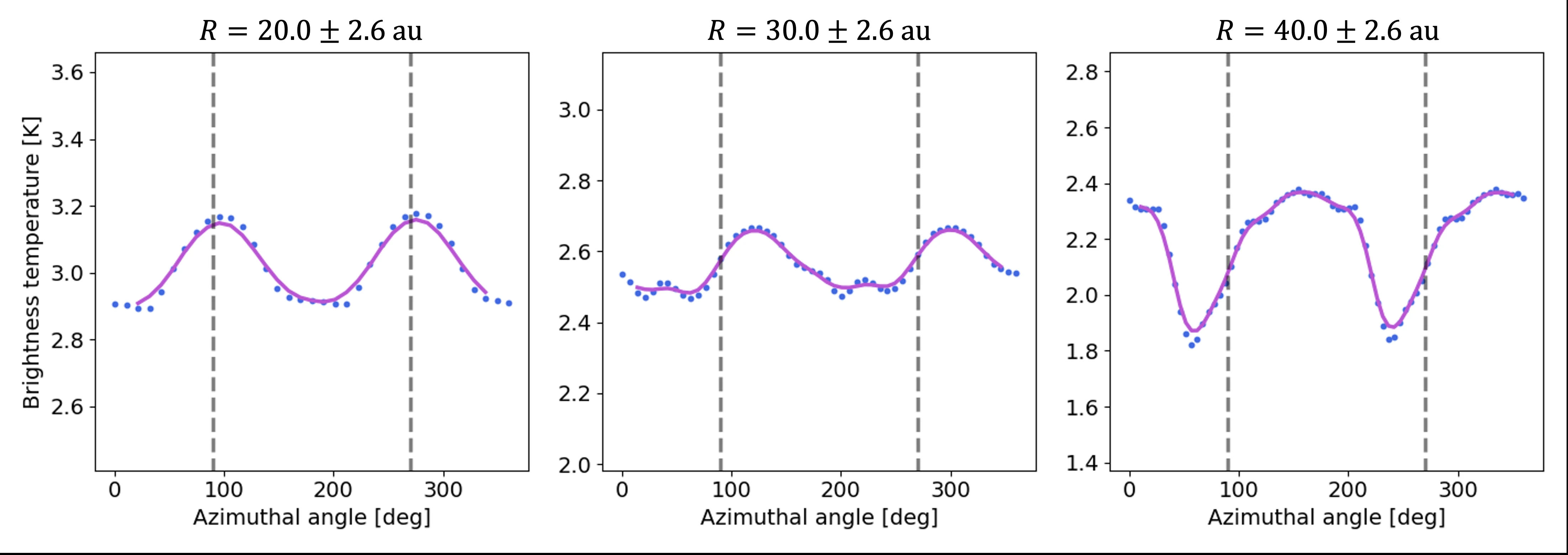

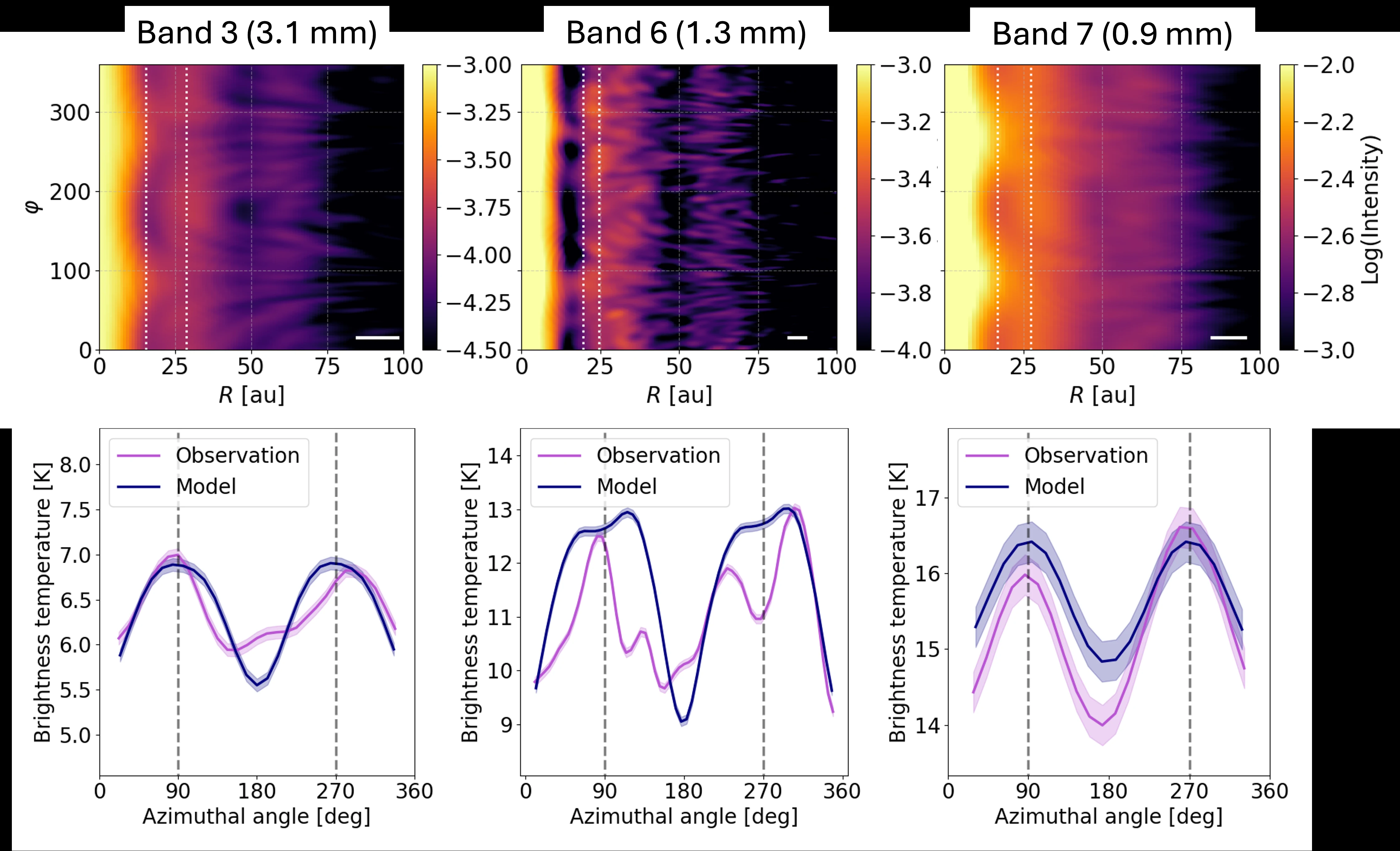

As a result, a characteristic double brightness peak on the disk's minor axis was detected at approximately 22 astronomical units from the star in all three ALMA bands. In Band 6 (wavelength 1.3 mm), the modulation amplitude was about 4 K with a maximum brightness temperature of ~13 K. In Band 3 (3.1 mm), the signal was weaker (~1 K), and in Band 7 (0.9 mm) it was intermediate (~2.5 K). This is consistent with a model in which compact optically thick rings are embedded in an optically thin background (with a dust opacity spectral index β~2, typical of small dust grains). Modeling showed that such rings may have diameters on the order of tenths of an astronomical unit and are likely associated with dust concentration, for example, through streaming instability.
Implications
This discovery shows that even beyond the formal resolution of telescopes, fine dust structures in protoplanetary disks can be detected. Such rings are likely sites of planetesimal formation, and their detection provides a new tool for testing theories of planet growth in our Galaxy. Moreover, the method can be applied to other disks, enabling statistics on unresolved substructures and a better understanding of the prevalence of conditions for streaming instability.
Future development
In the future, a similar analysis can be performed for a large number of disks observed with ALMA at high resolution. With the advent of new instruments such as James Webb and future giant radio telescopes, it will be possible to study these rings in detail in the infrared and submillimeter ranges. Joint use of archival Hubble data and new observations will refine the dust composition, including carbon content, and directly link dust properties to planet formation processes around stars like our Sun.
Impact
The results will impact the understanding of early stages of exoplanet formation, the theory of dust growth, the interpretation of multi-wavelength observations, and modeling of protoplanetary disk evolution.
Next steps
The method is planned to be applied to other known disks, and dedicated high-resolution observations will be conducted to confirm the nature of the rings. It is also important to theoretically investigate the connection of the signature with streaming instability and turbulence.
Key open problems
This study addresses the problem of rapid radial dust drift in protoplanetary disks and the mechanisms of dust trapping, as well as the fundamental question of the initial stages of planetesimal formation — a key stage in planet birth.
The knowledge machine's view
This section is addressed to the author of the paper and their colleagues. Neighbouring works were found by meaning-based search across our archive, not by word overlap. We do not review: we show the field around the work.
What the work does
The paper proposes a method of azimuthal brightness modulation to reveal unresolved dust rings in the protoplanetary disk of CI Tau. The authors analyzed archival ALMA observations in three bands, deprojected the disk, extracted radial profiles, and built synthetic observations based on a model with variable parameters. As a result, a double brightness peak was detected at a distance of ~22 AU, consistent with the presence of compact optically thick rings.
Where its strength is
The strength of the work lies in the method's ability to look beyond the diffraction limit, using the geometry of the inclined disk to reveal structures that are inaccessible to direct resolution. This opens up the possibility of systematically searching for rings in other disks using archival data.
Where it could go next
- It might be interesting to compare the found rings with the results of the study of the dust ring around the planet PDS 70 c, where the dust structure in the protoplanetary disk was also analyzed.based on: Dust Ring Instead of a Continuous Disk Around Planet PDS 70 c arXiv:2607.03866
- A related work on dust rings at the edge of a distant system is nearby: perhaps apply the azimuthal modulation method to more distant or less inclined disks to test its universality.based on: Dust Rings at the Edge of a Distant System arXiv:2605.11486
- It would be interesting to compare with the work on the molecular wind opening the disk: if similar dynamic processes exist in CI Tau, they could affect the dust distribution and brightness modulation.based on: Molecular Wind Unveils the Disk arXiv:2607.25770
Worth trying
- Apply the method to disks with different inclination angles and check whether the characteristic azimuthal modulation persists.
- Combine the analysis with simulations of streaming instability to estimate the sizes and densities of the rings.
- Use multi-wavelength data to construct an optical depth map and test the hypothesis of dust concentration.
Why this may matter
The detection of unresolved rings in protoplanetary disks could become a new tool for testing theories of planetesimal formation and, ultimately, planets. The method is applicable to archival data, which will allow quickly gathering statistics on many disks and identifying common patterns in dust evolution.
Nearby works in our archive
- Dust Ring Instead of a Continuous Disk Around Planet PDS 70 csimilarity 0.63
- Dark Matter Speaks in Gamma-Ray Lightsimilarity 0.61
- Molecular Wind Unveils the Disksimilarity 0.60
- Hearing the Silence: The Hunt for Scalar Dark Mattersimilarity 0.60
- Dust Rings at the Edge of a Distant Systemsimilarity 0.59
- Cosmic Fireflies: How Dark Matter Turns into Visible Lightsimilarity 0.59
The closest work in the archive sits at 0.63 by meaning — the usual level for our corpus.
Original abstract
as written by the authors arXiv:2607.02660v1
Protoplanetary disks often host substructures such as rings and gaps, which trace key processes in planet formation and dust evolution. However, narrow rings may remain unresolved due to limited observational resolution, hiding critical information about early planetesimal formation and the amount of dust present. We apply the azimuthal brightness modulation method, based on the modulation produced by multiple unresolved optically thick rings embedded in an optically thin background Scardoni+2024, to multi-wavelength ALMA observations of CI Tau to identify unresolved rings and constrain their geometry and optical depth. We analysed CI Tau archival ALMA continuum observations in bands 3, 6, and 7, extracting azimuthal brightness profiles along narrow annuli and comparing them with forward modeled synthetic observations of inclined disks containing unresolved rings. We detect the azimuthal signature at $$\sim22$$ au in all three bands, consistent with unresolved, optically thick rings embedded in a lower optical depth background. Multi wavelength modelling constrains the rings' geometry and optical depth, consistent with conditions expected for streaming instability and early planetesimal formation. Our results demonstrate the applicability of this azimuthal signature technique to real disks, reveal fine scale dust substructures in CI Tau, and illustrate a new method to study the early stages of planet formation below the nominal resolution limit.
CI Tau is only about two million years old; this means planets could be forming in this disk right now, and the distance of 22 AU is comparable to the orbit of Uranus in the Solar System. Interestingly, the detected rings are so narrow that their width is smaller than the ALMA beam size, and without this clever method, they would have gone unnoticed.
Key numbers
- Distance to CI Tau: 160 parsecs (~520 light years)
- Radius of detected rings: ~22 AU
- Modulation amplitude in Band 6: ~4 K
- Maximum brightness temperature in Band 6: ~13 K
- Age of the star: ~2 million years
