Clumps in a Cocoon: Geometry and Mixing Give Rise to a Universal Glow ✦
Observations of galactic winds, ram-pressure-stripped tails, and cluster filaments show a universal X-ray-to-Hα surface brightness ratio near 3. Hα is emitted by cool gas (10⁴ K), while X-rays come from hot gas (10⁶–10⁷ K). Plane-parallel mixing layer models fail to reproduce this ratio. Using 3D simulations at high density contrast (χ~10³), we show that the cool phase shatters into Hα-emitting clumps, and the hot gas forms a volume-filling cocoon. After smoothing on the tail scale, the simulated ratio converges to the observed one. Analytically, we derive that the Hα fraction is set by atomic physics, while the X-ray luminosity is determined by the hot-gas dwell time, which is much shorter than the cooling time at these temperatures and inversely proportional to pressure. This points to a connection with cooling at the low-temperature end of the cascade. The model explains the ratio’s order of unity and its insensitivity to pressure.
Context
In the interstellar and intergalactic medium, gas at tens of thousands of degrees and plasma heated to millions constantly coexist. Their interaction shapes the evolution of galaxies: how they lose gas, how the intergalactic medium is enriched. This is especially vivid in galactic winds and the tails of jellyfish galaxies. Observations in H-alpha (the Balmer series, hydrogen) and X-rays show that the surface brightness in these two channels relates roughly three to one—and this number barely changes from system to system. Understanding its nature gives us a tool to diagnose unobservable processes of phase mixing.
Methods
To explain the ratio, the authors ran 3D hydrodynamic simulations of a “wind tunnel” with the Athena++ code. A cold cloud of hydrogen with a radius of 1 kpc was placed in a hot wind of temperature 10⁷ K and Mach number 1.5. The density contrast reached 1000. A 4096×256×256 grid allowed tracking of the cloud’s breakup into clumps. Radiative cooling with realistic curves was included, and X-ray emission synthesis used the APEC code, incorporating lines of oxygen and carbon. Surface brightness maps were smoothed with a Gaussian filter to the scale of the tail’s width, then the flux ratio was measured in apertures.
Results

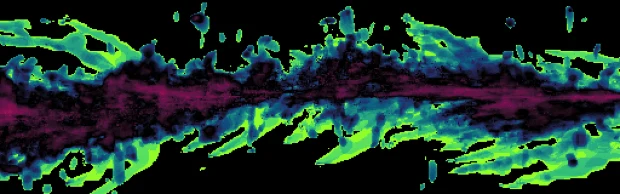

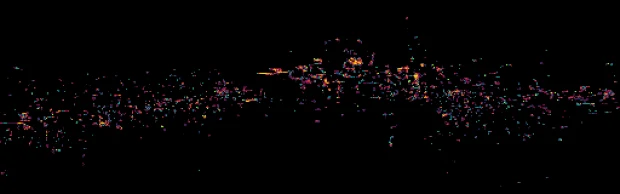

The key result is the formation of a “clump-and-cocoon” morphology. Cold hydrogen gas, emitting in H-alpha, broke into many droplets, while hot gas (a few million K), responsible for X-rays, filled the entire tail volume, enveloping the clumps in a cocoon. After averaging over apertures comparable to the tail thickness, the measured SB_X/SB_Hα ratio stabilized at ≈3.2, matching the observed 2.5–4.4 for jellyfish galaxies. The ratio remains of order unity even when pressure varies by a factor of 1000.
Implications
In turbulent multiphase flows, the X-ray luminosity is not set by the radiative cooling time at X-ray temperatures. If the hot gas simply radiated away its thermal energy, the X-ray flux would be enormous. Instead, the gas spends much less time in the X-ray regime—turbulent mixing quickly drags it down the temperature cascade to the cold sink, where hydrogen emission dominates. The X-ray phase is a transit station, not a final reservoir. This explains the robustness of the ratio and its proximity to unity.
Future development
Future work should include more accurate microphysics. Anisotropic thermal conduction and magnetic fields may alter the mixing details, though the global luminosity ratio will likely persist. Comparisons with observations from next-generation spectrographs and high-quality photometry from telescopes like James Webb are needed. The role of entropy production in turbulent cascades also requires study.
Impact
This work will influence the theory of galaxy evolution, the interpretation of multiphase medium observations, and the diagnostics of processes in galaxy clusters. The universal X-ray–optical ratio could be used as a standard candle to measure gas properties, including mixing and cooling rates.
Next steps
A direct extension will be simulations with realistic anisotropic conduction and magnetic fields in the shredded-tail regime. Systematic comparison with data from X-ray observatories and integral-field spectrographs for samples of jellyfish galaxies is also necessary.
Key open problems
This study touches on a fundamental problem in interstellar medium physics: how phases at different temperatures coexist and exchange mass and energy. The universal brightness ratio allows us to probe the turbulent mixing cascade, linking small-scale dynamics to the global energy balance. It also sheds light on why X-ray emission from many astrophysical sources is suppressed—the answer lies in rapid mixing with cold gas and entropy production.
🎯 The H-alpha line is just one of many in the Balmer series, discovered by Swiss teacher Johann Balmer in 1885. His empirical formula, which foreshadowed quantum mechanics, still helps astrophysicists study the universe today.
Key numbers
- SB_X/SB_Hα ratio in simulation: ≈3.2
- Observed ratio in jellyfish tails: 3.48±0.25
- Characteristic temperature of X-ray gas T_X: ≈3×10^6 K
- Dwell time in X-ray regime ⟨t_X⟩: ≈3.5 million years
- Cooling time t_cool(T_X): ≈98 million years
