The Fourth Planet in the System of Super-Puff Worlds Kepler-51 ✛
Context
The Kepler-51 system has caught astronomers' eyes with three planets roughly Saturn-sized but fluffier than cotton candy—with densities lower than water (less than 0.1 g/cm³). Their origin is a head-scratcher: how do such lightweight gas envelopes survive so close to a star? Previous mass estimates, pulled from transit timing variations (TTV) in data from Kepler (a mission spearheaded by William Borucki) and Hubble, pointed to masses under 10 Earths. New JWST observations were meant to nail down their atmospheric makeup, but instead they dropped a bombshell.
Methods

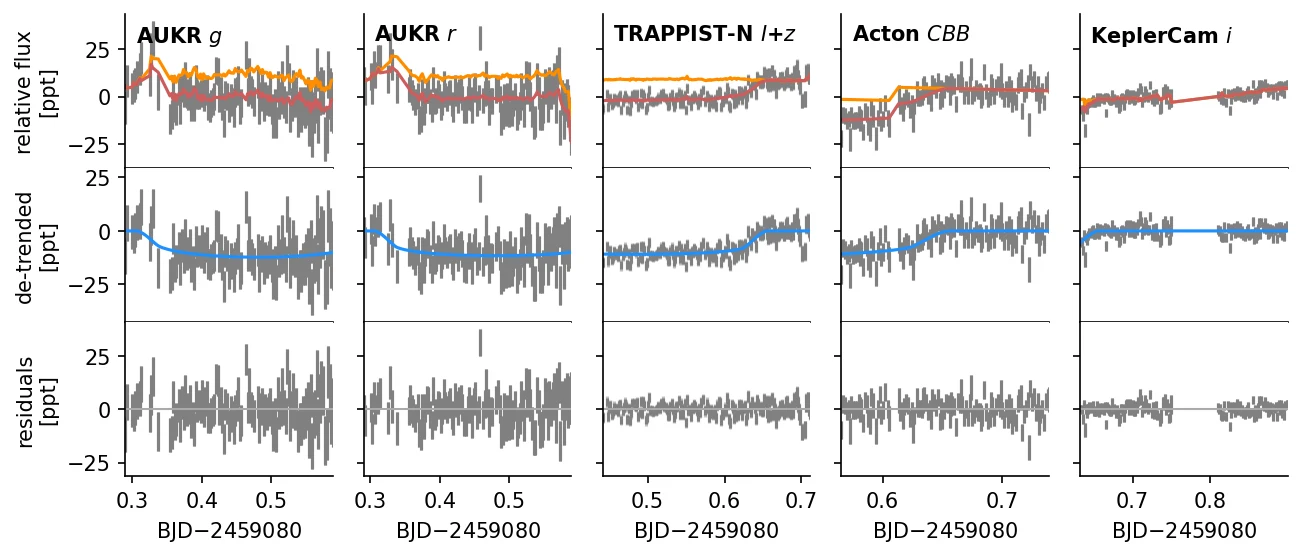

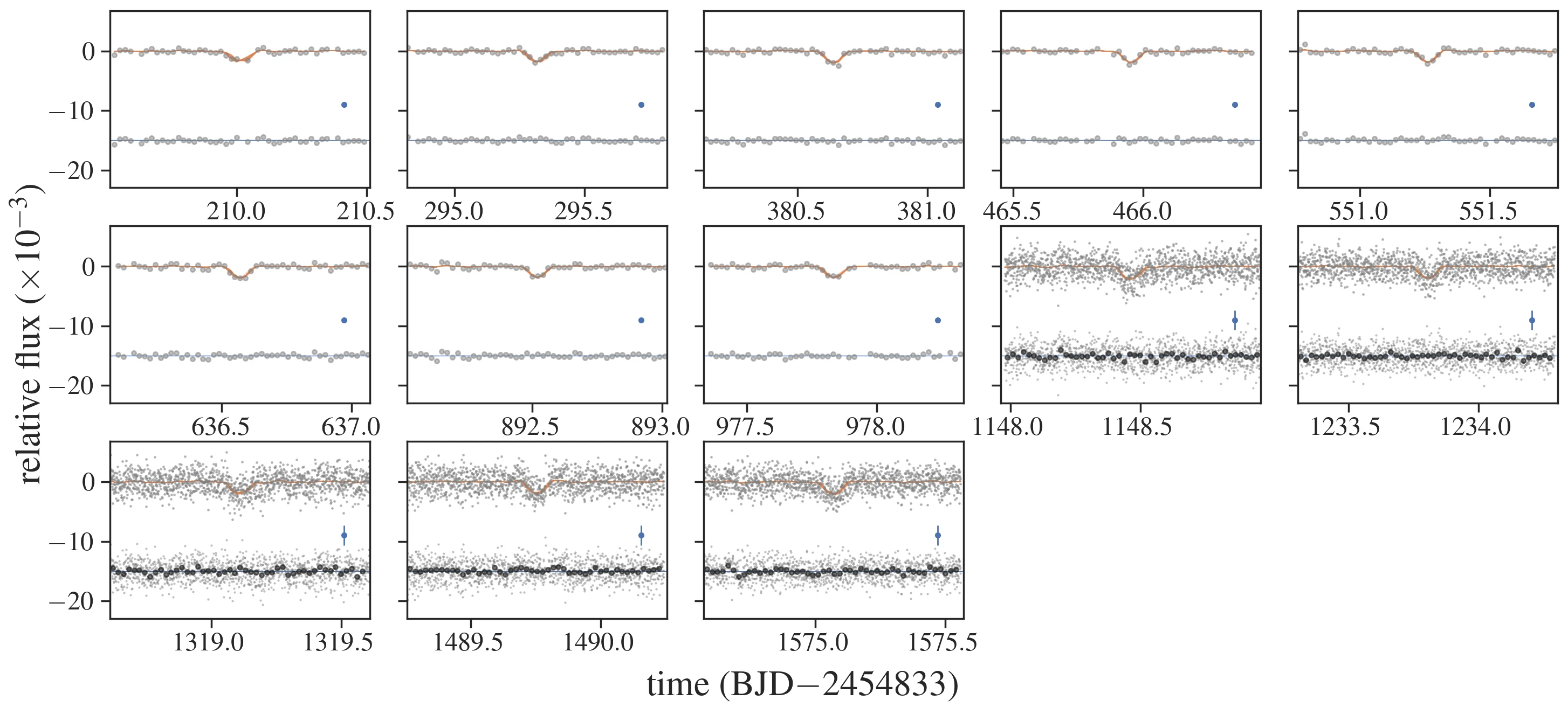

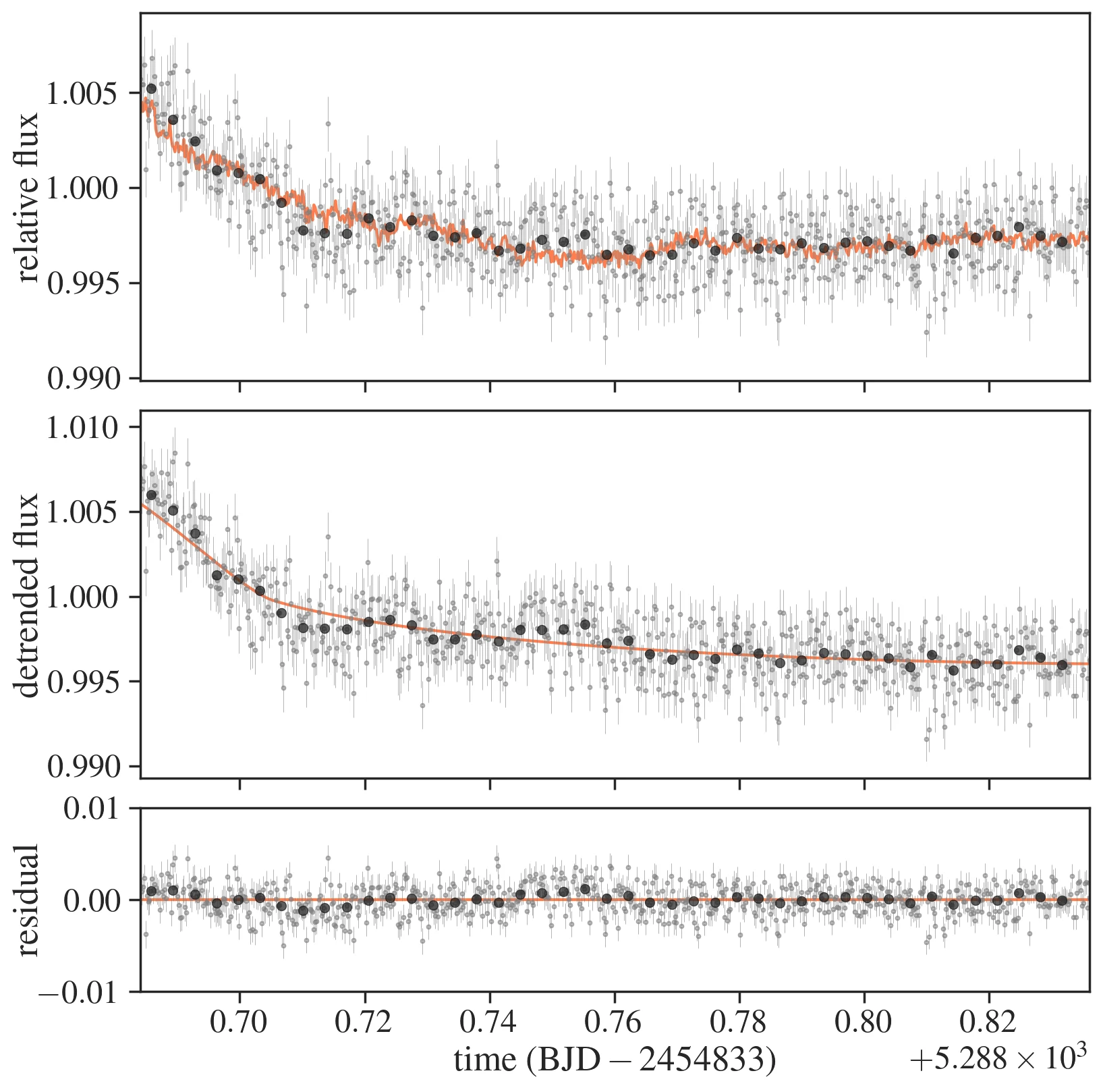

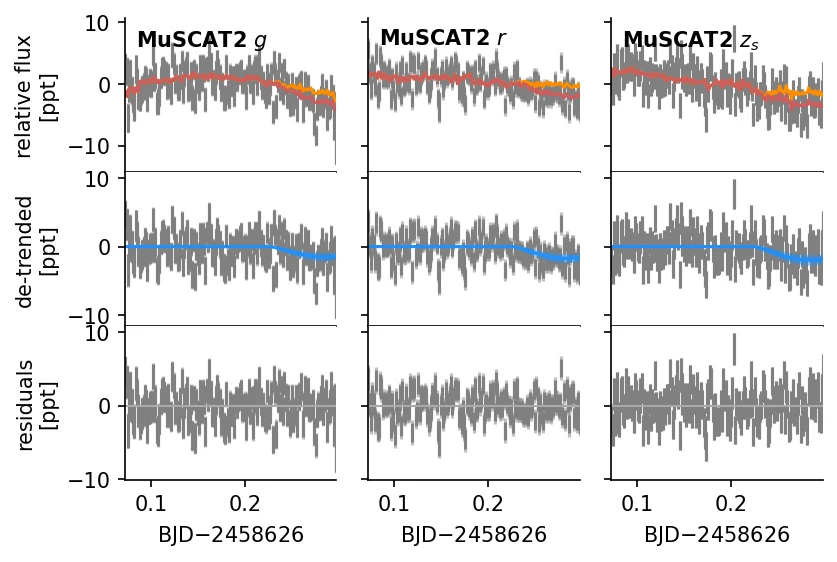

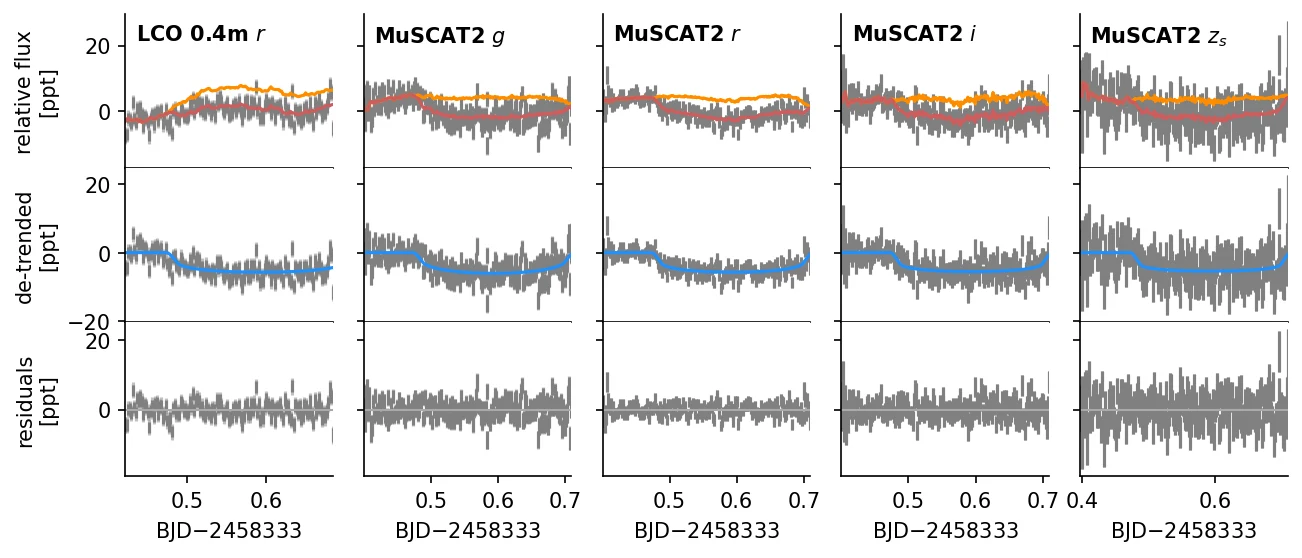

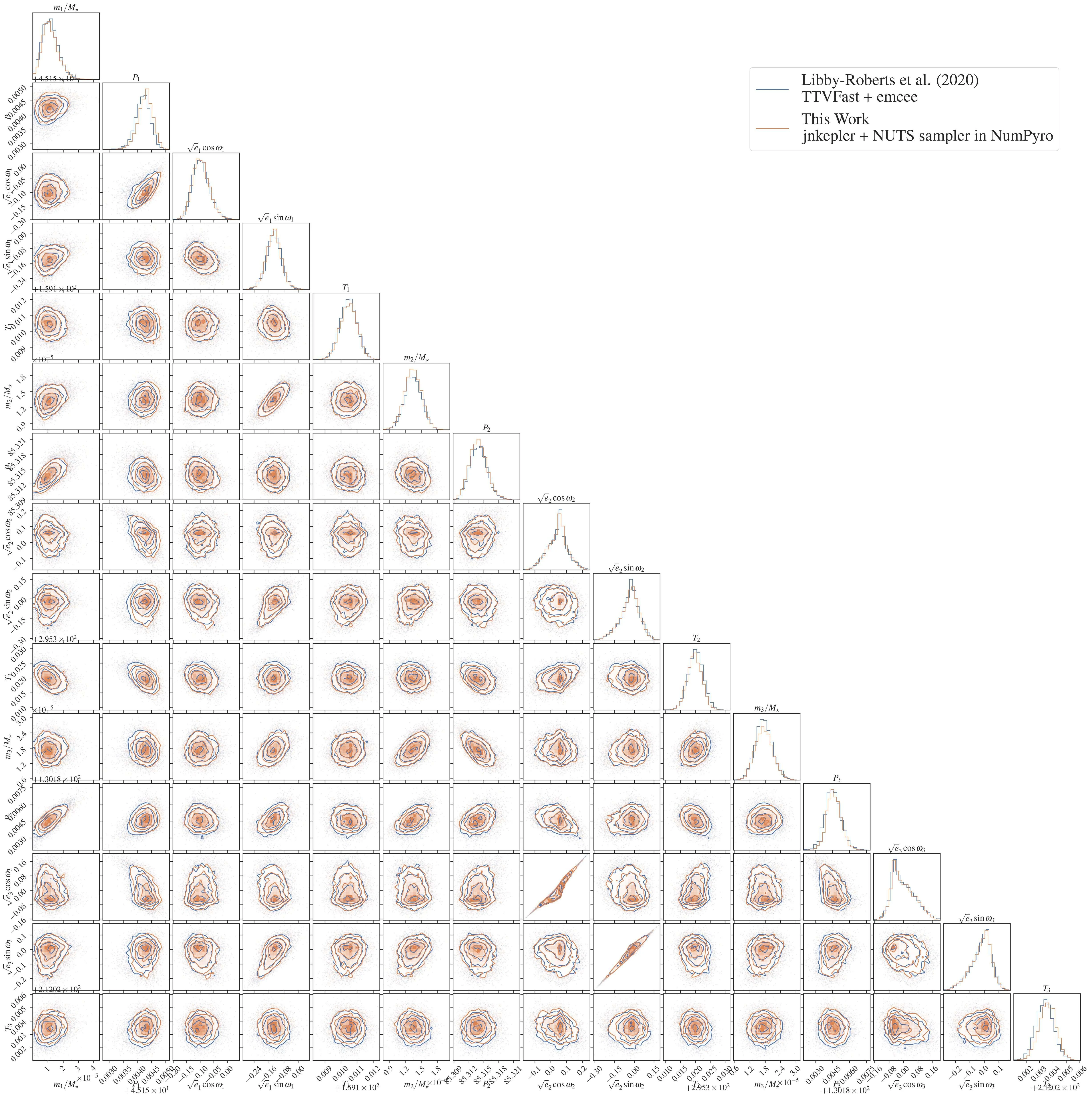

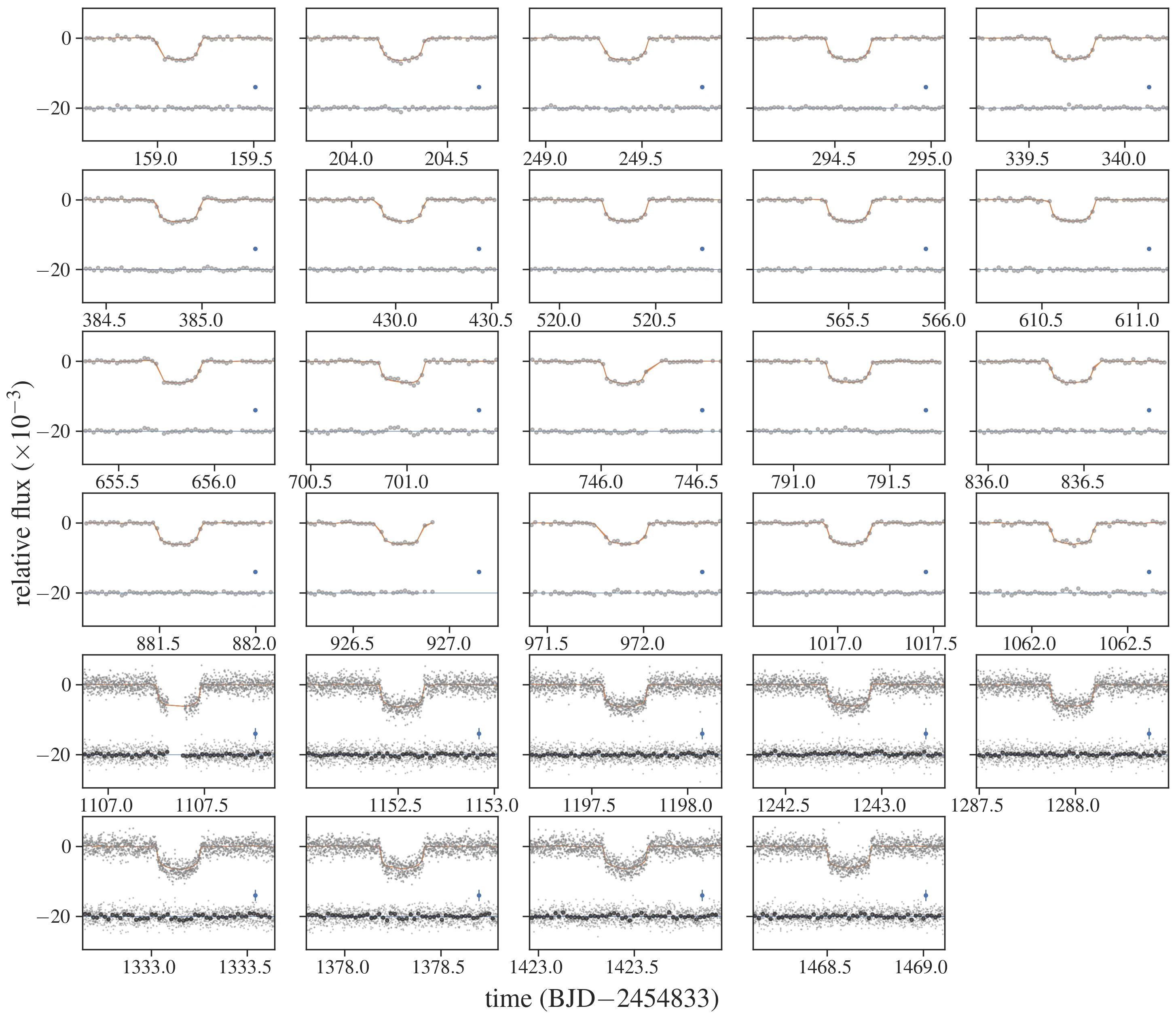

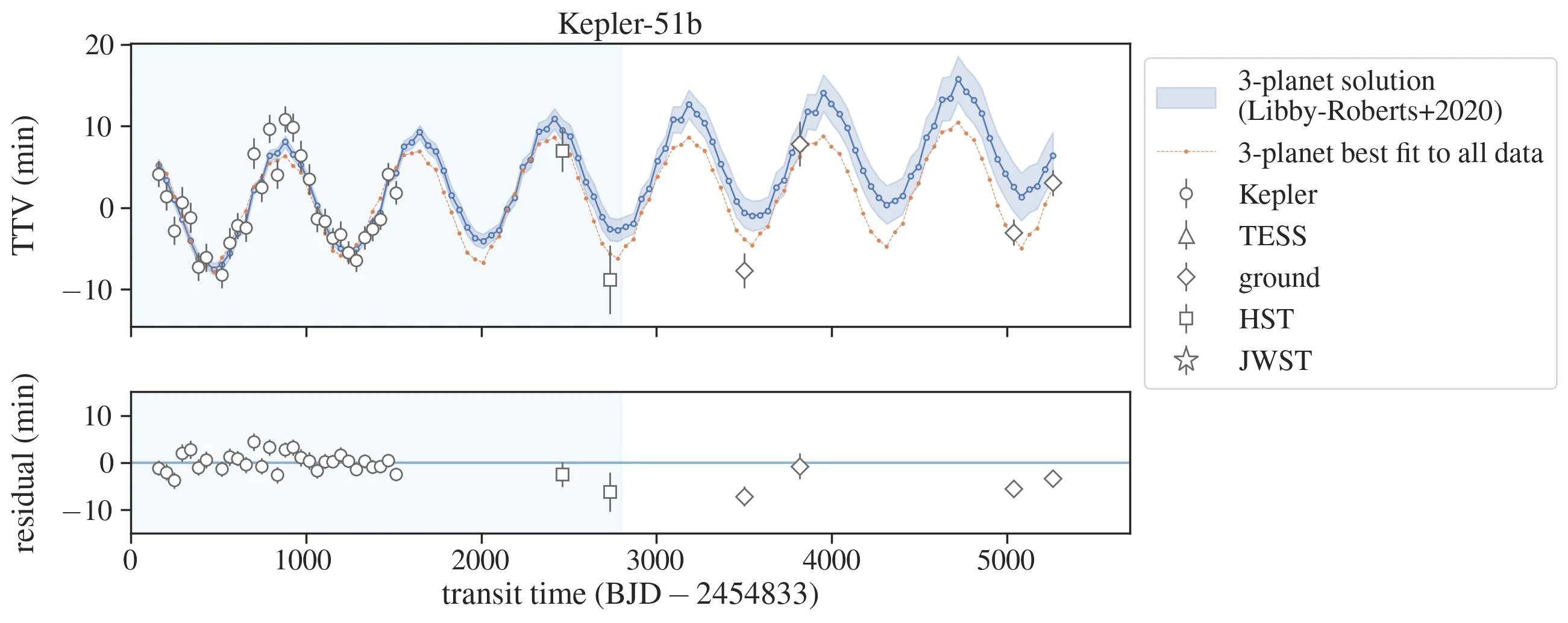

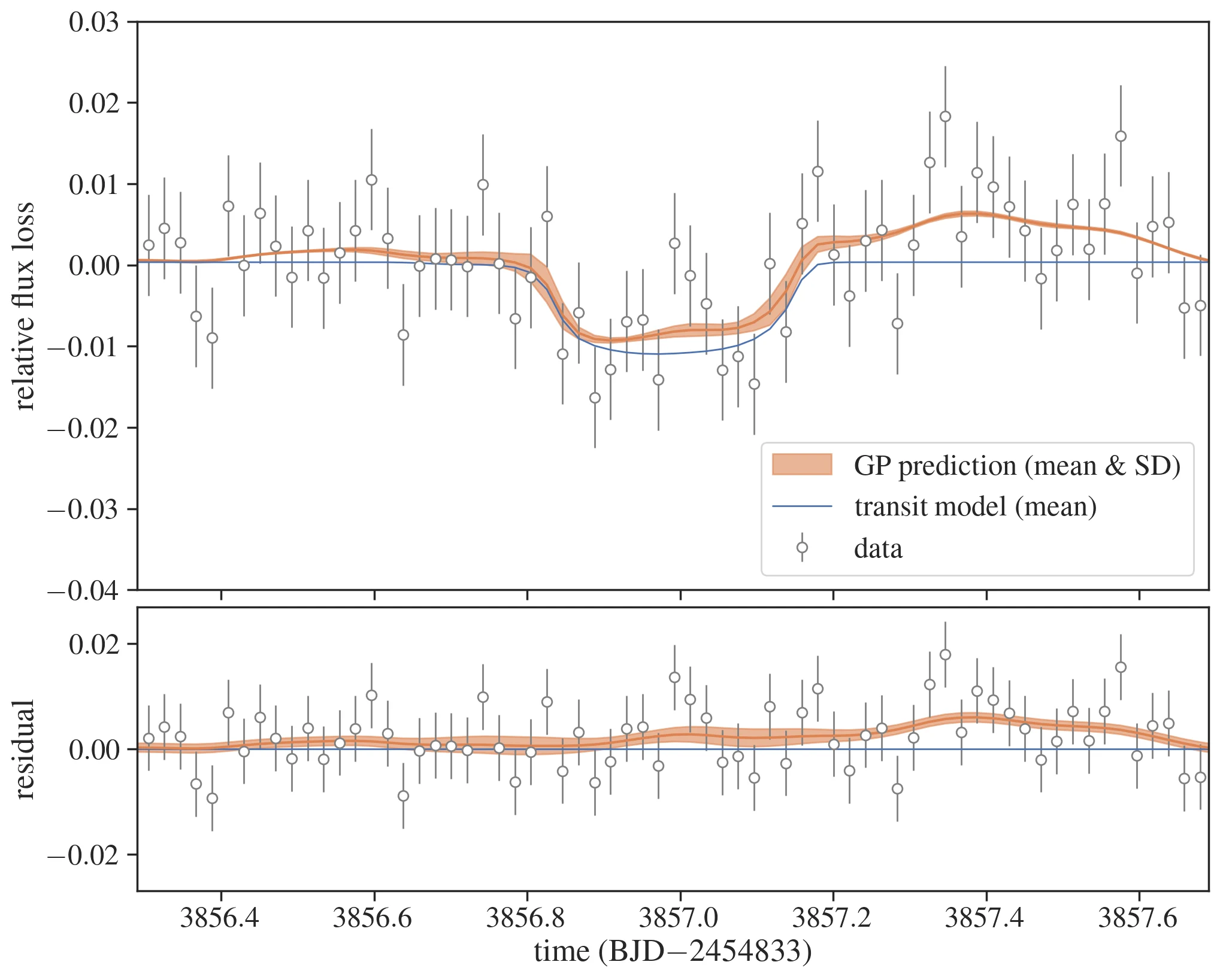

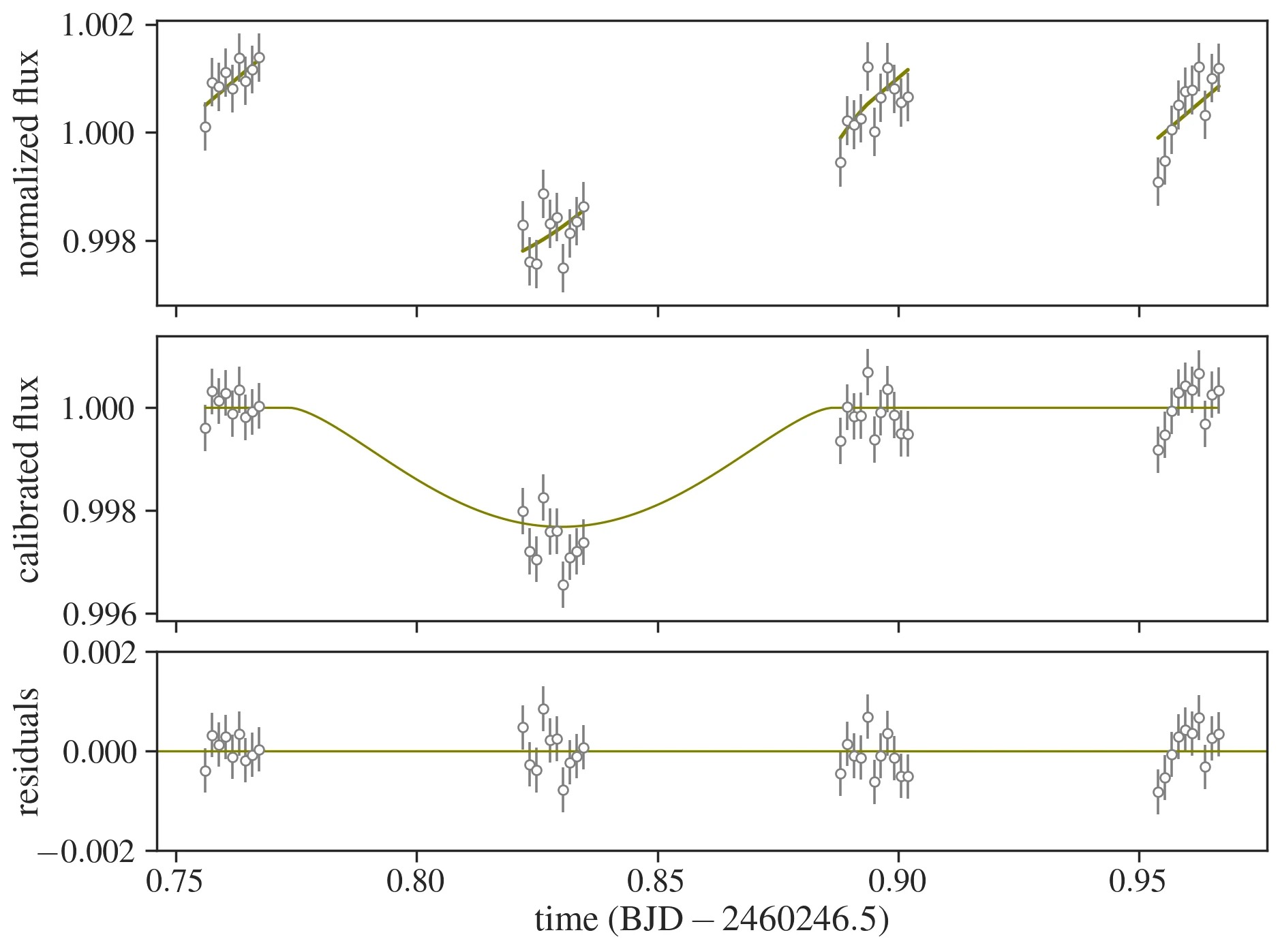

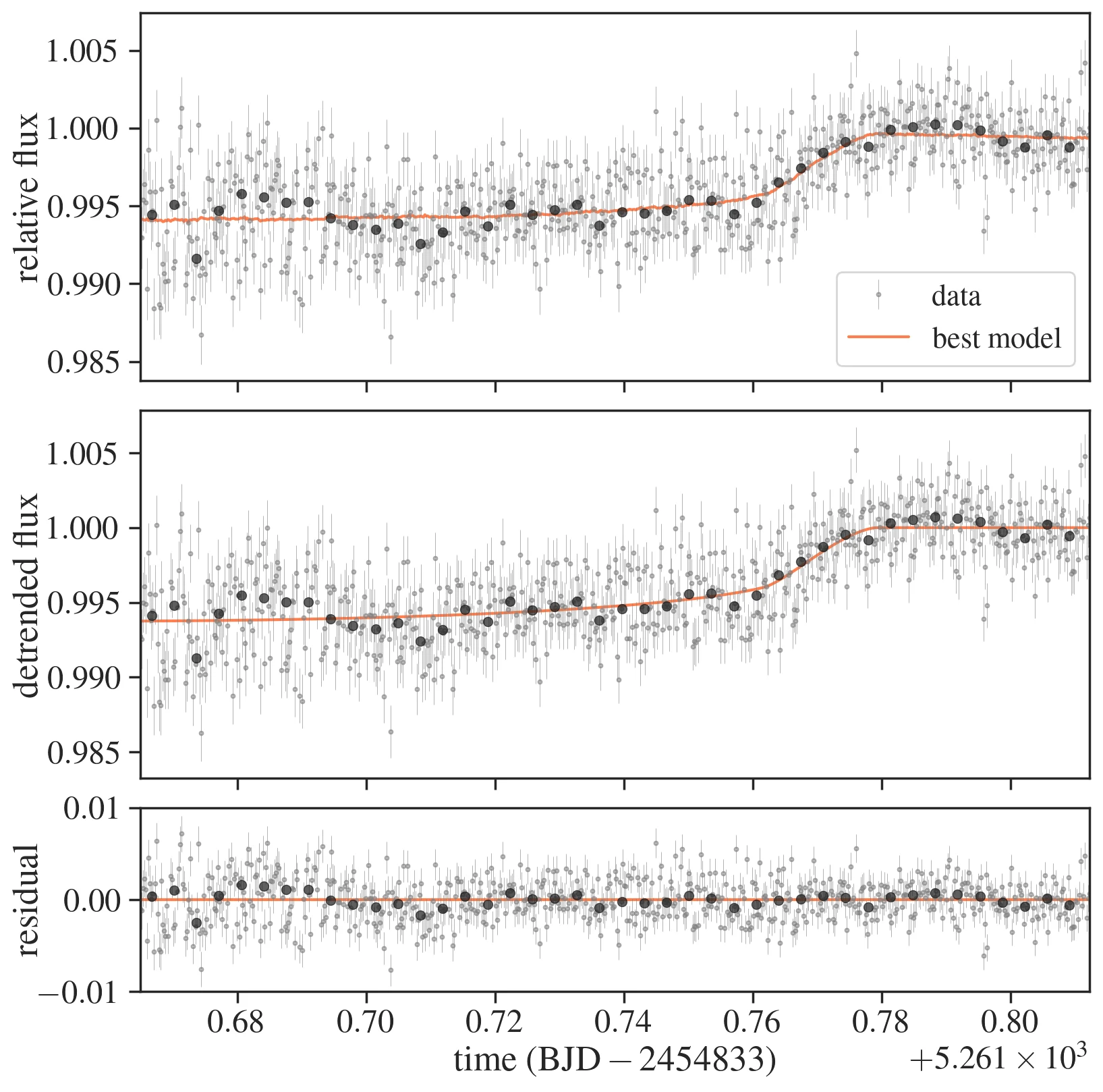

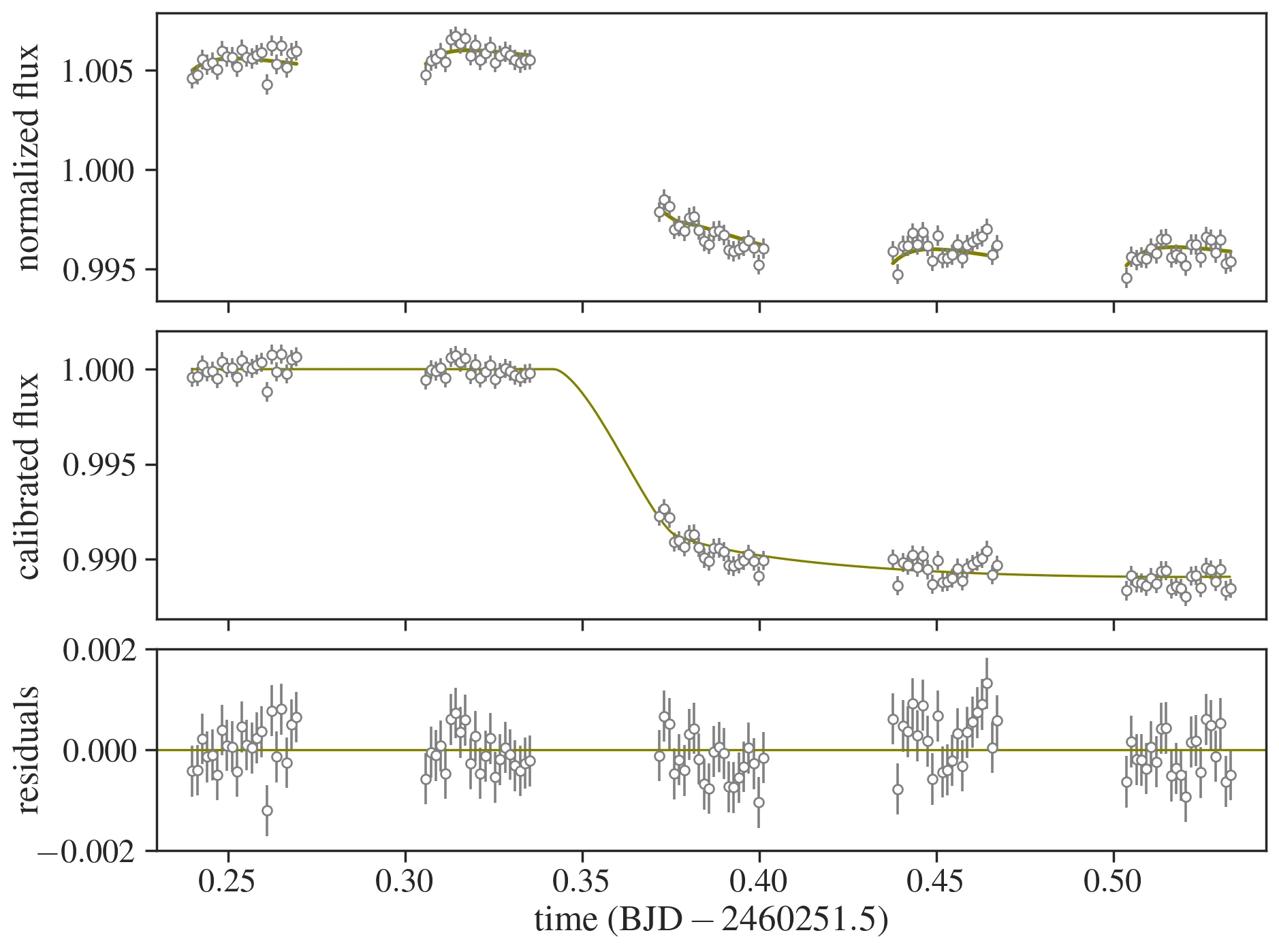

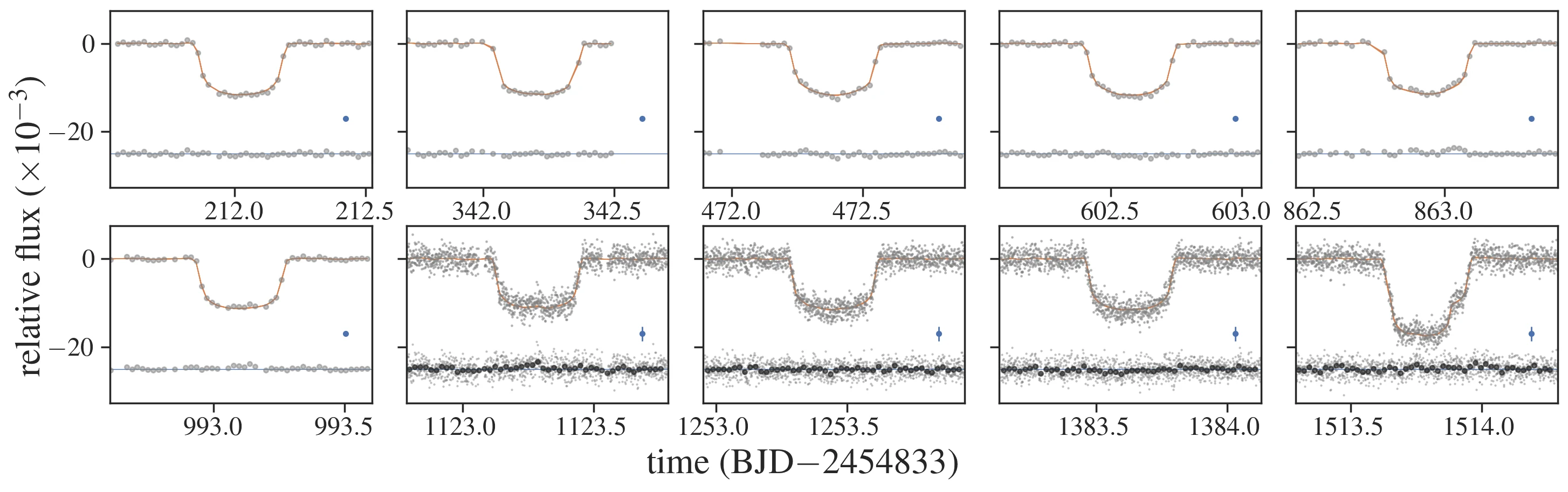

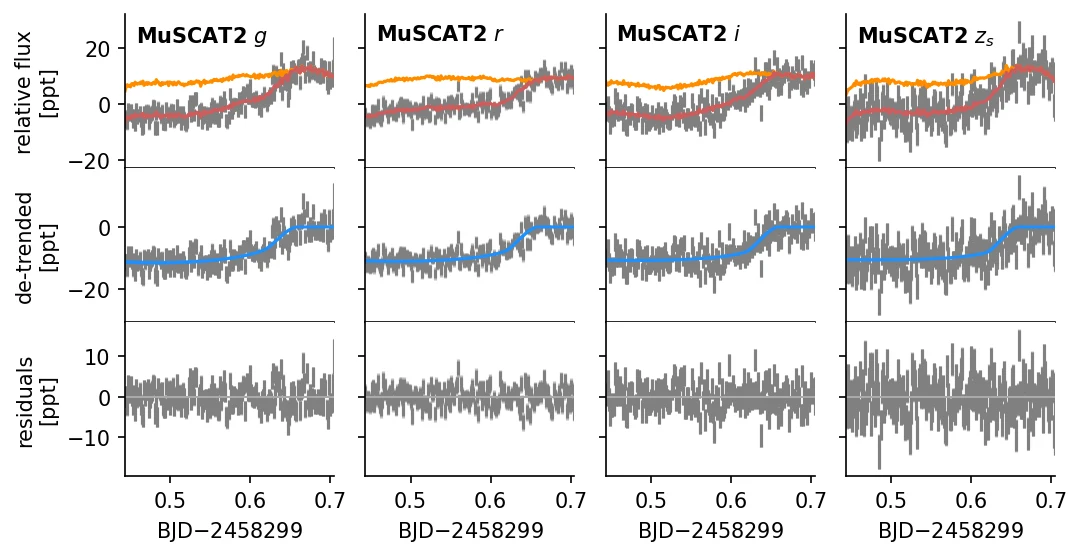

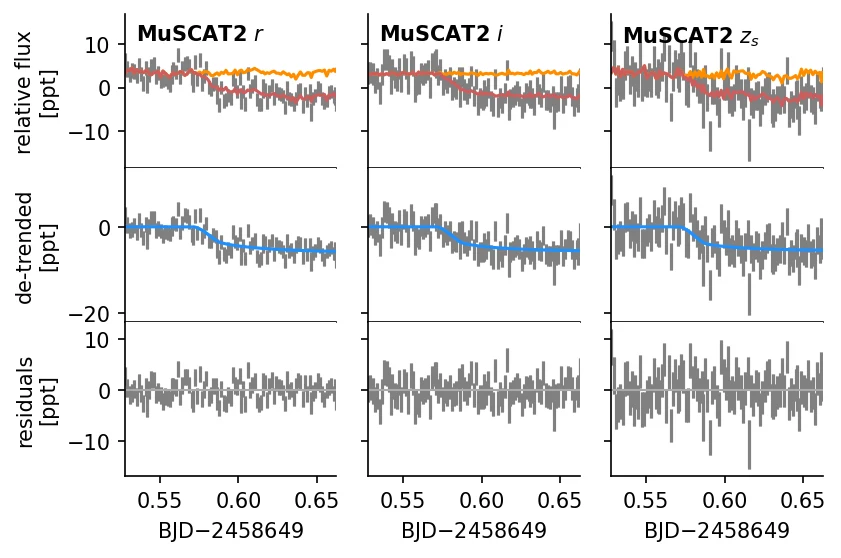

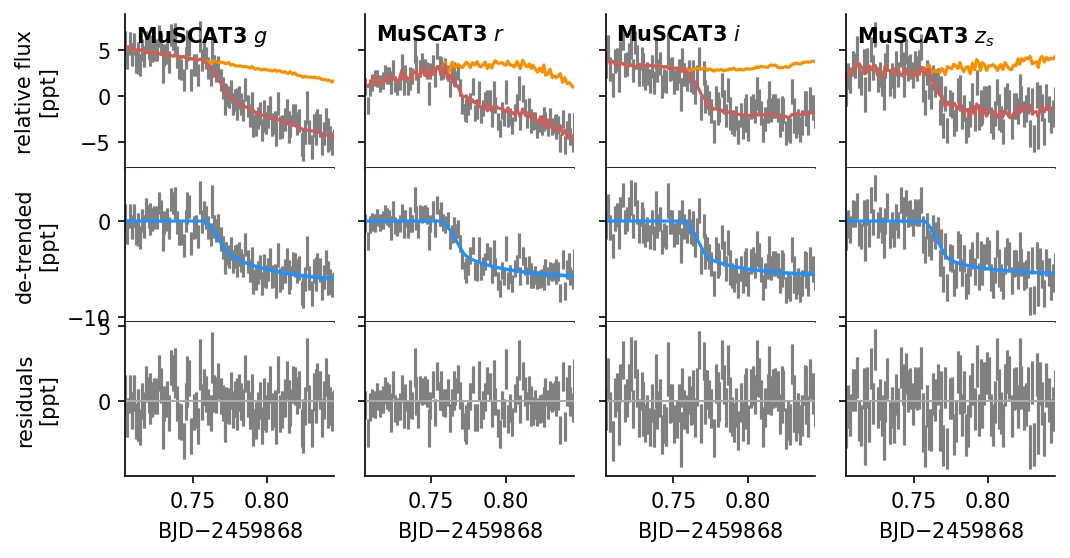

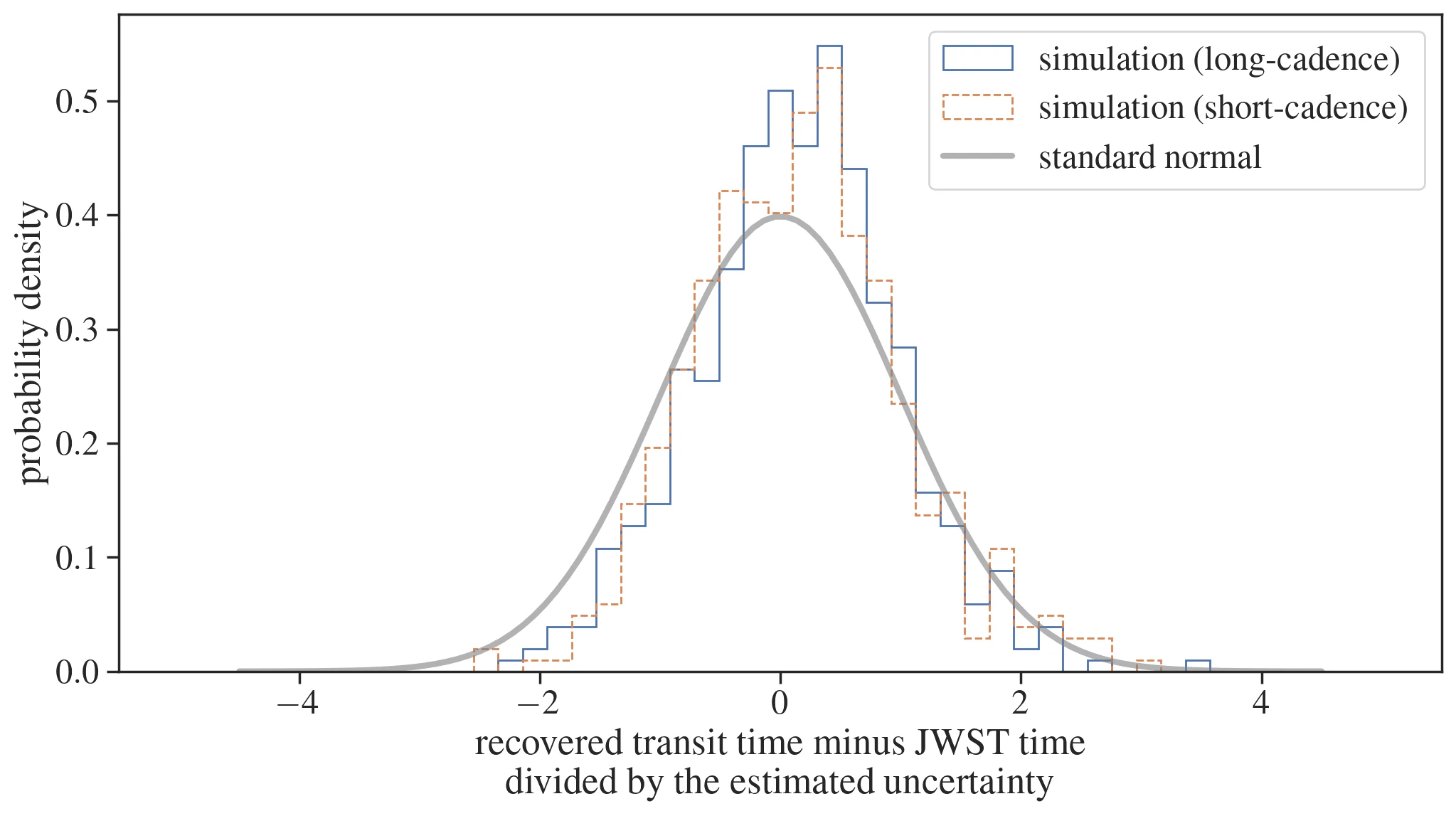

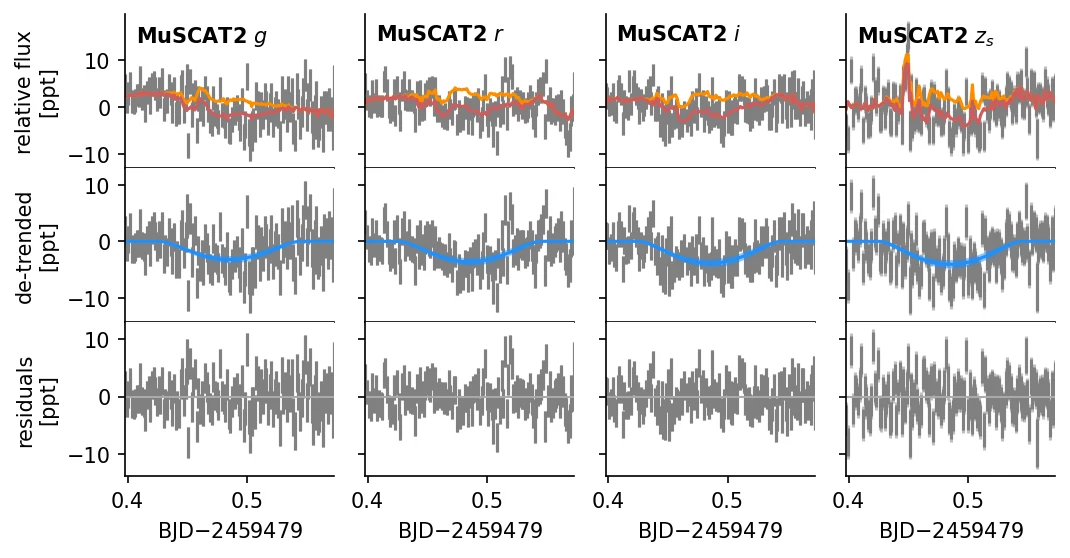

The researchers rounded up all available transit data spanning 14 years: photometry from Kepler and TESS, several sessions with Hubble, plus a crucial measurement from James Webb in spectroscopy mode, and ground-based observations. Exact mid-transit times were nailed down by fitting light curves while accounting for noise and starspots using Gaussian processes and numerical simulations of the transit shape. Then, they built a dynamical model of the system with N-body integration, grounded in the law of universal gravitation and Kepler's laws, to predict transit timing variations caused by the planets' mutual gravitational tugs. A pivotal contribution to TTV methods was made by Eric Agol.
Results

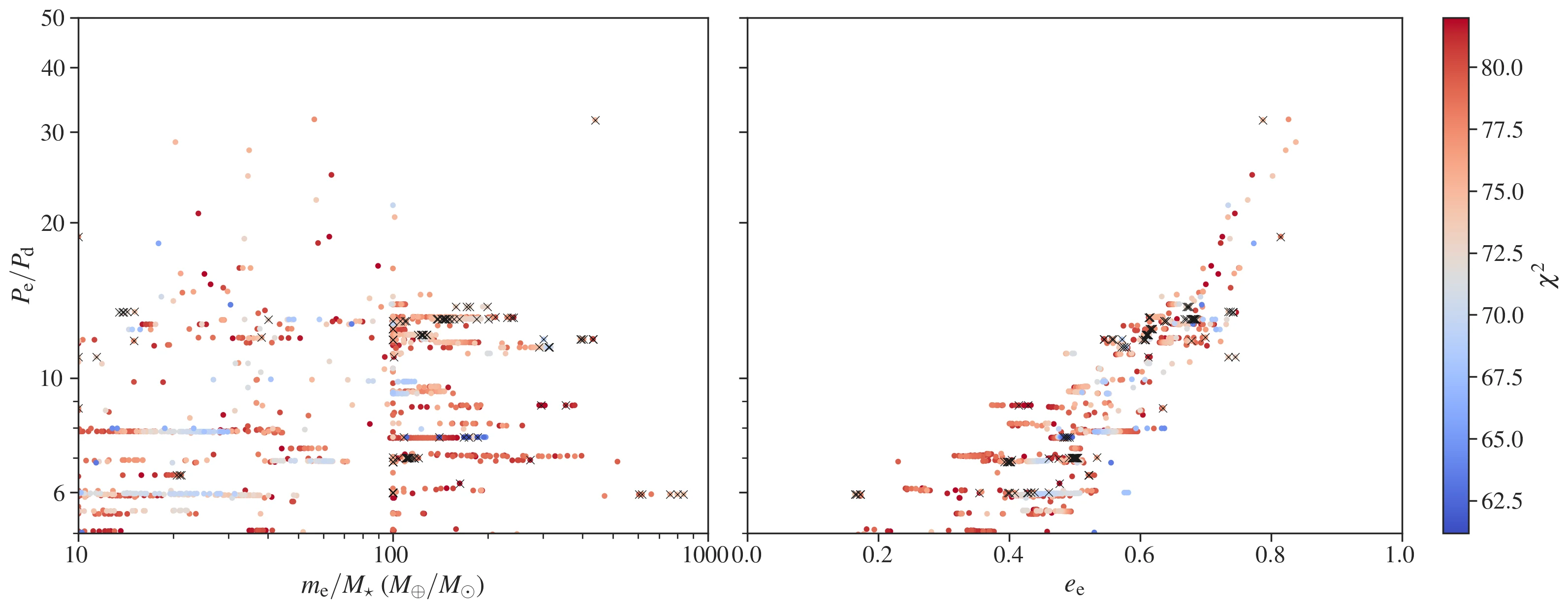

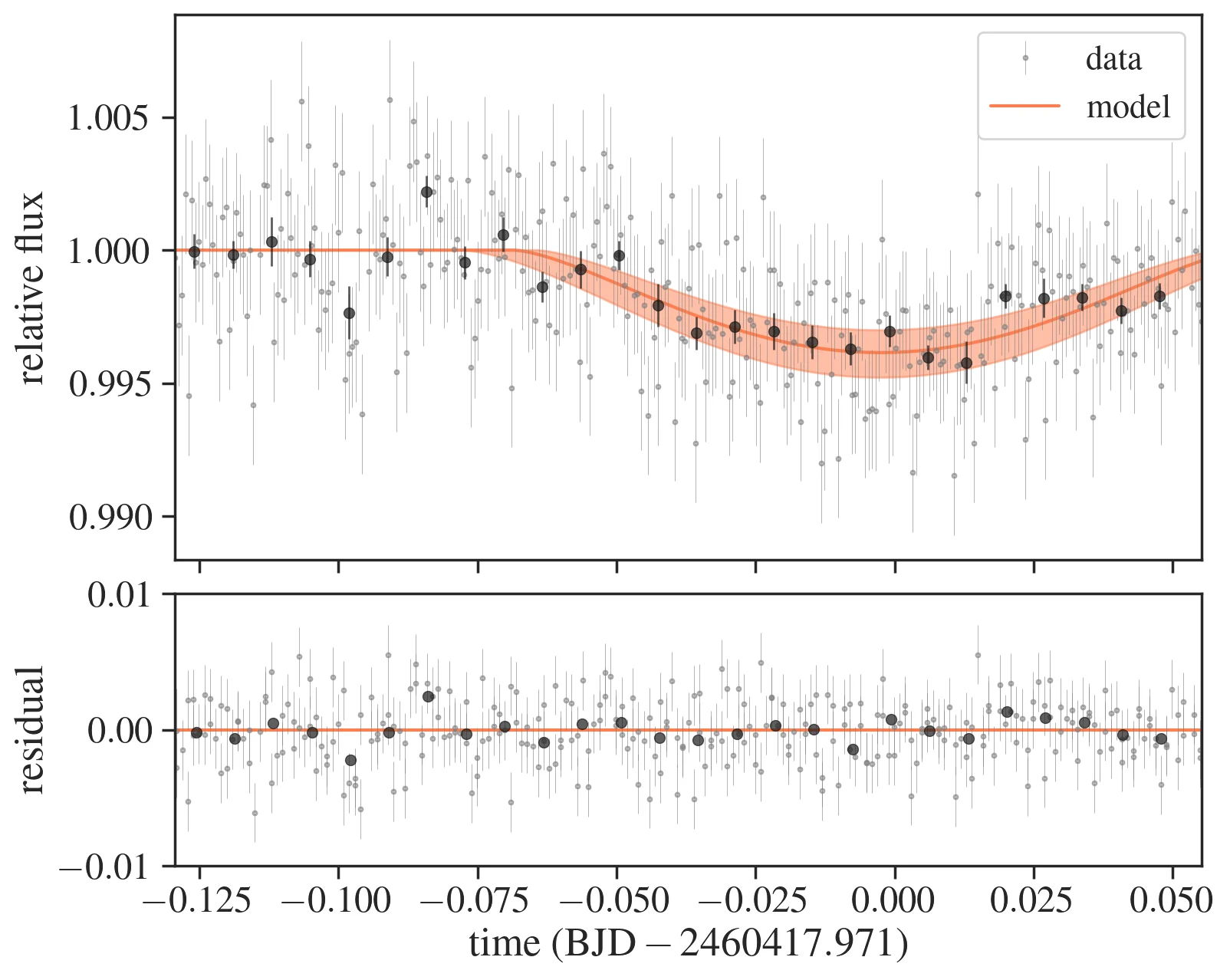

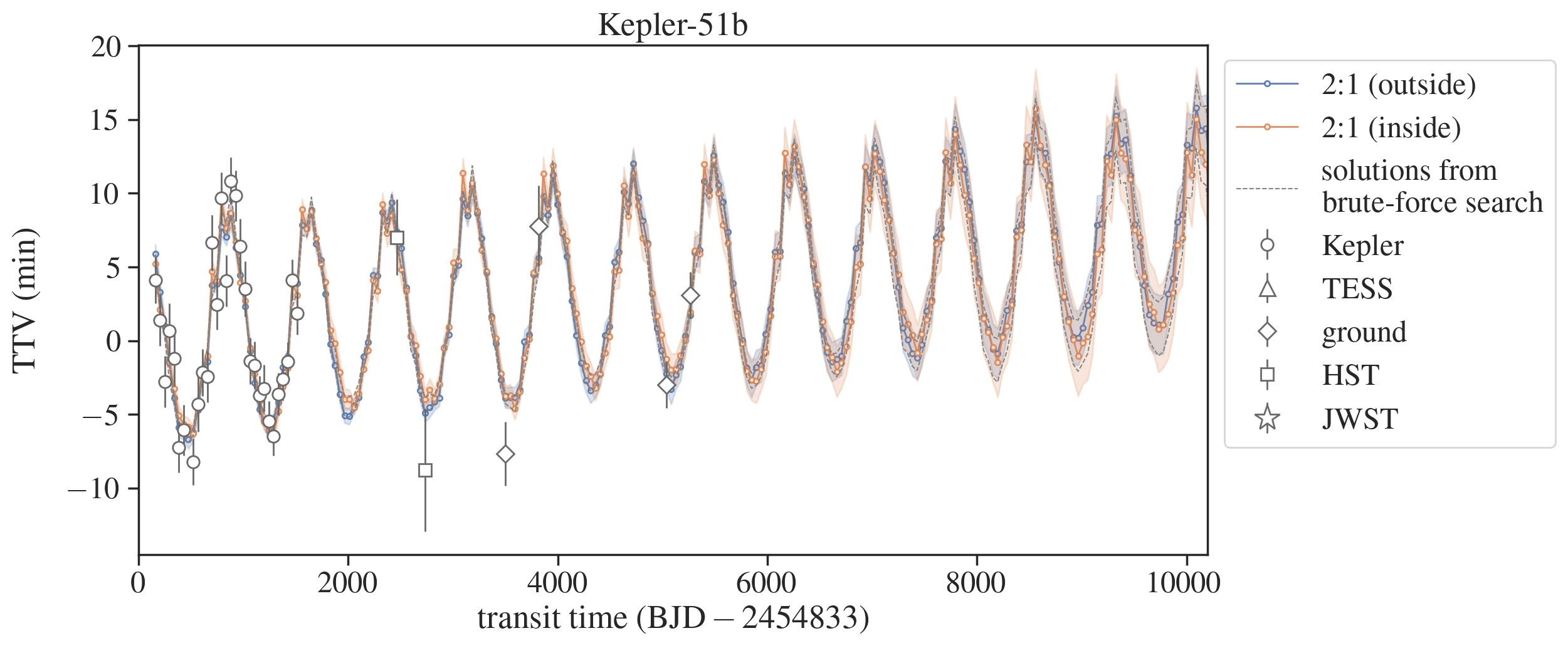

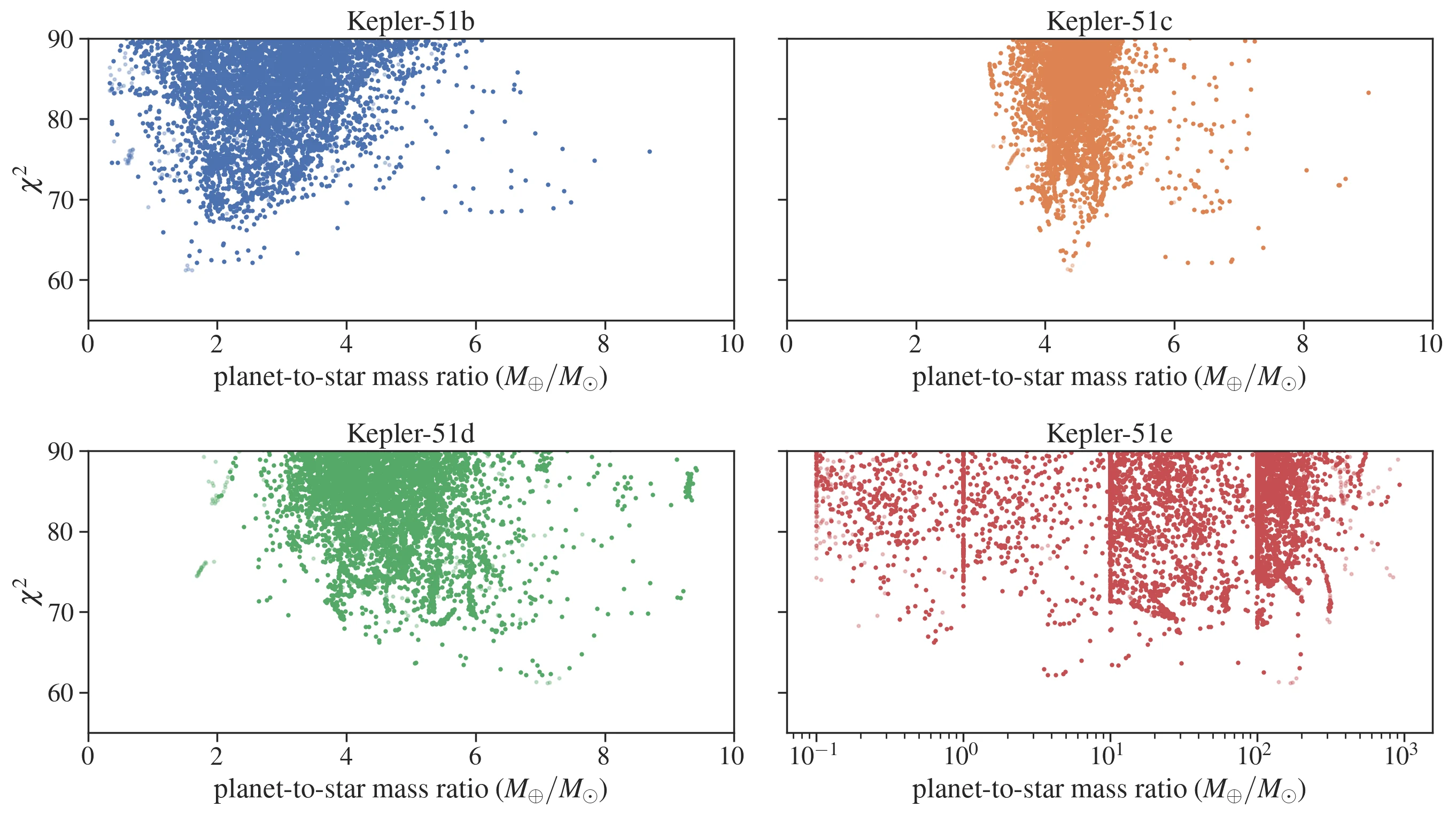

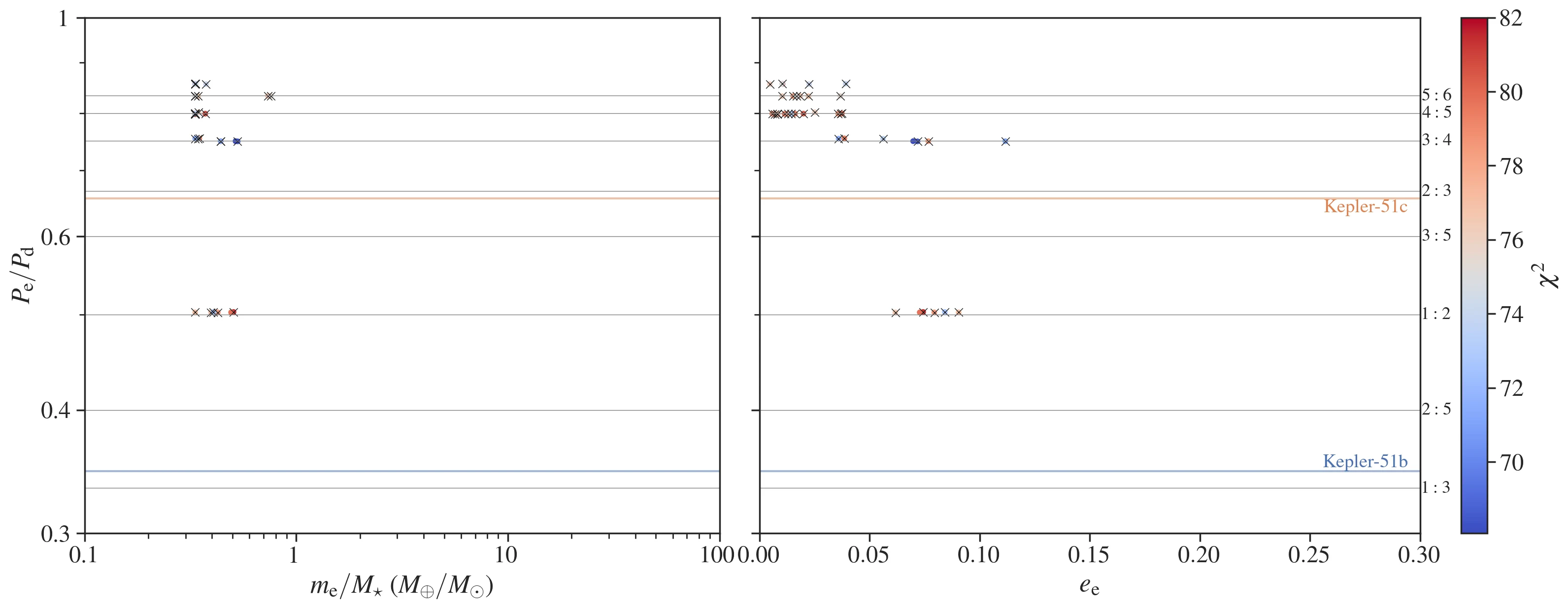

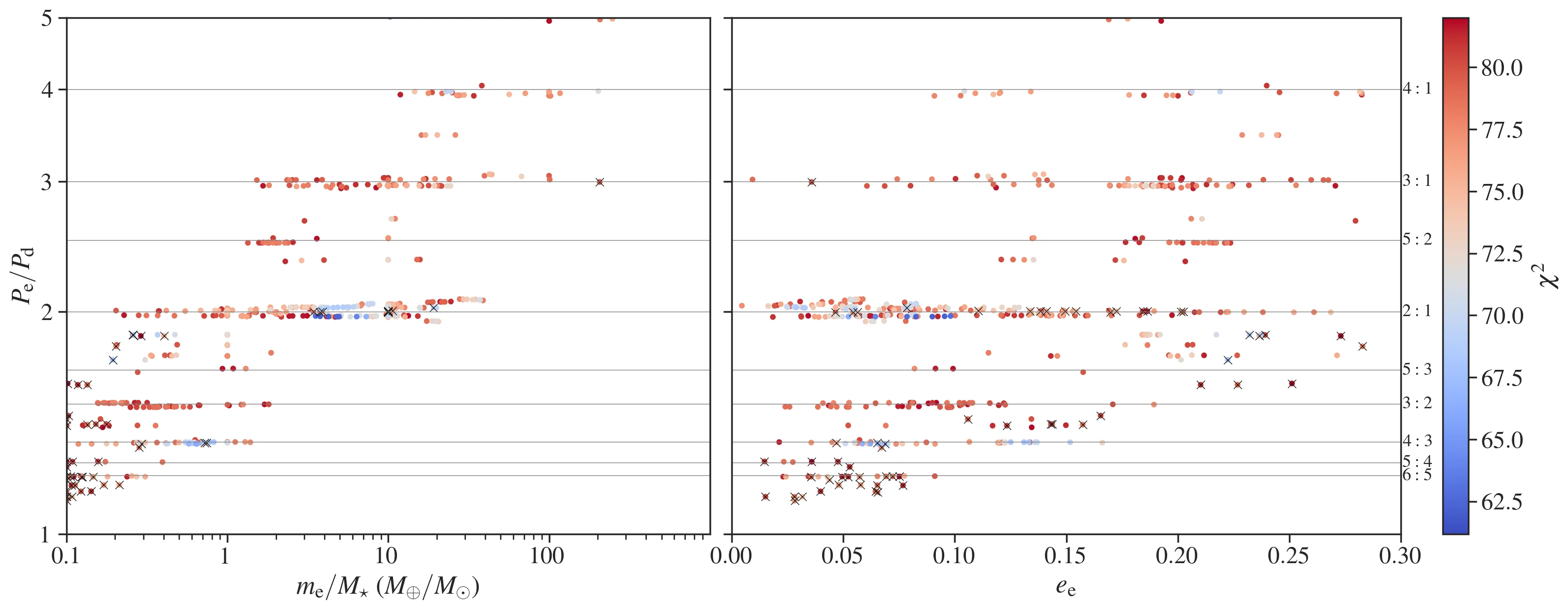

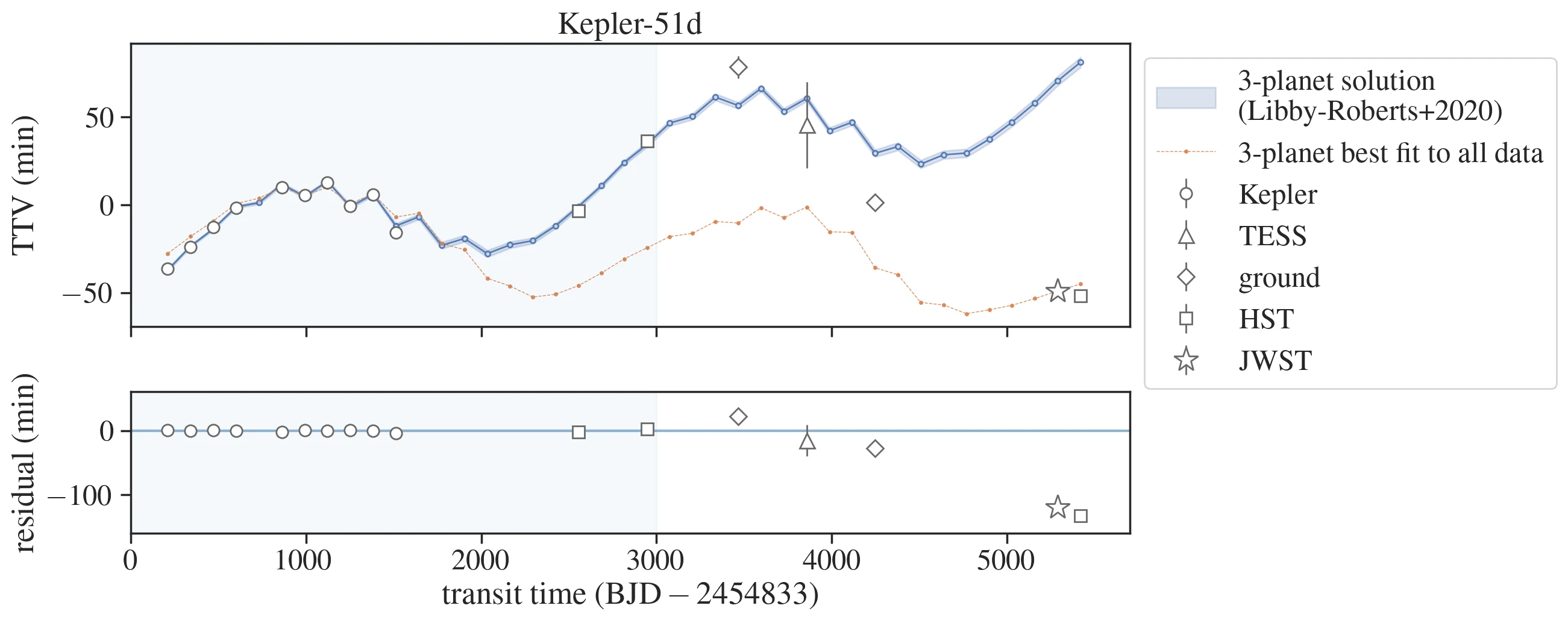

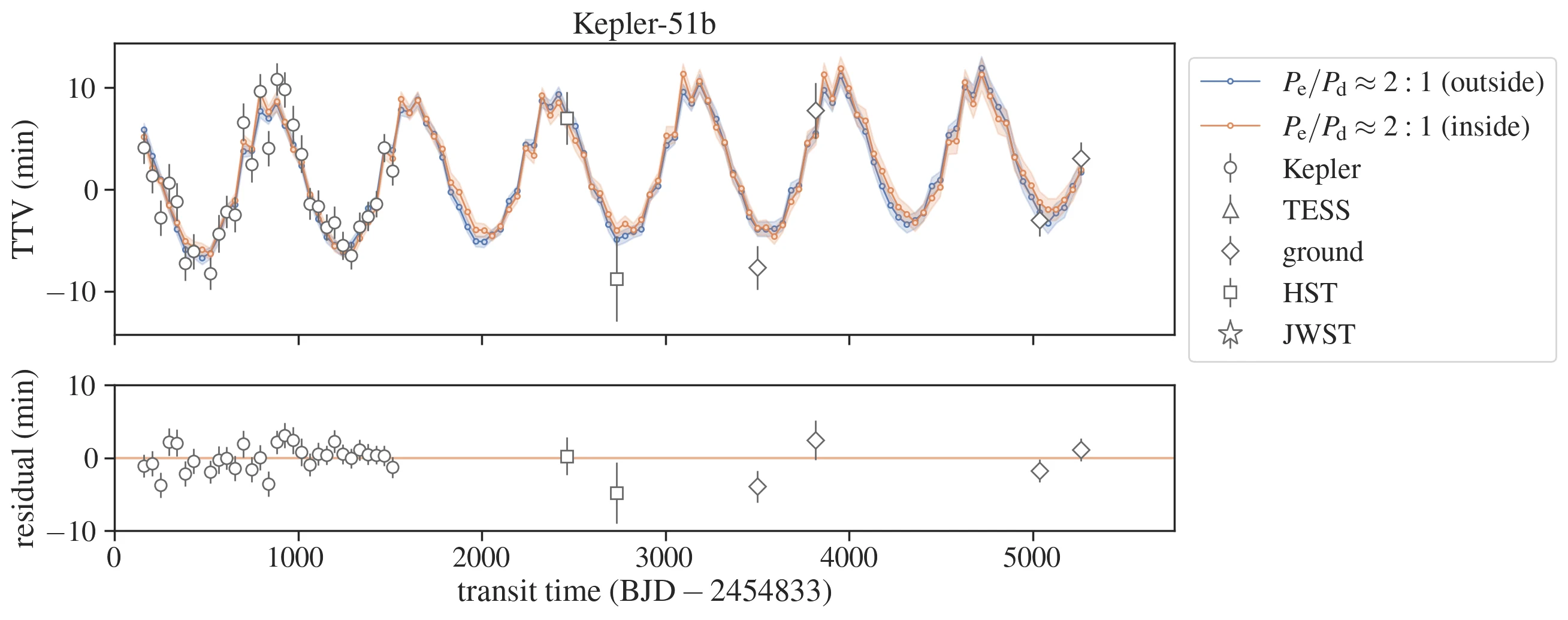

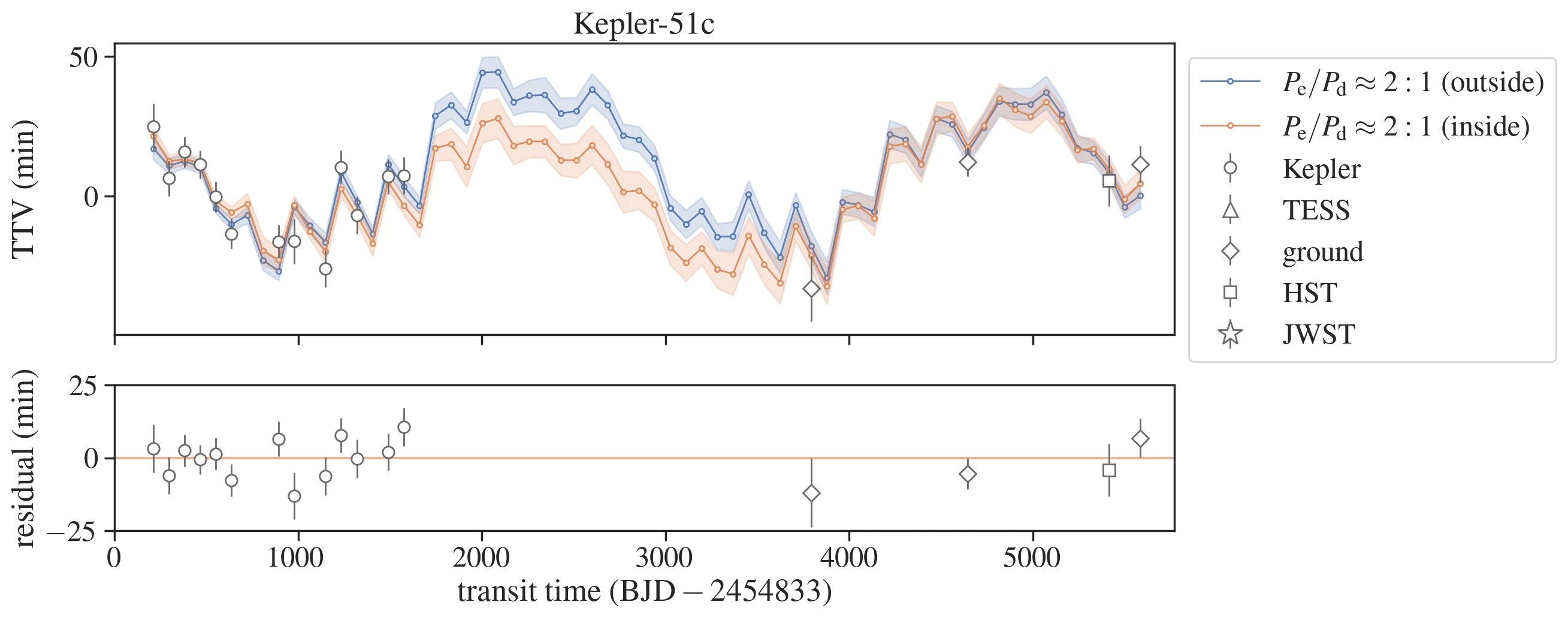

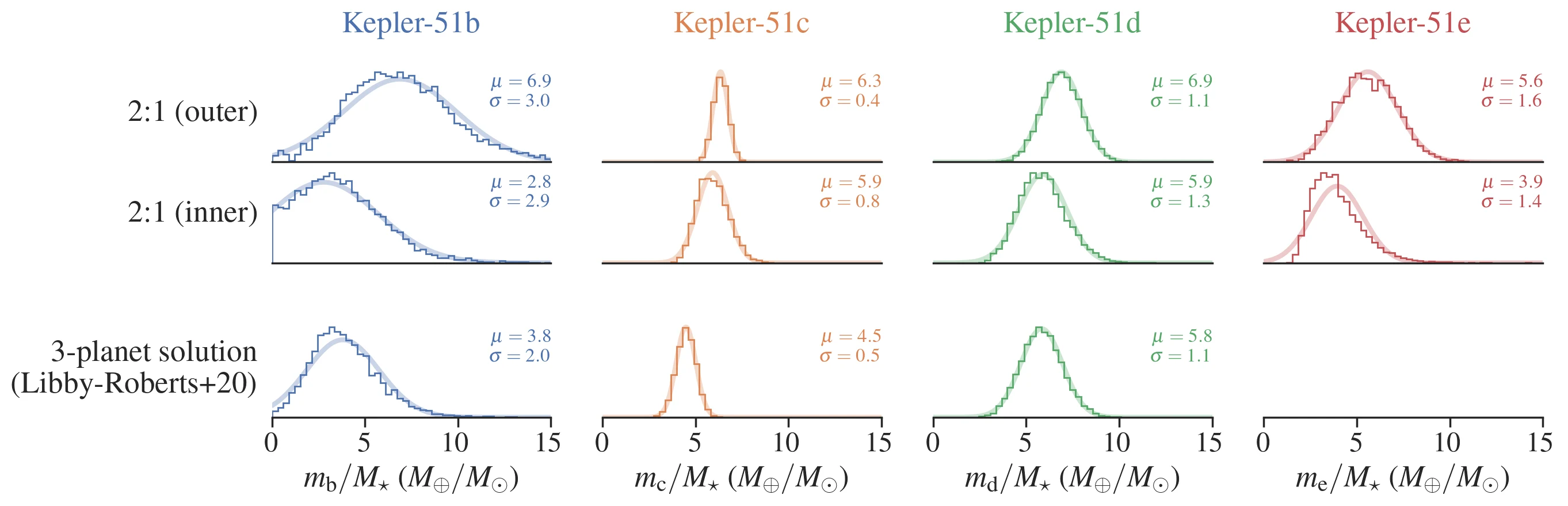

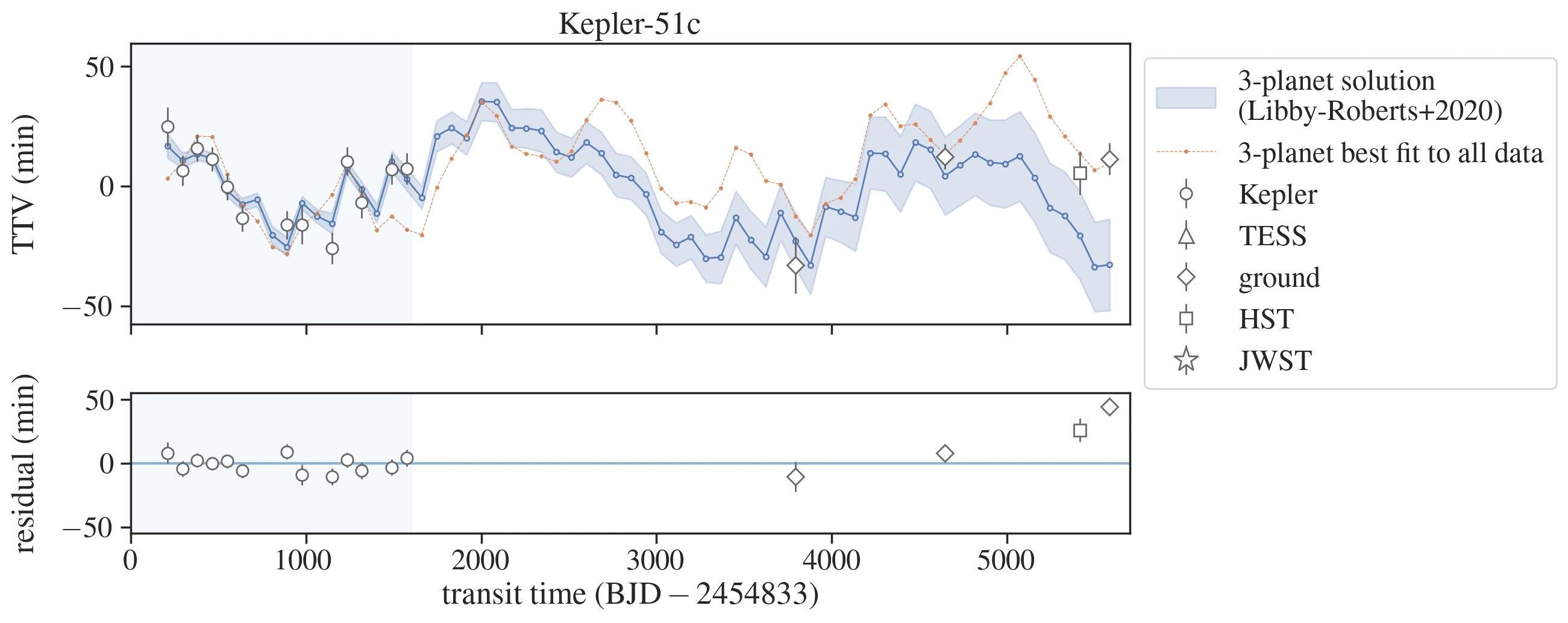

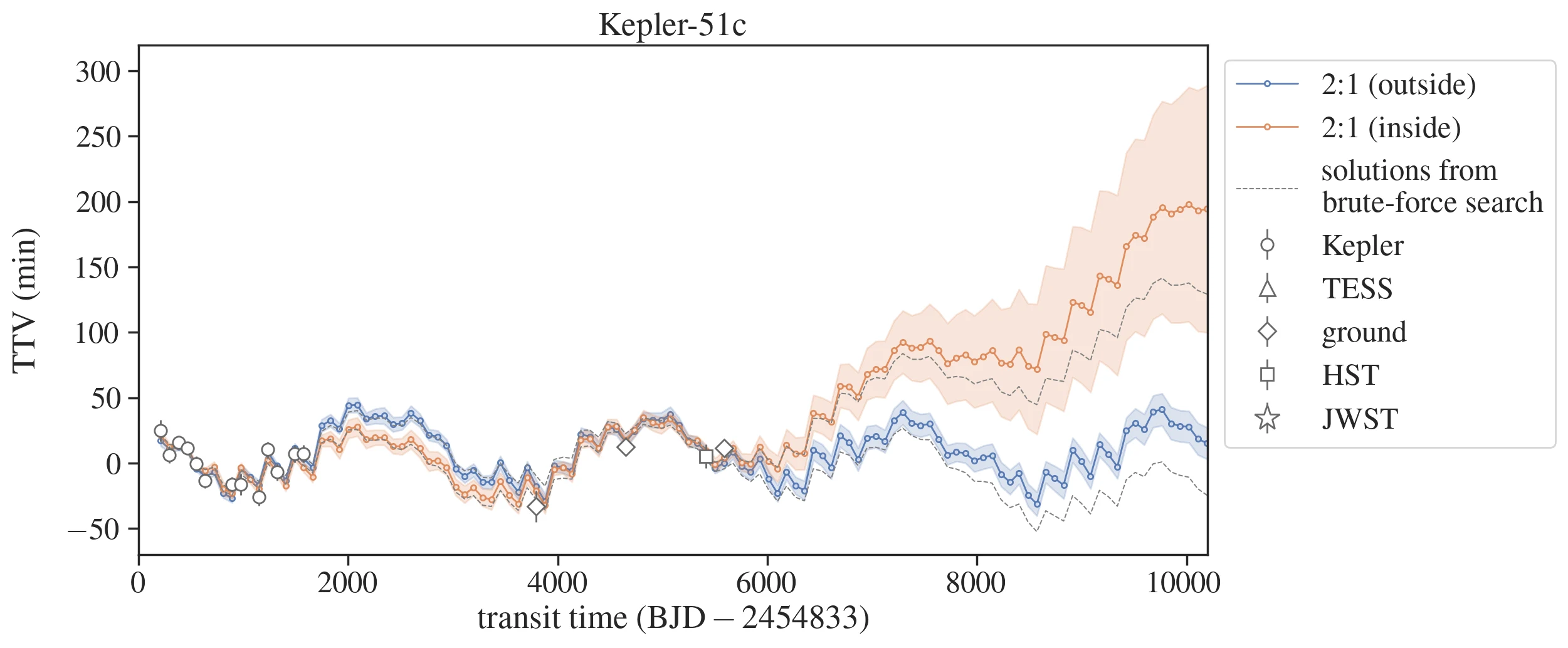

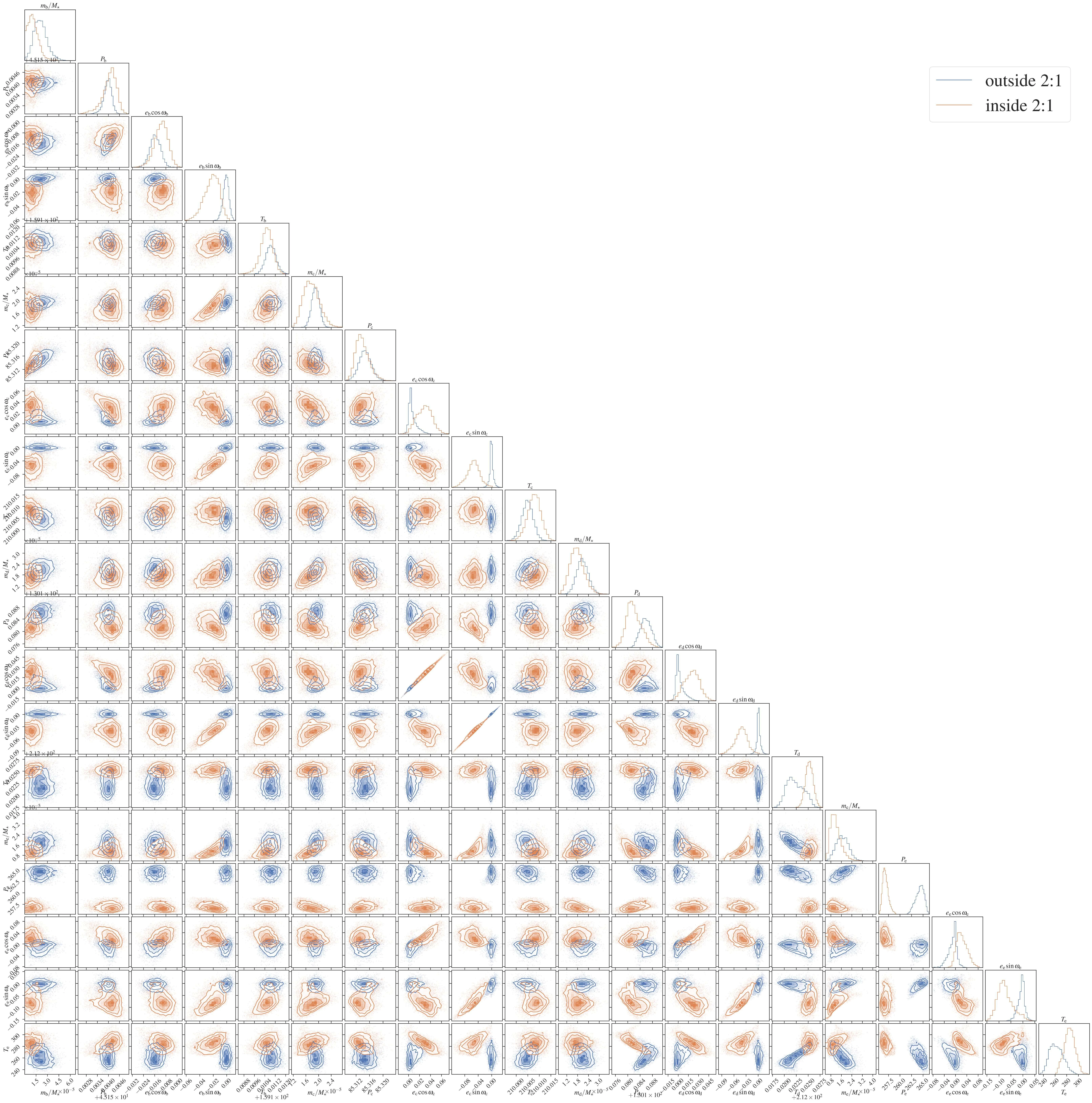

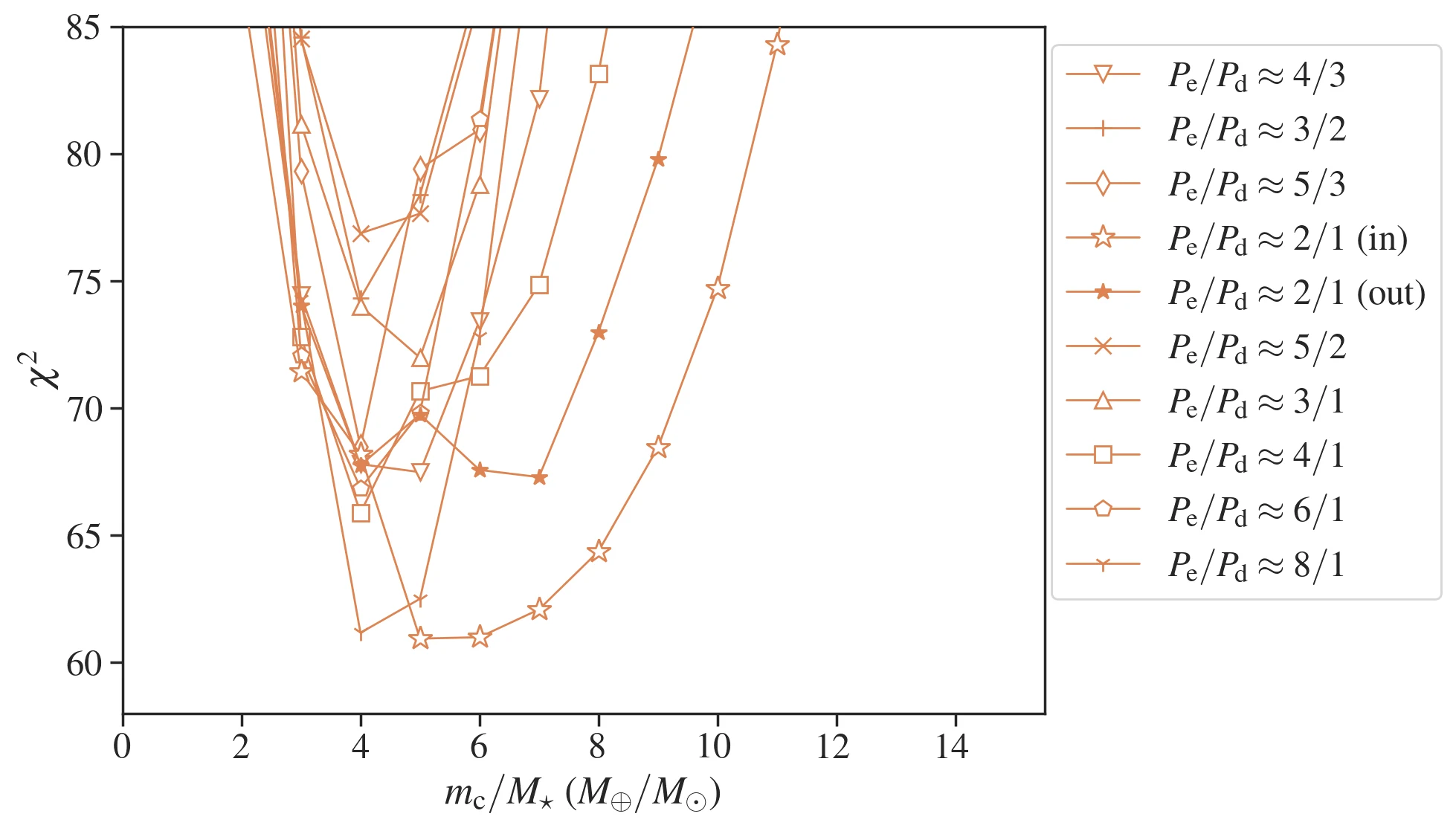

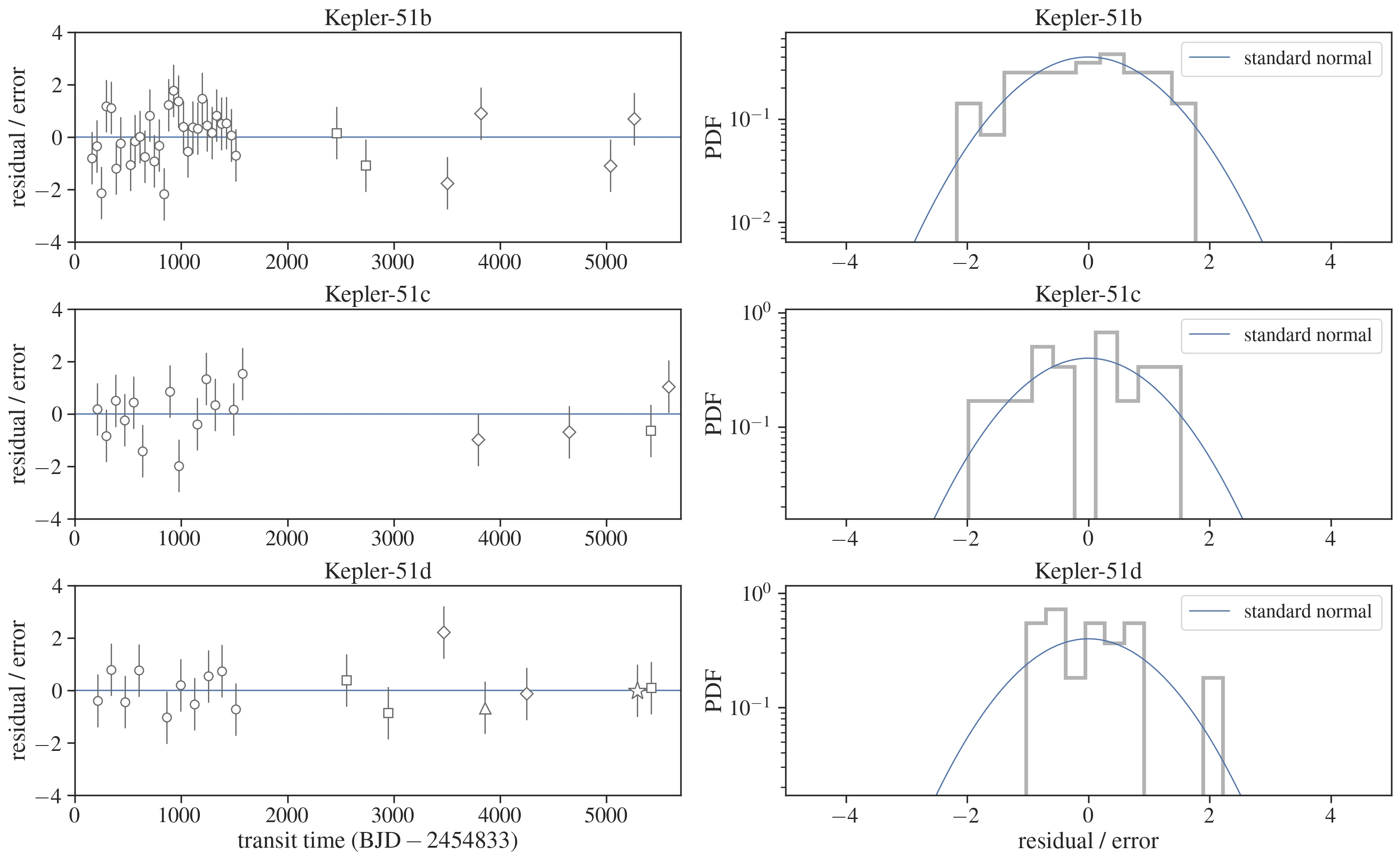

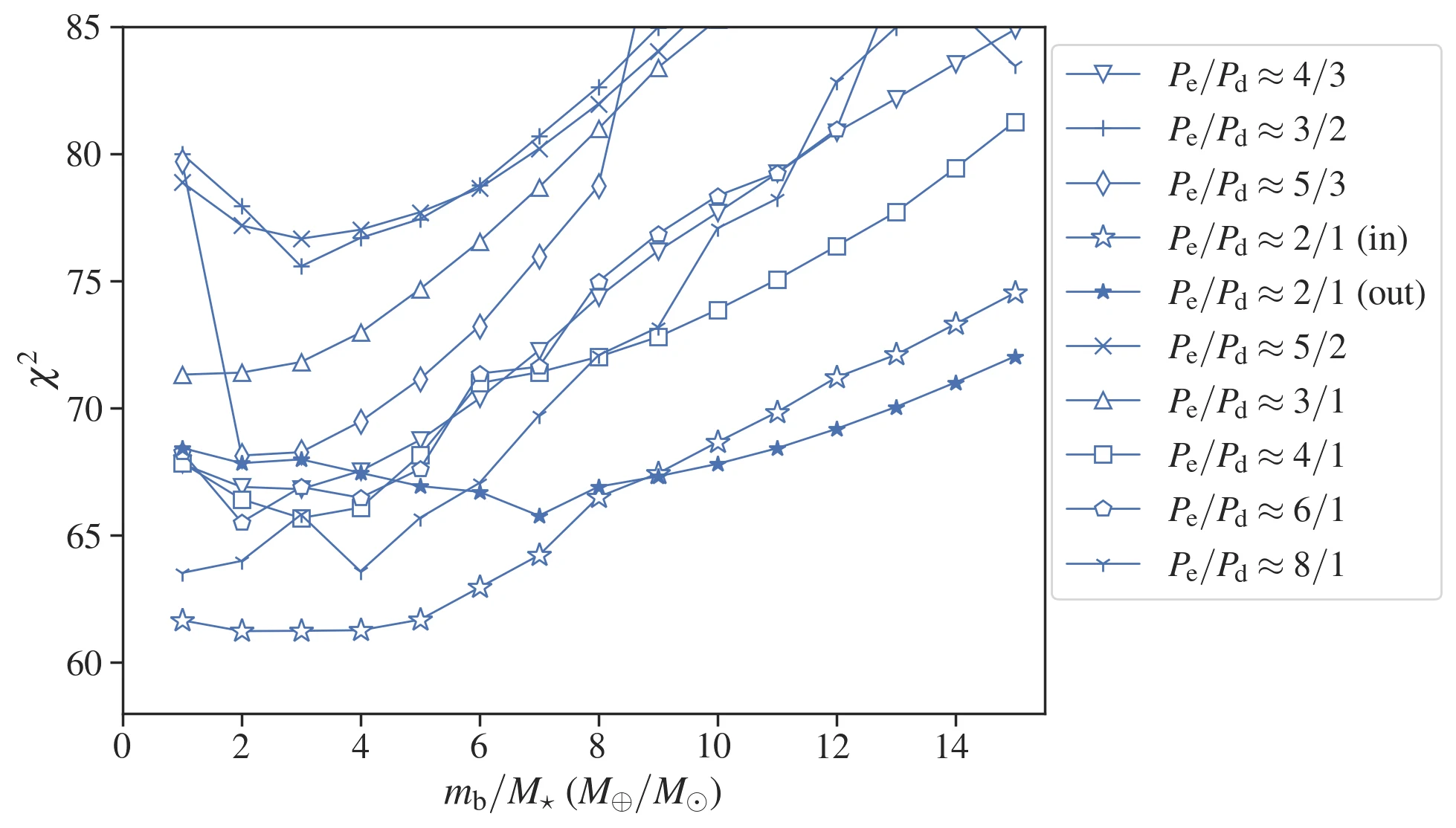

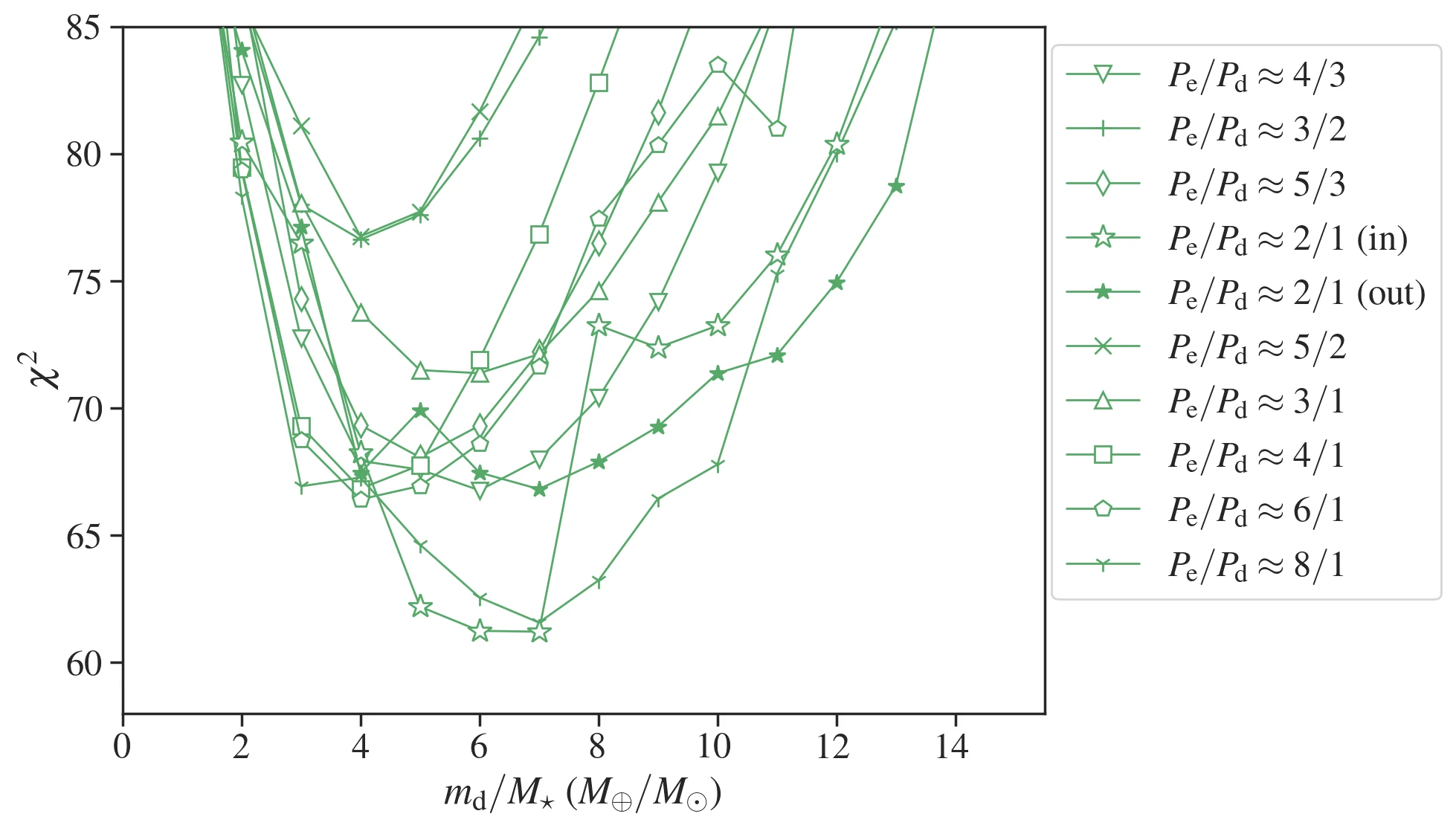

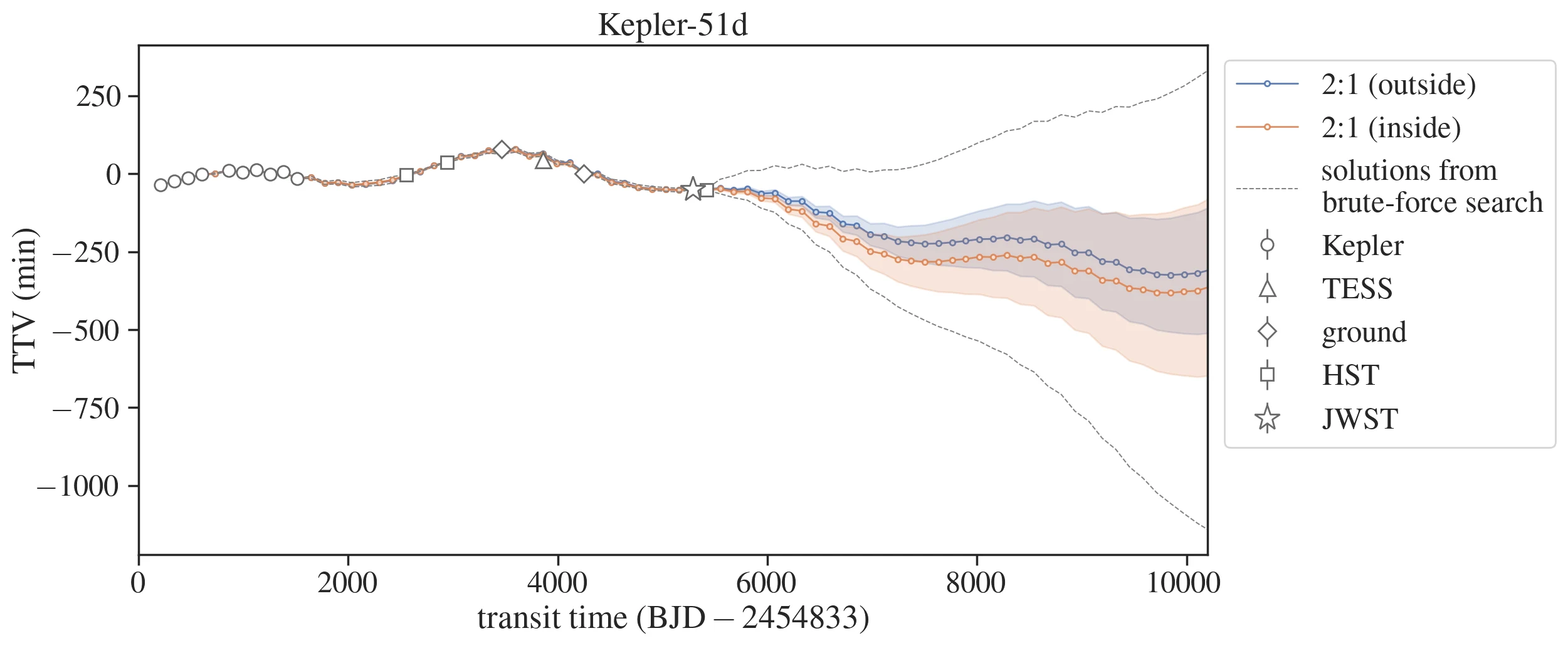

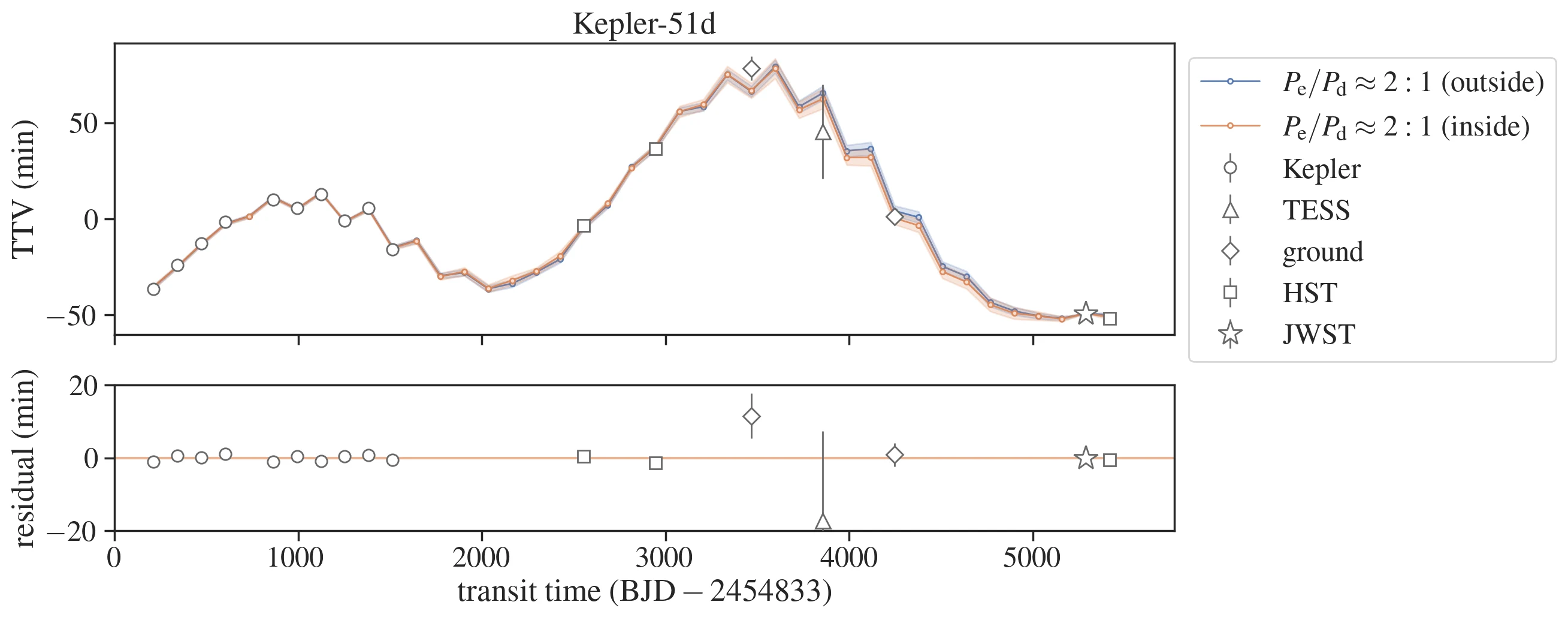

The transit of Kepler-51d, caught by JWST in 2023, happened two hours earlier than predicted by the three-planet model. The odds of a fluke are vanishingly small: the prediction's uncertainty was just 2.7 minutes. By adding a fourth planet to the model, all 70 measured transit times fell into line. This planet, dubbed Kepler-51e, isn't seen directly (its transits haven't been spotted), but its gravitational footprint shows up in the altered orbital dance of its neighbors. Analysis revealed that Kepler-51e could have a period anywhere from 260 to 6500 days and a mass ranging from a fraction of Earth's to Jupiter's. The most likely solution points to a period of about 260 days (a 2:1 resonance with planet d) and a mass around 5 Earths, on par with the inner planets.
Implications
The discovery shows that transiting planet systems don't just cut off at the last visible object. Kepler-51's architecture might follow a 'peas-in-a-pod' pattern—planets of similar size and mass in nearly circular orbits—extending beyond the transit zone. This matters for theories of planetary migration and the formation of compact multi-planet systems. For the inner 'super-puff' planets, masses stay low (<10 M⊕), though the upper limit for Kepler-51b has climbed, slightly easing tensions with models of atmospheric loss and internal heating.
Future development
Further transit monitoring, especially of planets c and d, will pin down Kepler-51e's orbit and mass and test the resonance hypothesis. Hunting for transit duration variations (TDV) could hint at mutual orbital tilts. Down the road, spectroscopy of planets b and d with JWST will unlock the makeup of their envelopes and help test ideas about dusty hazes or rings that might explain their low density.
Impact
The results will feed into the statistics of Kepler multi-planet systems and our grasp of how common they really are. TTV once again proves its worth for spotting non-transiting planets.
Next steps
The plan is to keep up regular transit observations of Kepler-51b, c, and d with ground-based telescopes and space observatories to build up a time series and firmly nail down Kepler-51e's parameters. Attempts to measure radial velocities are also needed, though the star's mass and activity make that a tall order.
Key open problems
The discovery touches on unsolved puzzles of how planets with extremely low density form and evolve. How do planets with just a few Earth masses hold onto extended atmospheres under intense irradiation? The link to hypotheses about atmospheric evolution and tidal heating remains hotly debated.
The knowledge machine's view
This section is addressed to the author of the paper and their colleagues. Neighbouring works were found by meaning-based search across our archive, not by word overlap. We do not review: we show the field around the work.
What the work does
The study compiles 14 years of transit data for three planets in the Kepler-51 system, including a decisive JWST measurement. A two-hour deviation in the transit timing of Kepler-51d was detected, leading to the discovery of a fourth, unseen planet, Kepler-51e, through dynamical N-body modeling.
Where its strength is
It demonstrates the possibility of detecting non-transiting planets via ultra-precise TTVs, relying on a long temporal baseline and JWST data. This expands the system's architecture beyond visible objects, confirming the 'peas in a pod' rule.
Where it could go next
- A related work on gravitational detection of cold giants via astrometry and radial velocities is nearby — perhaps a similar approach could refine the mass and orbit of Kepler-51e, especially for outer solutions with long periods.based on: Cosmic Drops: How Gravity Revealed Four New Cold Giants arXiv:2607.04594v1
- There is an example in the archive of using JWST to search for objects invisible in direct observations — one could consider attempting direct detection or ruling out transits of Kepler-51e using coronagraphy or high-contrast modes.based on: James Webb Fishes Out an Invisible Planet from a Dusty Disk arXiv:2606.23789
- It would be interesting to compare with work on atmospheric loss from water worlds: the low densities of Kepler-51b-d may be linked to atmospheric evolution, helping to understand how super-puff planets retain their envelopes in the presence of a massive outer companion.based on: A Waterfall of Planets: The Mystery of the Vanishing Water Worlds arXiv:2602.11923
Worth trying
- Test whether constraints can be placed on the orbital inclination of Kepler-51e from the absence of transits, using TESS and JWST photometry.
- Consider the possibility of a resonant configuration of Kepler-51e with the inner planets, similar to resonance chains in other compact systems.
- Assess how the presence of Kepler-51e affects estimates of mass loss from the inner planets due to stellar radiation.
Why this may matter
The discovery of an unseen planet in a known system changes our understanding of how complete our knowledge is even for well-studied transiting systems. It may point to hidden architectural diversity and affect statistics on the population of outer regions of planetary systems.
Nearby works in our archive
- James Webb Fishes Out an Invisible Planet from a Dusty Disksimilarity 0.63
- Shadow or Mirage: Hunting a Moon Around a Scorching Jupitersimilarity 0.63
- Atmosphere found on a small icy body beyond Neptunesimilarity 0.61
- A Waterfall of Planets: The Mystery of the Vanishing Water Worldssimilarity 0.61
- Earth's Shadow Hunts for Alien Probessimilarity 0.60
- Seven Stars from One Doughsimilarity 0.60
- Cosmic Drops: How Gravity Revealed Four New Cold Giantssimilarity 0.60
The closest work in the archive sits at 0.63 by meaning — the usual level for our corpus.
Original abstract
as written by the authors arXiv:2410.01625
Kepler-51 is a $$\lesssim 1\,\mathrm{Gyr}$$-old Sun-like star hosting three transiting planets with radii $$\approx 6$$-$$9\,R_\oplus$$ and orbital periods $$\approx 45$$-$$130\,\mathrm{days}$$. Transit timing variations (TTVs) measured with past Kepler and Hubble Space Telescope (HST) observations have been successfully modeled by considering gravitational interactions between the three transiting planets, yielding low masses and low mean densities ($$\lesssim 0.1\,\mathrm{g/cm^3}$$) for all three planets. However, the transit time of the outermost transiting planet Kepler-51d recently measured by the James Webb Space Telescope (JWST) 10 years after the Kepler observations is significantly discrepant from the prediction made by the three-planet TTV model, which we confirmed with ground-based and follow-up HST observations. We show that the departure from the three-planet model is explained by including a fourth outer planet, Kepler-51e, in the TTV model. A wide range of masses ($$\lesssim M_\mathrm{Jup}$$) and orbital periods ($$\lesssim 10\,\mathrm{yr}$$) are possible for Kepler-51e. Nevertheless, all the coplanar solutions found from our brute-force search imply masses $$\lesssim 10\,M_\oplus$$ for the inner transiting planets. Thus their densities remain low, though with larger uncertainties than previously estimated. Unlike other possible solutions, the one in which Kepler-51e is around the $$2:1$$ mean motion resonance with Kepler-51d implies low orbital eccentricities ($$\lesssim 0.05$$) and comparable masses ($$\sim 5\,M_\oplus$$) for all four planets, as is seen in other compact multi-planet systems. This work demonstrates the importance of long-term follow-up of TTV systems for probing longer period planets in a system.

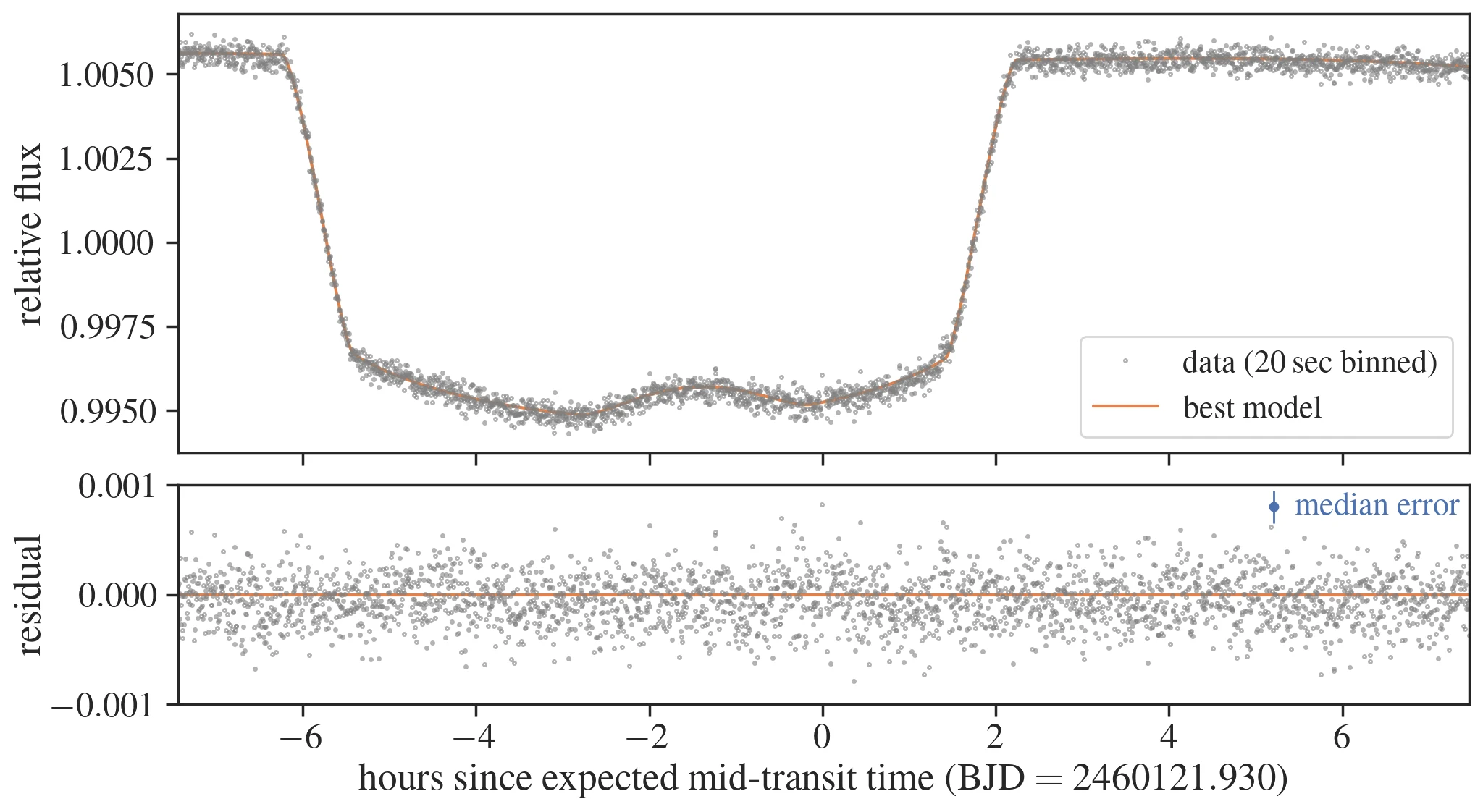

The James Webb Space Telescope accidentally discovered a new exoplanet when, instead of an on-time transit, it caught a two-hour 'delay'—a record-breaking mismatch for such a well-studied system. The star Kepler-51 is so young and feisty that a giant sunspot marched across its disk during JWST's watch, yet it didn't spoil the precision measurements.
Key numbers
- Period of Kepler-51d: 130 days
- Period of Kepler-51e (assumed): ~260 days
- Density of planets: ~0.1 g/cm³
- Masses of planets: ≤10 M⊕
- Transit timing deviation: 120 minutes
